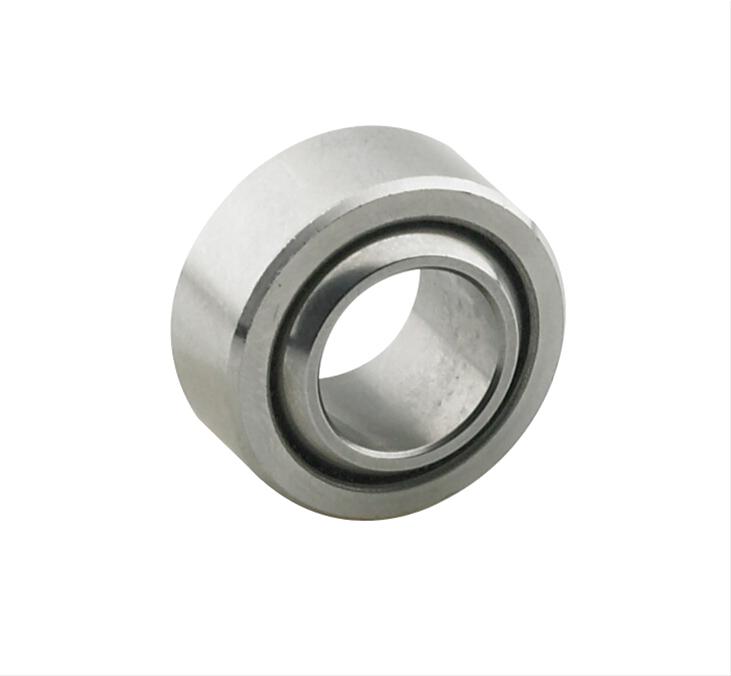

FK AIN Heavy-Duty Precision Series spherical bearings are designed to provide smooth movement, even under heavy loads. These strong, spherical bearing races are heat-treated alloy steel that houses a 52100 hard chrome plated ball. Lubrication grooves and holes in the race or optional PTFE lining limit binding under heavy loads, increasing strength. When loads are high, trust FK AIN Heavy-Duty Precision Series spherical bearings.Brand: FK Rod Ends
Manufacturer's Part Number: AIN3
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
HP Direct Part Number: FKB-AIN3
UPC: 800200390303
Receiver Race Diameter: 0.5312 in.
Race Width: 0.250 in.
Inner Ball Width: 0.312 in.
Inner Ball Diameter: 0.4370 in.
Chamfer Reference: 0.020 in.
Rod End Misalign Angle: 10.5 degrees
ULT. Static Radial Load (lbs.): 6,550 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Manufacturer's Part Number: AIN3
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
HP Direct Part Number: FKB-AIN3
UPC: 800200390303
Receiver Race Diameter: 0.5312 in.
Race Width: 0.250 in.
Inner Ball Width: 0.312 in.
Inner Ball Diameter: 0.4370 in.
Chamfer Reference: 0.020 in.
Rod End Misalign Angle: 10.5 degrees
ULT. Static Radial Load (lbs.): 6,550 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
