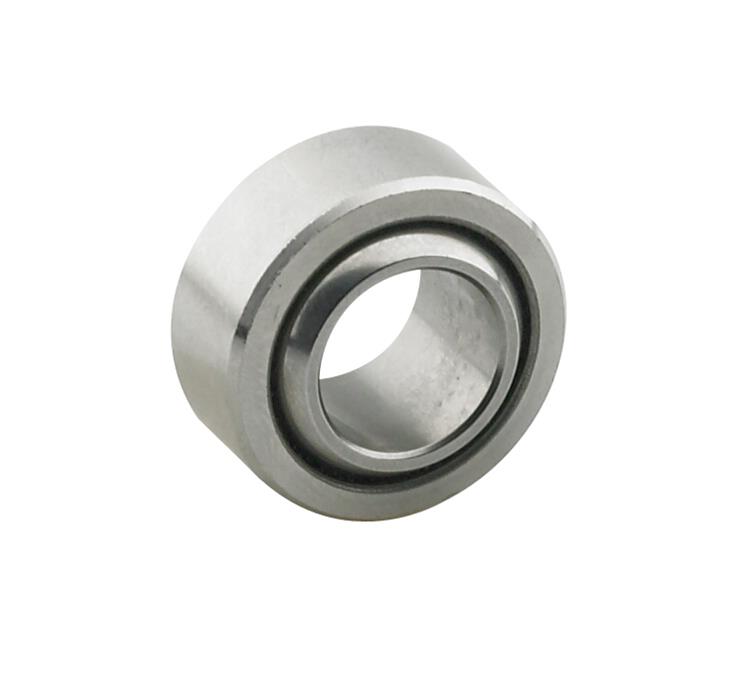

Description
Brand: FK Rod Ends
Manufacturer's Part Number: AIN14T-770
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
Automotive Fittings Part Number: FKB-AIN14T770
Receiver Race Diameter: 1.6250 in.
Race Width: 0.750 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 1.3750 in.
Chamfer Reference: 0.035 in.
Rod End Misalign Angle: 6 degrees
ULT. Static Radial Load (lbs.): 58,650 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Description:
FK AIN Heavy-Duty Precision Series spherical bearings are designed to provide smooth movement, even under heavy loads. These strong, spherical bearing races are heat-treated alloy steel that houses a 52100 hard chrome plated ball. Lubrication grooves and holes in the race or optional PTFE lining limit binding under heavy loads, increasing strength. When loads are high, trust FK AIN Heavy-Duty Precision Series spherical bearings.
Manufacturer's Part Number: AIN14T-770
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
Automotive Fittings Part Number: FKB-AIN14T770
Receiver Race Diameter: 1.6250 in.
Race Width: 0.750 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 1.3750 in.
Chamfer Reference: 0.035 in.
Rod End Misalign Angle: 6 degrees
ULT. Static Radial Load (lbs.): 58,650 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Description:
FK AIN Heavy-Duty Precision Series spherical bearings are designed to provide smooth movement, even under heavy loads. These strong, spherical bearing races are heat-treated alloy steel that houses a 52100 hard chrome plated ball. Lubrication grooves and holes in the race or optional PTFE lining limit binding under heavy loads, increasing strength. When loads are high, trust FK AIN Heavy-Duty Precision Series spherical bearings.
