Description

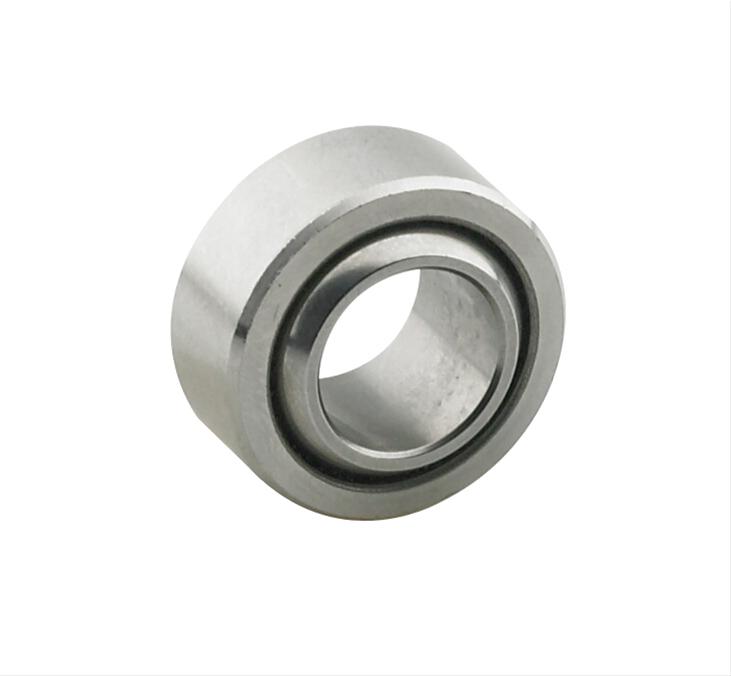

FK AIN Heavy-Duty Precision Series spherical bearings are designed to provide smooth movement, even under heavy loads. These strong, spherical bearing races are heat-treated alloy steel that houses a 52100 hard chrome plated ball. Lubrication grooves and holes in the race or optional PTFE lining limit binding under heavy loads, increasing strength. When loads are high, trust FK AIN Heavy-Duty Precision Series spherical bearings.Brand: FK Rod Ends
Manufacturer's Part Number: AIN14
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
HP Direct Part Number: FKB-AIN14
UPC: 800200391409
Receiver Race Diameter: 1.5000 in.
Race Width: 0.687 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 1.3120 in.
Chamfer Reference: 0.030 in.
Rod End Misalign Angle: 6 degrees
ULT. Static Radial Load (lbs.): 48,675 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
Manufacturer's Part Number: AIN14
Part Type: Rod End Receiver Bearings
Product Line: FK AIN Heavy-Duty Precision Series Spherical Bearings
HP Direct Part Number: FKB-AIN14
UPC: 800200391409
Receiver Race Diameter: 1.5000 in.
Race Width: 0.687 in.
Inner Ball Width: 0.875 in.
Inner Ball Diameter: 1.3120 in.
Chamfer Reference: 0.030 in.
Rod End Misalign Angle: 6 degrees
ULT. Static Radial Load (lbs.): 48,675 lbs.
Rod End Bearing Material: Steel
Quantity: Sold individually.
