Description
FiTech's Ultra Ram EFI 800 hp Go Fuel in-tank fuel injection master kits feature their outstanding Ultra Ram with aggressive looking sheet metal intake manifold along with an in-tank single pump fuel delivery system ideal for fuel cell or custom tank. Designed for the do-it-yourself hot rodder to the professional EFI tuner, Ultra Ram kits are ready to go with everything you need to convert your carbureted engine to top-of-the-line EFI FiTech self-learning technology.

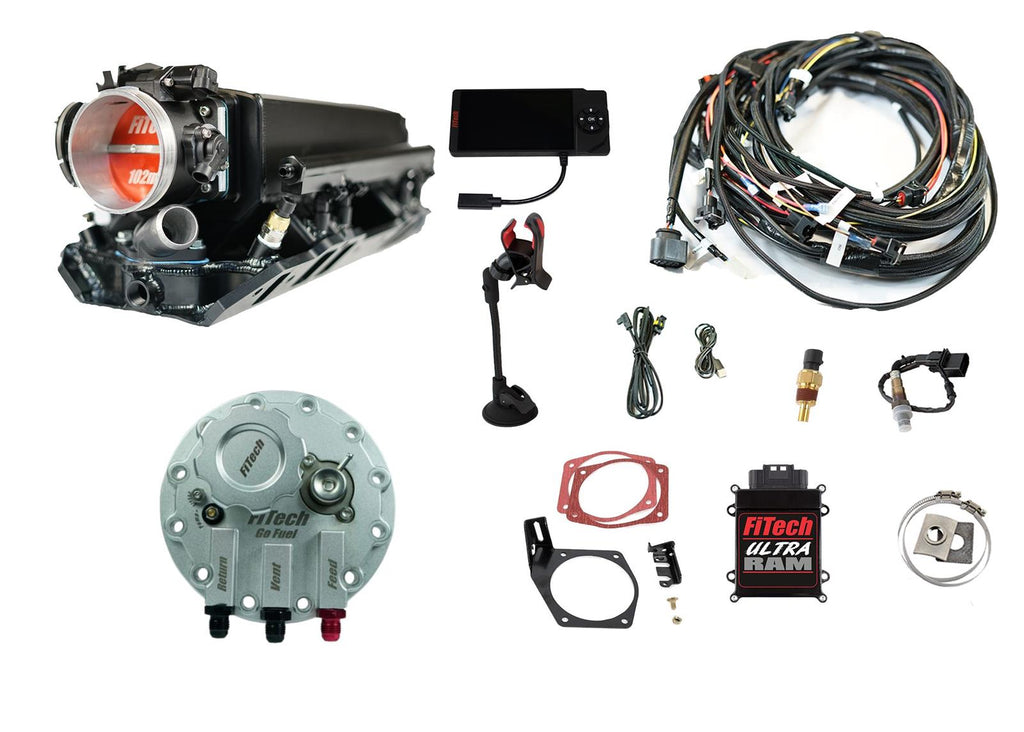

The Ultra Ram EFI system will support up to 800 hp and comes out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to ¬rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 102mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.
For fuel delivery, these FiTech Ultra Ram master kits include a Go Fuel in-tank single fuel pump module with billet top assembly machined with a 2 in. filler assembly. It supports up to 800 hp and is supplied with a 340 lph pump and an internal regulator that maintains 58 psi. The module fits fuel cells with a 12-bolt flange or can be installed on any tank with the supplied hardware.
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 36332
Part Type: Fuel Injection Systems
Product Line: FiTech Ultra Ram EFI 800 HP In-Tank Pump Fuel Injection Master Kits
HP Direct Part Number: FIF-36332
UPC: 812061036641
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 800
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 102.00mm
Airflow Rate (cfm): 1,500 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 62 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
The Ultra Ram EFI system will support up to 800 hp and comes out of the box with the injectors and fuel rails installed. The robust ECU is easy to mount and handles the air/fuel mixture targets and you only need to input a few engine specs into the color touch screen monitor to get the engine to ¬rev up. Ultra Ram is supplied with a sheet metal intake, cast aluminum 102mm throttle body, remote mount ECU, main harness, handheld controller, cable and windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info.
For fuel delivery, these FiTech Ultra Ram master kits include a Go Fuel in-tank single fuel pump module with billet top assembly machined with a 2 in. filler assembly. It supports up to 800 hp and is supplied with a 340 lph pump and an internal regulator that maintains 58 psi. The module fits fuel cells with a 12-bolt flange or can be installed on any tank with the supplied hardware.
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 36332
Part Type: Fuel Injection Systems
Product Line: FiTech Ultra Ram EFI 800 HP In-Tank Pump Fuel Injection Master Kits
HP Direct Part Number: FIF-36332
UPC: 812061036641
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 800
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 102.00mm
Airflow Rate (cfm): 1,500 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 62 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
