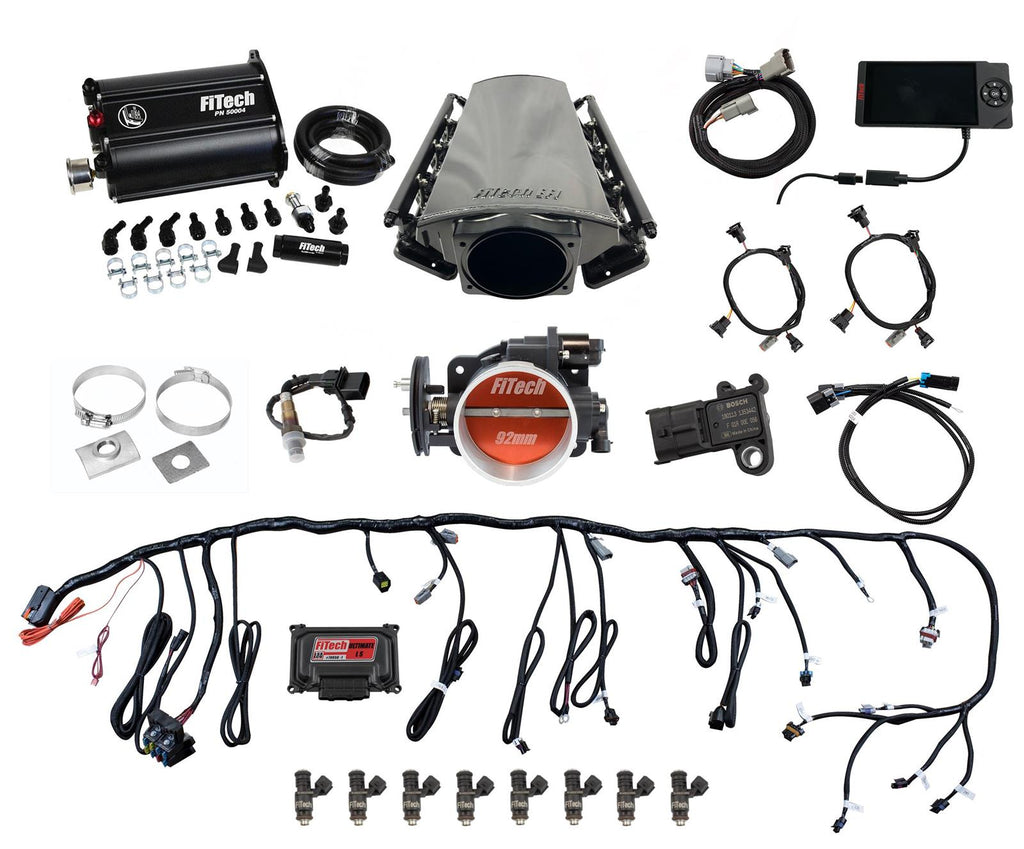

FiTech Ultimate LS EFI 500 HP Fuel Injection Systems with Force Fuel 75212

FiTech Ultimate LS EFI 500 hp fuel injection systems with Force Fuel combines incredible engineering and construction for top-of-the-line performance. FiTech fabricated many billet aluminum parts for their Ultimate LS EFI 500 hp systems, including a 92mm throttle body, high-volume fuel rails, and a 1,500 to 6,500 rpm powerband intake manifold. They combine sequential spark and fuel control with 36 lbs./hr. injectors, a plug-and-play wiring harness, and a color touch screen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly.

Force Fuel sump kits use your stock low-pressure manual or EFI pump to feed their sump tank. The pump is submerged in fuel for cooler and quieter running, and delivers 58 psi of high-pressure fuel to the throttle body at a rate of up to 340 lph (89 gph). For excellent performance and overall ease of operation, buy FiTech Ultimate LS EFI 500 HP fuel injection systems with Force Fuel sump system.

Additional Force Fuel sump system features:

* Low fuel level in the fuel tank will not result in pump starvation when vehicle is on a steep incline
* Generally mounted in the engine compartment, but can be attached to the vehicle's chassis.
* Supplied high-pressure hose includes 5 ft. of high-quality EFI -06 fuel line and fittings for plumbing from the Fuel Command Center 2.0 to the EFI throttle body

Additional Ultimate LS features:

* Optional GM transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 inches of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touch screen hand-held controller with data log features
* Suction cup mounting bracket
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 75212
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS EFI 500 HP Fuel Injection Systems with Force Fuel
HP Direct Part Number: FIF-75212
UPC: 812061032339
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 500
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: None
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: Yes
Transmission Controller Included: Yes
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Intake Material: Aluminum
Intake Color: Black
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Venturi Quantity: 1
Venturi Diameter (mm): 92.00mm
Airflow Rate (cfm): 1,000 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
