Description

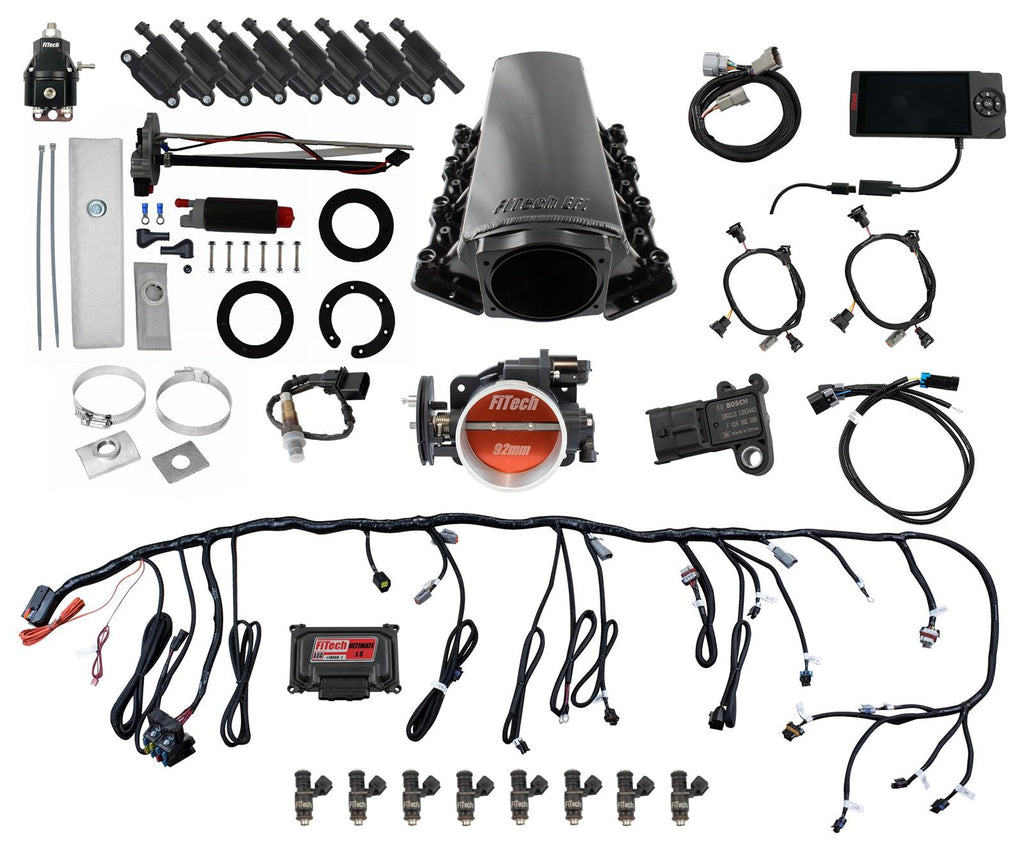

FiTech has some of the best-engineered and priced throttle body systems on the market. Their LS EFI 500HP fuel injection systems bring incredible ingenuity to the market. FiTech fabricated many aluminum parts for these systems, including the low-profile 92mm billet throttle body, high-volume billet fuel rails, and an intake manifold with 1,500 to 6,500 rpm powerband and 3mm construction.
Sequential spark and fuel control mates 36 lbs./hr. injectors, a plug-and-play wiring harness, and a color touchscreen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly. A suction cup mounting bracket puts the controllers at your fingertips and allows for impressive visual aids.
The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. FiTech LS EFI 500HP fuel injection systems with transmission controller provide impressive power and performance, while allowing you to save a little green for your next tires.
Additional features:
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 in. of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touchscreen hand-held controller with data log featuresBrand: FiTech Fuel Injection
Manufacturer's Part Number: 78607
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS EFI 500 HP Fuel Injection Systems
HP Direct Part Number: FIF-78607
UPC: 812061034241
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 500
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Ignition System Included: Coil packs
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: Yes
Metering Style: Speed density
Intake Material: Aluminum
Intake Color: Black
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Throttle Body Mounting Flange: GM LS2 4-bolt
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: LS1 tall intake manifold with transmission control, master kit, in-tank fuel module, and coil pack set.
Sequential spark and fuel control mates 36 lbs./hr. injectors, a plug-and-play wiring harness, and a color touchscreen self-learning ECU. This allows for programing two fan control outputs, most tach and speedometer output drivers, and target AFR and timing on the fly. A suction cup mounting bracket puts the controllers at your fingertips and allows for impressive visual aids.
The optional transmission control feature is suitable for 4L60, 4L65, 4L70, or 4L80 GM transmissions. FiTech LS EFI 500HP fuel injection systems with transmission controller provide impressive power and performance, while allowing you to save a little green for your next tires.
Additional features:
* Black anodized aluminum parts for style and corrosion resistance
* High-flow, cable-operated throttle body
* Bosch wideband-controlled
* Stainless oxygen sensor bung
* Compatible with car and truck coils
* AN fittings and fuel crossover
* Works with custom cams
* Designed for applications making at least 6 in. of vacuum at idle
* 24X and 58X crank and cam compatible
* Programmable touchscreen hand-held controller with data log featuresBrand: FiTech Fuel Injection
Manufacturer's Part Number: 78607
Part Type: Fuel Injection Systems
Product Line: FiTech Ultimate LS EFI 500 HP Fuel Injection Systems
HP Direct Part Number: FIF-78607
UPC: 812061034241
Fuel Injection Style: Multi-port
Fuel Injection System Type: Multi-port Throttle Body
Maximum Horsepower with Gas: 500
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Ignition System Included: Coil packs
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: Yes
Metering Style: Speed density
Intake Material: Aluminum
Intake Color: Black
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Throttle Body Mounting Flange: GM LS2 4-bolt
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Injector Size (lbs/hr): 36 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: LS1 tall intake manifold with transmission control, master kit, in-tank fuel module, and coil pack set.
