FiTech Go Port EFI Complete Fuel Injection Systems 30454

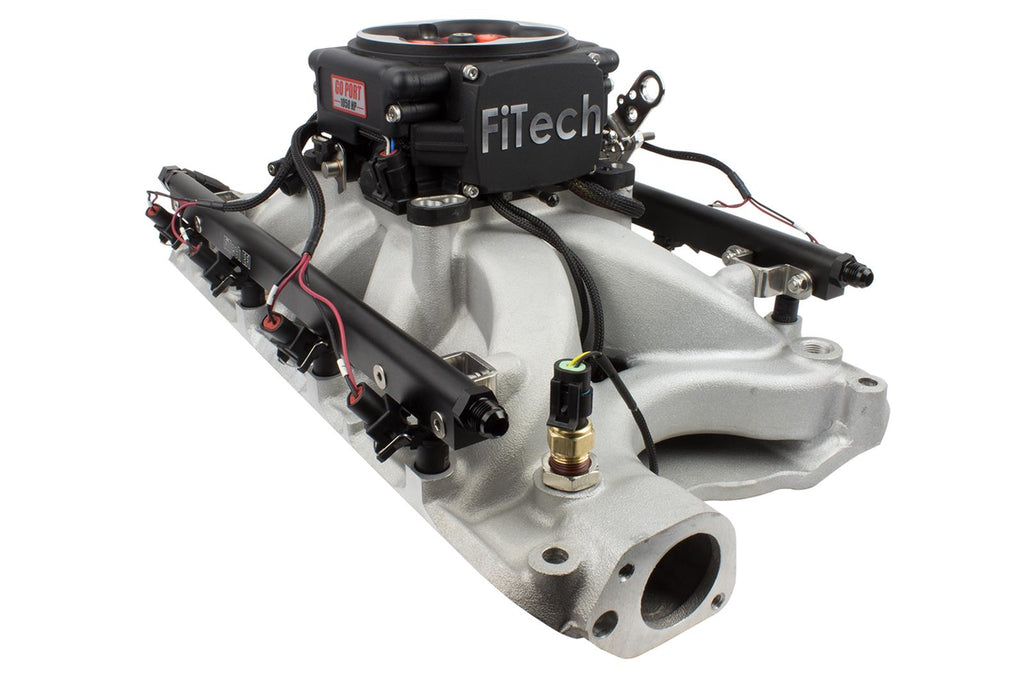

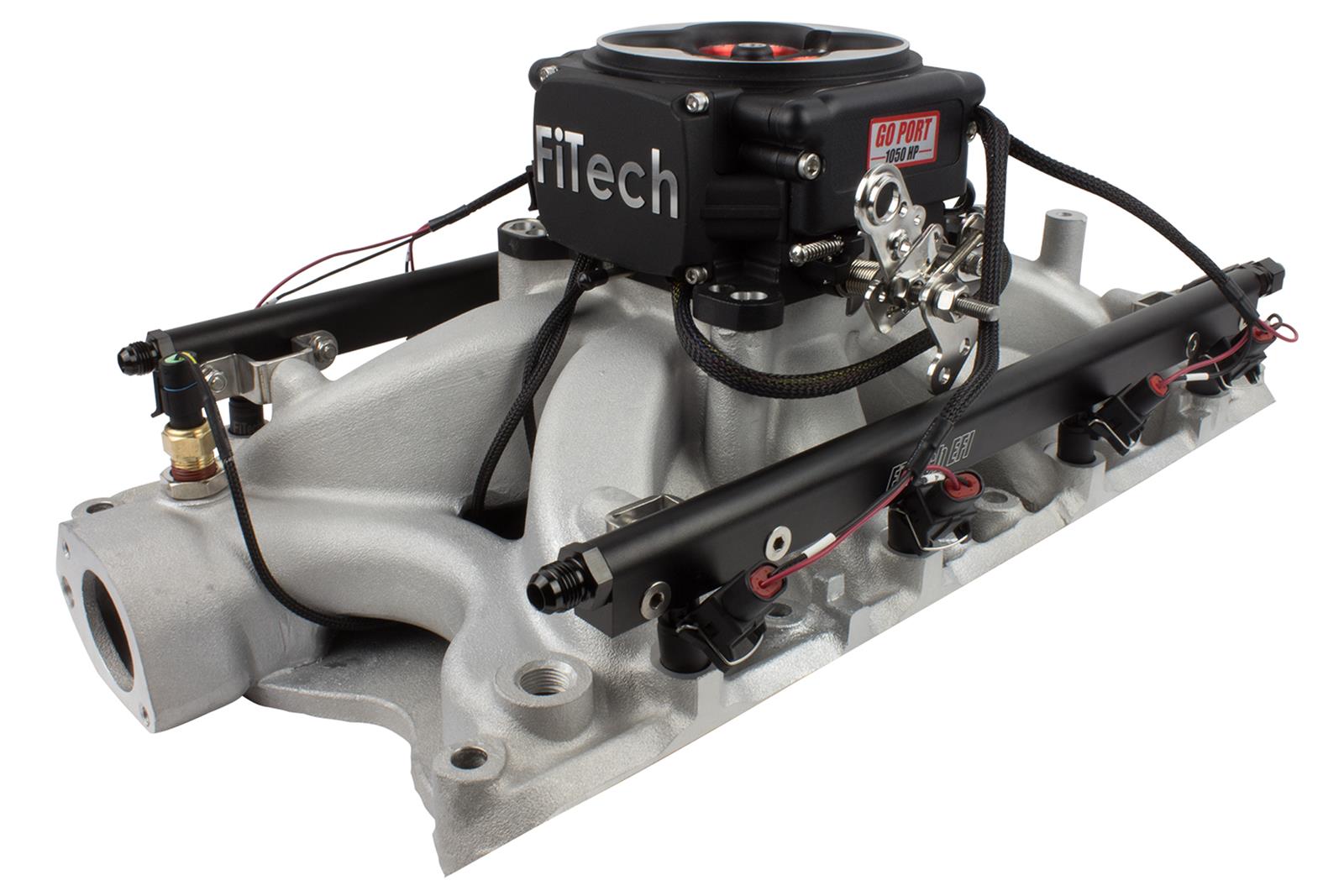

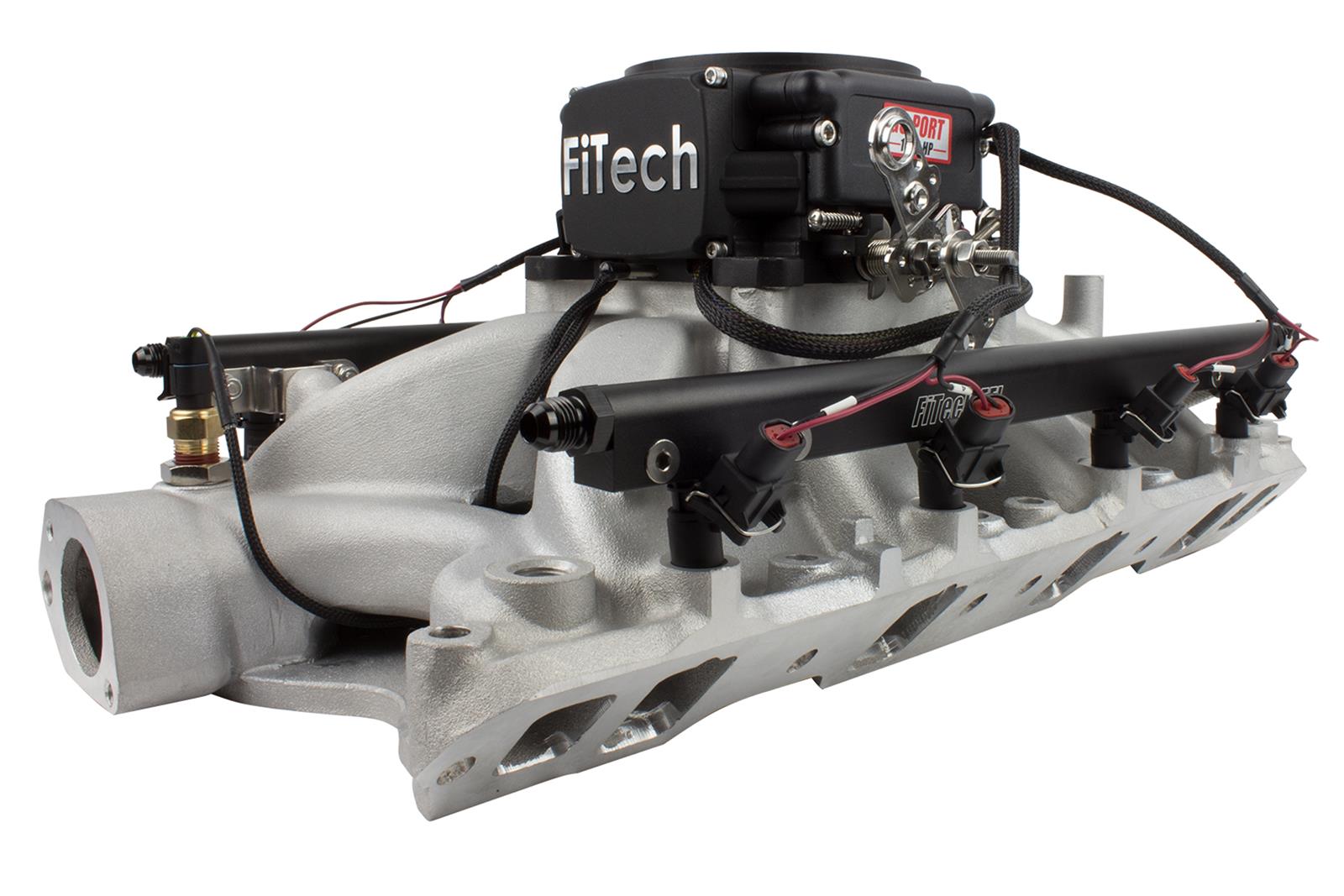

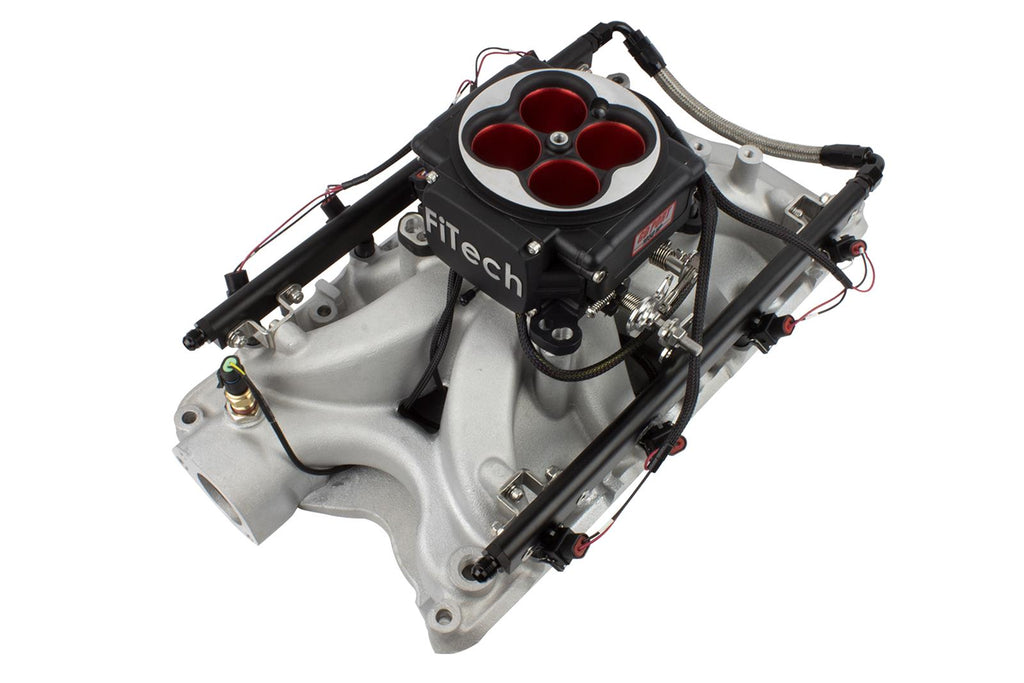

FiTech Go Port EFI complete fuel injection systems are offered in two kits, one for up to 550 hp and one for up to 1,050 hp. Each system is supplied with a new aluminum intake machined and fitted with injectors (36 or 80 lb.), fuel rails, wiring harness, and an 850 cfm throttle body. The ECU, with its high-speed processor, is integral to the throttle body along with the TPS, IAC, IAT and MAP sensors reducing wiring and making installation as easy as possible. All setup is handled through the color touch screen monitor with no tuning experience necessary to have your engine ¬rev up and running at its best. Choose the system designed for your engine.

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 30454
Part Type: Fuel Injection Systems
Product Line: FiTech Go Port EFI Complete Fuel Injection Systems
HP Direct Part Number: FIF-30454
UPC: 856291005398
Fuel Injection Style: Multi-port
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 550
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: None
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Intake Material: Aluminum
Intake Color: Natural
Engine Block Deck Height: Standard deck
Multi-Port Fuel Rails Included: Yes
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Designed for oval port engines only.
