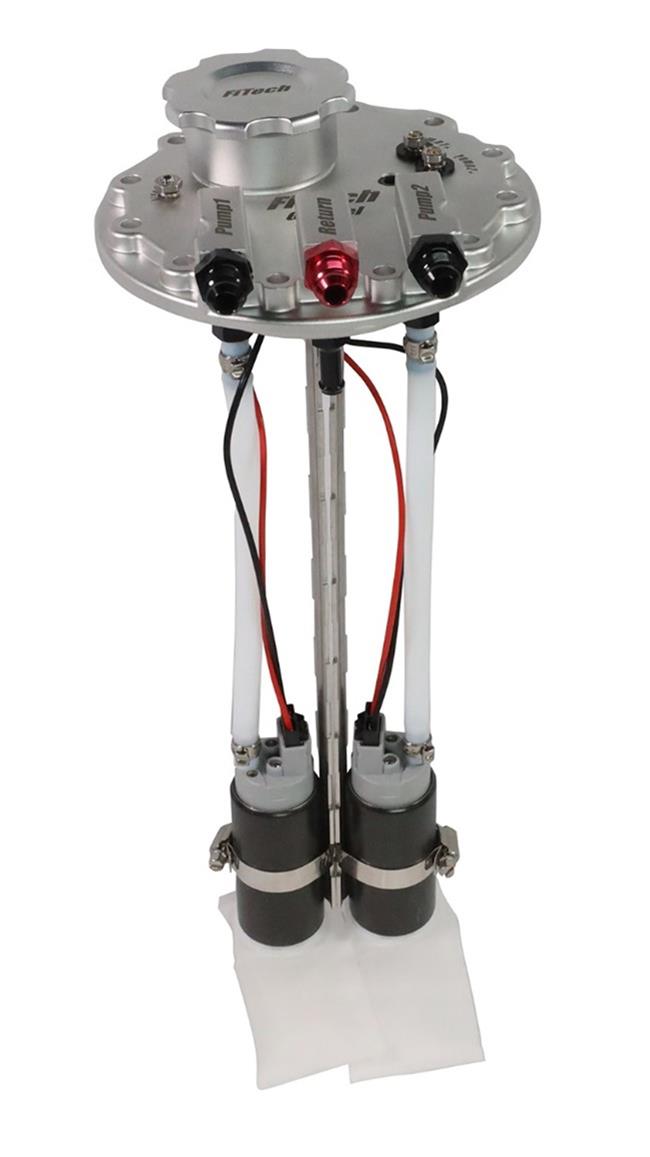

When it comes to converting to EFI, it's important for the fuel pump to be installed in a cool area and what better place than in the gas tank itself. The pump is cooled by the fuel, it's quieter plus there's no chance of fuel starvation. To help ease the installation of an in-tank pump, we offer a new Go Fuel In-Tank Module assembly.
This universal billet assembly can be used on tanks with a depth of 6 to 15 inches. The billet aluminum was designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. The vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection.
The cut-to-fit bracket secures a 340 LPH pump capable of providing fuel to 600 horsepower engines. To ensure clean fuel is pulled into the pump, two size of sock/filters are provided, a standard 11 square-inch design as well as a large, 35 square-inch version. Go Fuel in-tank modules are a direct fit into fuel tanks offered by TANKS Inc.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 50020
Part Type: Fuel Pumps
Product Line: FiTech Go Fuel In-Tank Pump Modules
HP Direct Part Number: FIF-50020
Fuel Pump Type: Electric In-tank
Flow Rate: 90 gph/340 lph
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -6 AN O-ring
Inlet Quantity: 2
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -6 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: Yes
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Can support up to 1,600 HP. Universal design retrofit fuel pump module kit that is adjustable from 7-16 in. deep tanks.
This universal billet assembly can be used on tanks with a depth of 6 to 15 inches. The billet aluminum was designed with the supply and return ports in a parallel position to help route the fuel lines easily and evenly. The vent port is on the other side to ease routing the line near the fill tube. The two fuel ports are threaded to accept -6 AN O-ring boss fittings for a secure, leak-free connection.
The cut-to-fit bracket secures a 340 LPH pump capable of providing fuel to 600 horsepower engines. To ensure clean fuel is pulled into the pump, two size of sock/filters are provided, a standard 11 square-inch design as well as a large, 35 square-inch version. Go Fuel in-tank modules are a direct fit into fuel tanks offered by TANKS Inc.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 50020
Part Type: Fuel Pumps
Product Line: FiTech Go Fuel In-Tank Pump Modules
HP Direct Part Number: FIF-50020
Fuel Pump Type: Electric In-tank
Flow Rate: 90 gph/340 lph
Fuel Pump Voltage: 12 V
Fuel Pressure Regulator Included: No
Sending Unit Included: No
Fuel Pump Inlet Size: -6 AN O-ring
Inlet Quantity: 2
Inlet Attachment: Female straight cut O-ring
Fuel Pump Outlet Size: -6 AN O-ring
Outlet Quantity: 1
Outlet Attachment: Female straight cut O-ring
Gasket Included: Yes
Wiring Harness Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Pulley Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Can support up to 1,600 HP. Universal design retrofit fuel pump module kit that is adjustable from 7-16 in. deep tanks.
