Description
FiTech's Go EFI 4 self-tuning fuel injection is ideal for everyday
drivers to weekend cruisers or even bracket cars. The system
supports engines making up to 600hp yet is capable of the
fueling needs of a 200hp street rod.

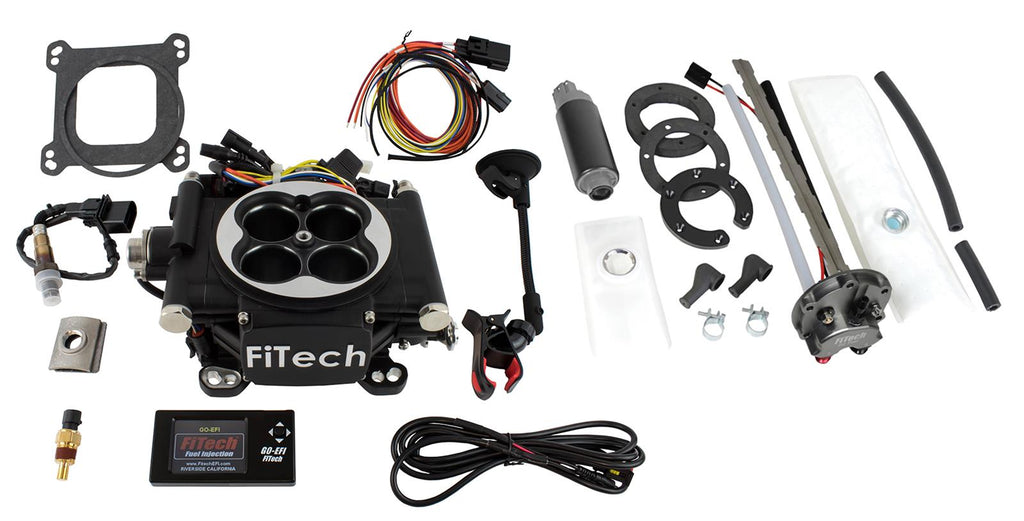

The aluminum throttle body easily fits any 4-bbl intake manifold. Thanks to the built-in ECU, MAP sensor and fuel pressure regulator, wiring is kept to minimum with just a few connections for an easy install. The quick self-learning technology that FiTech is known for, combined with our wet annular discharge design will you your engine fired up and idling smooth in minutes. All it takes are a few taps of the supplied touchscreen controller which can be left plugged in to use as gauges, or removed and stored in the glovebox.
These kits also include FiTech's Go Fuel In-Tank fuel pump module. The unique universal design allows you to install the pump in most tanks ranging from 6 to 15 inches deep. The supplied 340 lph fuel pump is compatible with gasoline, E85, ethanol, methanol and alcohol based fuels. Kits include a billet aluminum module with -6AN O-ring boss fittings, 2 different styles of filters, hardware, seals, and terminals.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 36202
Part Type: Fuel Injection Systems
Product Line: FiTech Go EFI 4 600 HP Self-Tuning Fuel Injection Systems with Go Fuel In-Tank Modules
HP Direct Part Number: FIF-36202
UPC: 812061032445
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Fuel Pump Flow Rating (lph): 255
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: System includes a universal Go Fuel In-Tank 340 LPH retrofit fuel pump module that can fit from 6-15 in. deep tanks with -6AN ORB fittings. Integrated ECU can control 1 cooling fan.
drivers to weekend cruisers or even bracket cars. The system
supports engines making up to 600hp yet is capable of the
fueling needs of a 200hp street rod.
The aluminum throttle body easily fits any 4-bbl intake manifold. Thanks to the built-in ECU, MAP sensor and fuel pressure regulator, wiring is kept to minimum with just a few connections for an easy install. The quick self-learning technology that FiTech is known for, combined with our wet annular discharge design will you your engine fired up and idling smooth in minutes. All it takes are a few taps of the supplied touchscreen controller which can be left plugged in to use as gauges, or removed and stored in the glovebox.
These kits also include FiTech's Go Fuel In-Tank fuel pump module. The unique universal design allows you to install the pump in most tanks ranging from 6 to 15 inches deep. The supplied 340 lph fuel pump is compatible with gasoline, E85, ethanol, methanol and alcohol based fuels. Kits include a billet aluminum module with -6AN O-ring boss fittings, 2 different styles of filters, hardware, seals, and terminals.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 36202
Part Type: Fuel Injection Systems
Product Line: FiTech Go EFI 4 600 HP Self-Tuning Fuel Injection Systems with Go Fuel In-Tank Modules
HP Direct Part Number: FIF-36202
UPC: 812061032445
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: In-tank fuel pump module, return
Fuel Pump Flow Rating (lph): 255
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: System includes a universal Go Fuel In-Tank 340 LPH retrofit fuel pump module that can fit from 6-15 in. deep tanks with -6AN ORB fittings. Integrated ECU can control 1 cooling fan.
