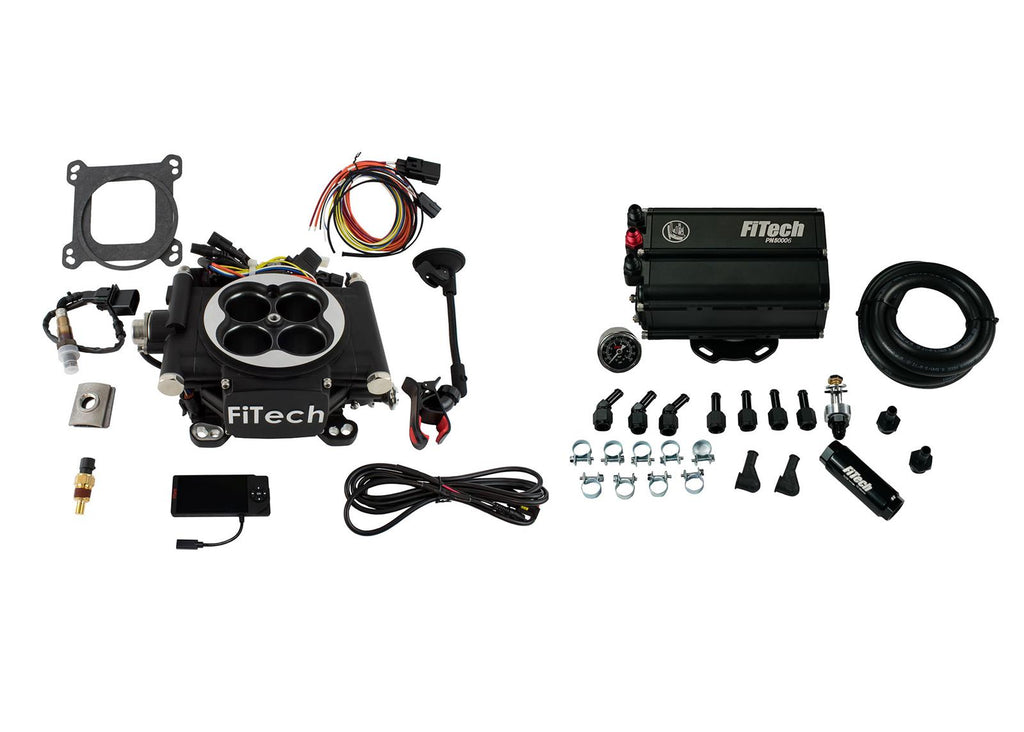

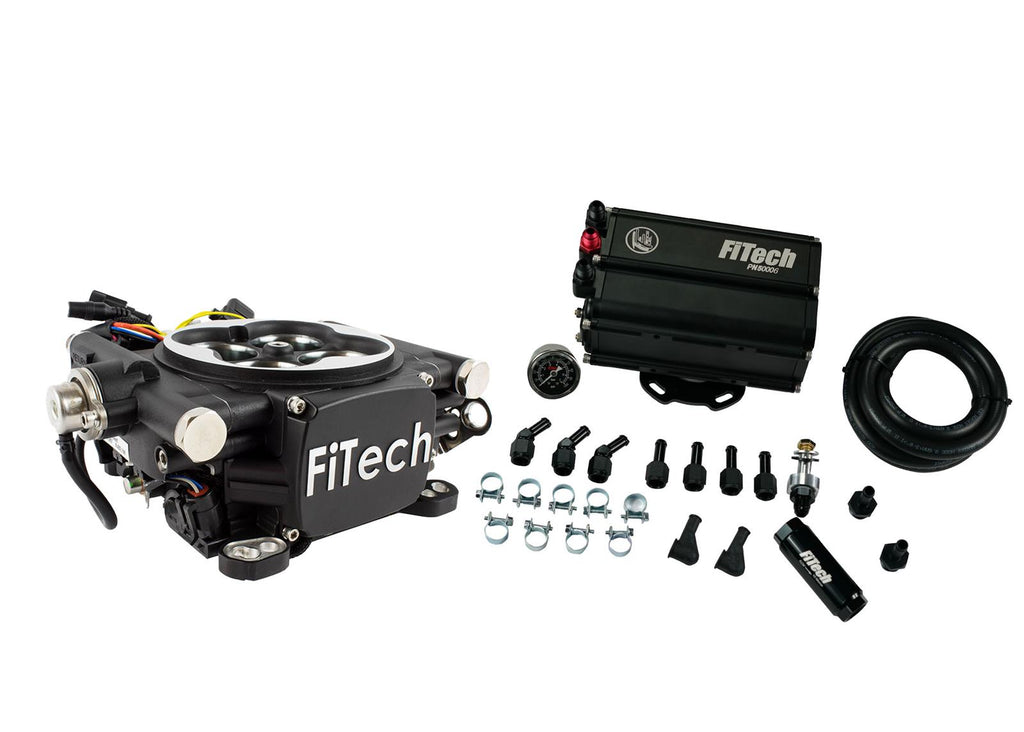

FiTech Go EFI 4 600 HP Self-Tuning Fuel Injection Systems 35502

When it comes to fuel injection versus carburetors, new school is just too cool. FiTech Go EFI 4 600 hp self-tuning fuel injection systems have the ECU mounted on the throttle body for greater self-containment, clean installation, and easy setup. These trick systems fit any 4-barrel intake manifold, and are designed for use on engines from 250 to 600 hp. They feature a built-in fuel pressure regulator, an ECU that finds the best tune and self-adjusts to it—and the ability to change air/fuel ratios and ignition timing on the fly.

Each system has a hand-held controller with a touch screen for initial setup, throttle linkage that suits most transmissions, and is manufactured with OE engineering. FiTech Go EFI 4 600 hp self-tuning fuel injection systems leave the guesswork behind. Order the model with options best-suited for your application.

Additional features:

* Choice of three fuel inlet connections
* Will work with CDI box, but not required to control timing
* Adjustable fan control switch
* Can be used with an engine-mounted returnless fuel command center
* Uses easy-to-replace, GM-type sensors and Bosch 4.2 wideband oxygen sensors
* Wet Flow swirl spray annual discharge obtains complete atomization
* Voltage-controlling fuel pump control reduces power under low loads to lower temperatures
* Systems with mounted ECUs offer spark control without the need for an external spark box or special distributor
* Designed for applications making at least 6 in. of vacuum at idle
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 35502
Part Type: Fuel Injection Systems
Product Line: FiTech Go EFI 4 600 HP Self-Tuning Fuel Injection Systems
HP Direct Part Number: FIF-35502
UPC: 812061034975
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Black
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Includes force fuel mini part number 50006.
