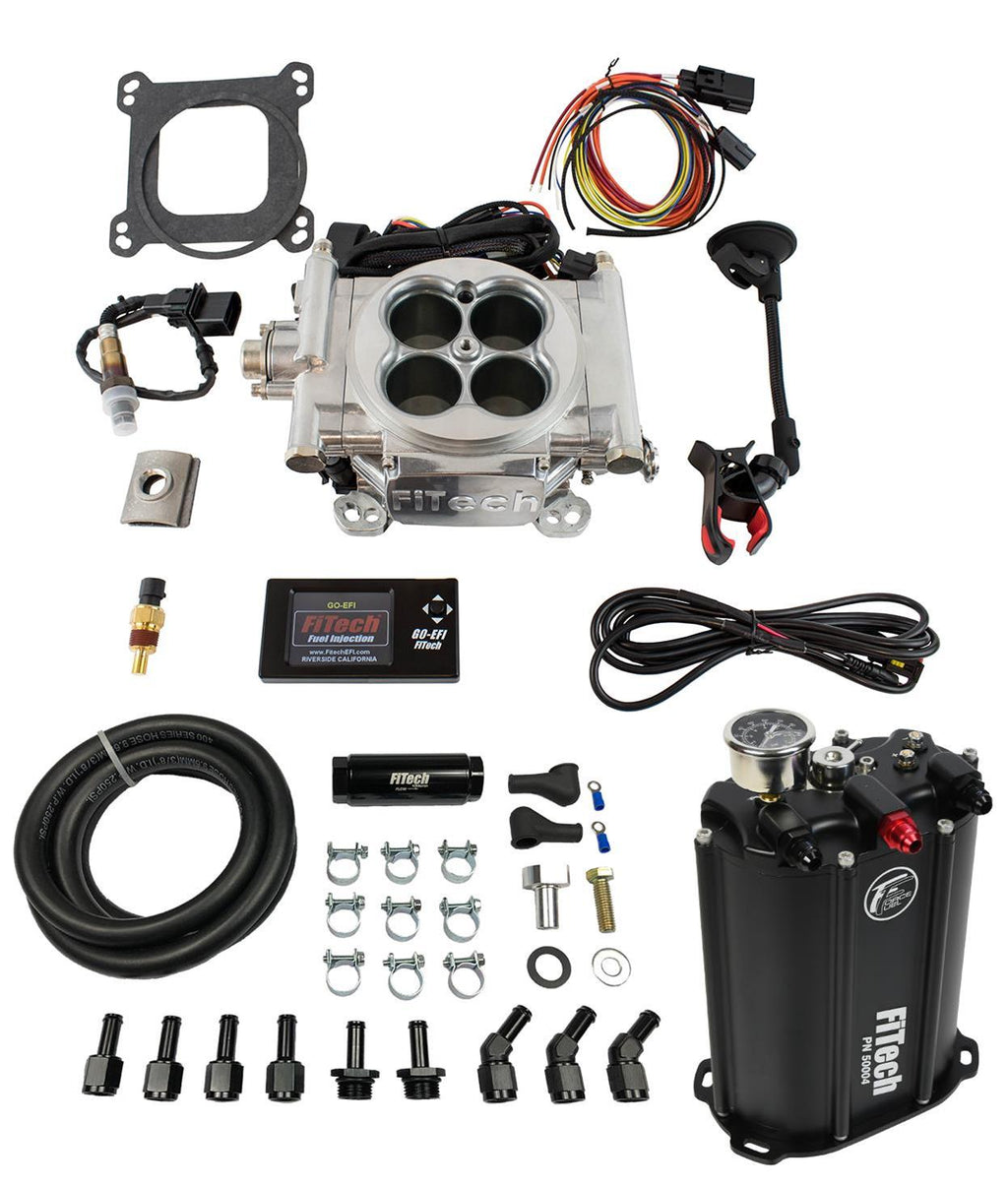

FiTech Go EFI 4 600 HP Fuel Injection Systems with Force Fuel Systems 35201

FiTech Go EFI 4 600 hp fuel injection systems with Force Fuel systems combine the self-tuning, 4-injector setup with a versatile Force Fuel sump. The Go EFI 4 600 systems are designed for use on engines from 250 to 600 hp. They feature a built-in fuel pressure regulator and an ECU that self-adjusts to find the best tune—plus the ability to change air/fuel ratios and ignition timing on the fly.

The Force Fuel systems connect to your stock mechanical or electric fuel pump and supply the EFI system with high-pressure. They do so through the use of an internal 340 lph (approximately 90 gph) pump—no new feed line from your tank is necessary. Ditch that old carburetor and advance hassle-free into the modern EFI world with a FiTech Go EFI 4 600 hp fuel injector and Force Fuel system combo. Models are available with a variety of options; select the system best suited for your application.

Brand: FiTech Fuel Injection
Manufacturer's Part Number: 35201
Part Type: Fuel Injection Systems
Product Line: FiTech Go EFI 4 600 HP Fuel Injection Systems with Force Fuel Systems
HP Direct Part Number: FIF-35201
UPC: 812061032155
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 650
Timing Control Compatible: Yes
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Throttle Body Material: Cast aluminum
Throttle Body Color: Natural
Injectors Included: Yes
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold as a kit.
Notes: Includes FiTech Force Fuel sump system. This system has a 1/2 gallon sump with 340 lph electric pump and integrated regulator pre-set to 58 psi. It is designed to work with the vehicle's current mechanical or electric fuel pump.
