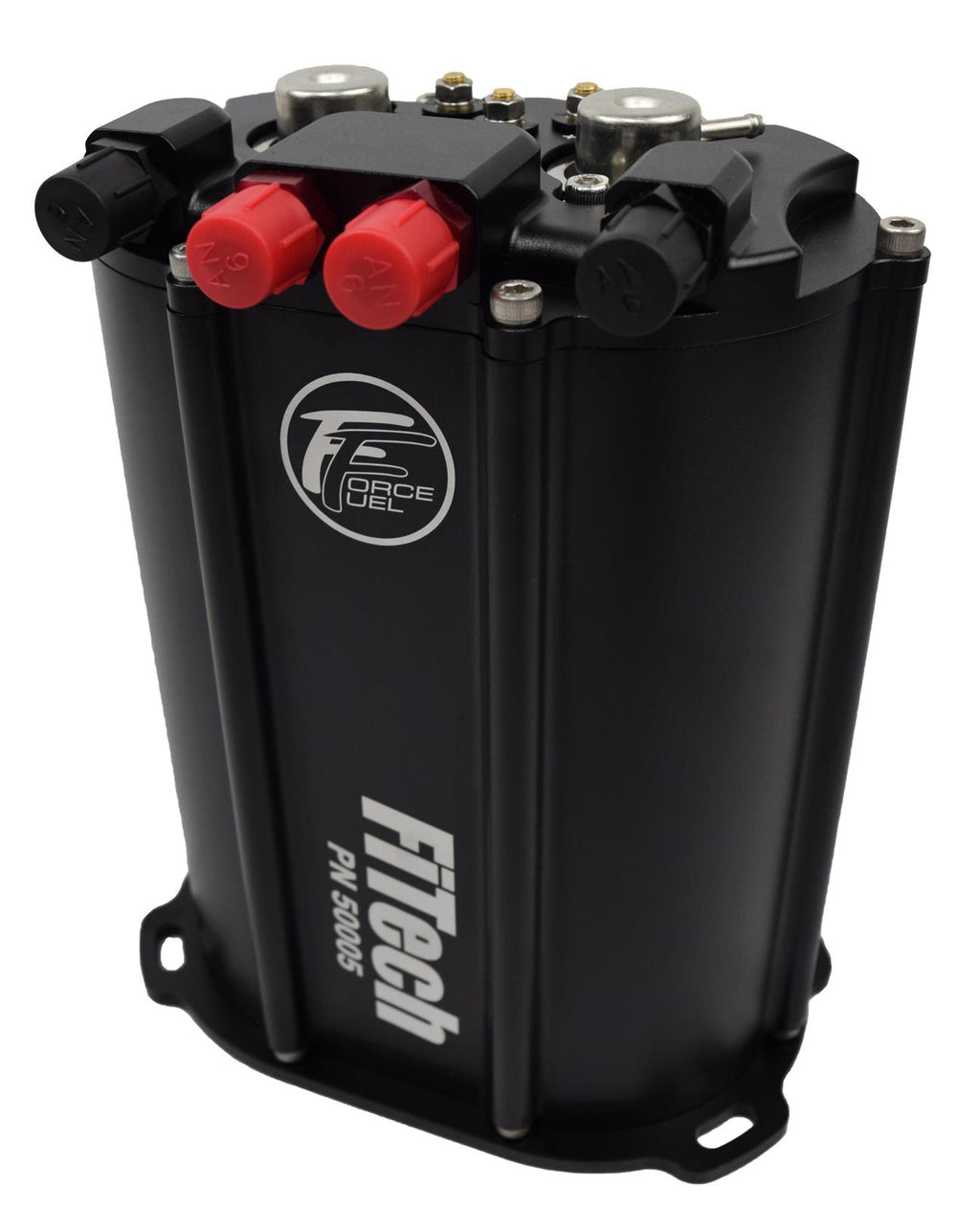

FiTech Force Fuel Systems 50005

FiTech Force fuel systems make the upgrade to fuel injection easier! They simply connect to a stock mechanical or electric fuel pump, then supply the EFI system with high pressure through the use of an internal 340 lph (approximately 90 gph) pump. The strong, versatile bracket allows mounting under your existing fuel pump, which feeds the units. The assemblies hold a half-gallon of fuel to submerge the internal pump and keep it cool for long life, with no chance of fuel starvation. An internal regulator maintains the pressure at a consistent 58 psi—which is ideal for reliable EFI performance. Order a FiTech Force fuel system and forget about running a new feed line from the tank! Models are available in different configurations.

Features, items, and specs:

* Serviceable 10-micron fuel filter keeps the finest debris away from the injectors
* 5 ft. of high-pressure fuel hose
* AN fittings
* Clamps
* Precision-machined extrusion designed for strength and sealed tight
* Easy-to-view fuel pressure gauge installed for quick checks
* Heavy-duty wire terminals to complete the installation
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 50005
Part Type: Surge Tanks
Product Line: FiTech Force Fuel Systems
HP Direct Part Number: FIF-50005
UPC: 812061033824
Fuel Pump Included: Yes
Flow Rate: 90 gph/340 lph
Maximum Pressure (psi): 58 psi
Capacity: 0.5 gallons
Inlet Attachment: Female O-ring
Fuel Pump Inlet Size: -6 AN
Inlet Quantity: 2
Outlet Attachment: Female O-ring
Fuel Pump Outlet Size: -6 AN
Outlet Quantity: 2
Sending Unit Included: No
Gasket Included: No
Fuel Pressure Regulator Included: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Wiring Harness Included: No
Quantity: Sold individually.
