Description
FiTech Easy Street 600 hp EFI Force Fuel injection master kits are a combination of the "Midas Touch" and fuel injection upgrade convenience. The Easy Street system's gold finish will spice up your monster motor without losing the old-school style, and the Force Fuel system helps quench its thirst with easy hookup and versatile mounting. Become a dual threat at both car shows and race tracks; order the kit best suited for your non-boosted, naturally-aspirated crate/performance engine application.

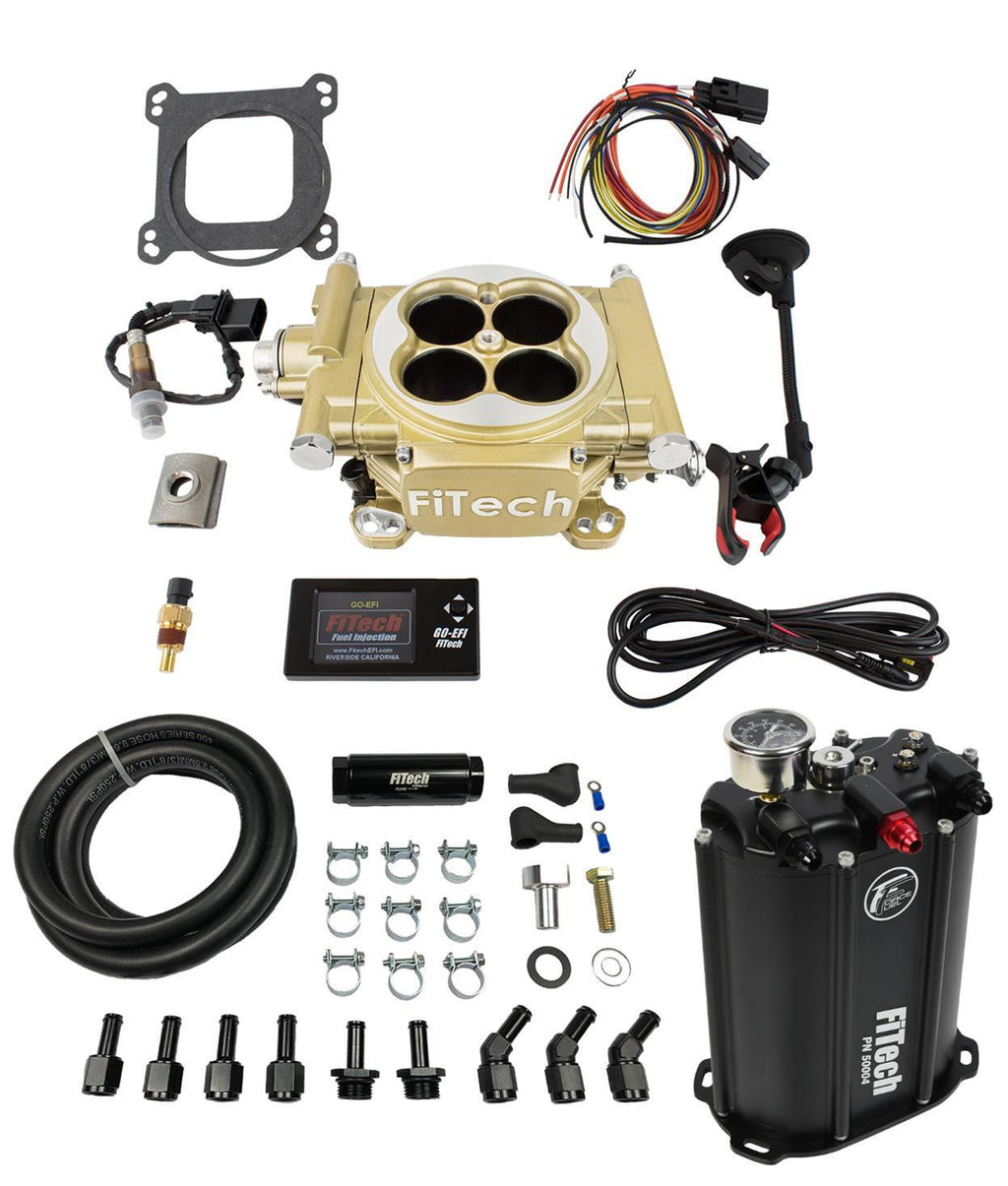

FiTech Easy Street is supplied with:
* Handheld controller, cable and windshield mount, throttle body vehicle side harness, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info
Fuel delivery options:
* Go Fuel Force Fuel system--mounts under the hood and is fed with the original mechanical or electric fuel pump, and then supplies the EFI system with the required high-pressure with the internal 340 lph pump. A 1/2 gallon reservoir prevents fuel starvation, while an internal regulator keeps the pressure at a consistent 58 psi. To ensure clean fuel to the injectors, a serviceable 10-micron fuel filter is supplied along with 5 ft. of hose, AN fittings, return line fitting bung, and liquid-filled gauge.
* Go Fuel Mini Force Fuel system is ideal for cramped engine compartments and is s fed through a low-pressure mechanical (or electric) pump saving the need to modify the entire fuel system. Equipped with an efficient 255 lph pump and internal regulator to deliver a consistent 58 psi. Can be installed in four positions and is supplied with hose, AN fittings, return line fitting bung, and liquid-filled gauge.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 35205
Part Type: Fuel Injection Systems
Product Line: FiTech Easy Street 600 HP EFI System Force Fuel Injection Master Kits
HP Direct Part Number: FIF-35205
UPC: 812061032131
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
Timing Control Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter (mm): 43.00mm
Airflow Rate (cfm): 850 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Gold
Injectors Included: Yes
Injector Size (lbs/hr): 80 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold individually.
FiTech Easy Street is supplied with:
* Handheld controller, cable and windshield mount, throttle body vehicle side harness, WBO2 sensor, bung kit, coolant sensor, gasket, mini USB cable, instructions, and warranty info
Fuel delivery options:
* Go Fuel Force Fuel system--mounts under the hood and is fed with the original mechanical or electric fuel pump, and then supplies the EFI system with the required high-pressure with the internal 340 lph pump. A 1/2 gallon reservoir prevents fuel starvation, while an internal regulator keeps the pressure at a consistent 58 psi. To ensure clean fuel to the injectors, a serviceable 10-micron fuel filter is supplied along with 5 ft. of hose, AN fittings, return line fitting bung, and liquid-filled gauge.
* Go Fuel Mini Force Fuel system is ideal for cramped engine compartments and is s fed through a low-pressure mechanical (or electric) pump saving the need to modify the entire fuel system. Equipped with an efficient 255 lph pump and internal regulator to deliver a consistent 58 psi. Can be installed in four positions and is supplied with hose, AN fittings, return line fitting bung, and liquid-filled gauge.Brand: FiTech Fuel Injection
Manufacturer's Part Number: 35205
Part Type: Fuel Injection Systems
Product Line: FiTech Easy Street 600 HP EFI System Force Fuel Injection Master Kits
HP Direct Part Number: FIF-35205
UPC: 812061032131
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 600
Timing Control Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Fuel Pump Flow Rating (lph): 340
Ignition System Included: None
Power Distribution Included: None
User Interface Included: 4.5 in. display
EGR: No
Transmission Controller Included: No
Metering Style: Speed density
Multi-Port Fuel Rails Included: No
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter (mm): 43.00mm
Airflow Rate (cfm): 850 cfm
Throttle Body Material: Cast aluminum
Throttle Body Color: Gold
Injectors Included: Yes
Injector Size (lbs/hr): 80 lbs./hr.
Calibration Module Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Quantity: Sold individually.
