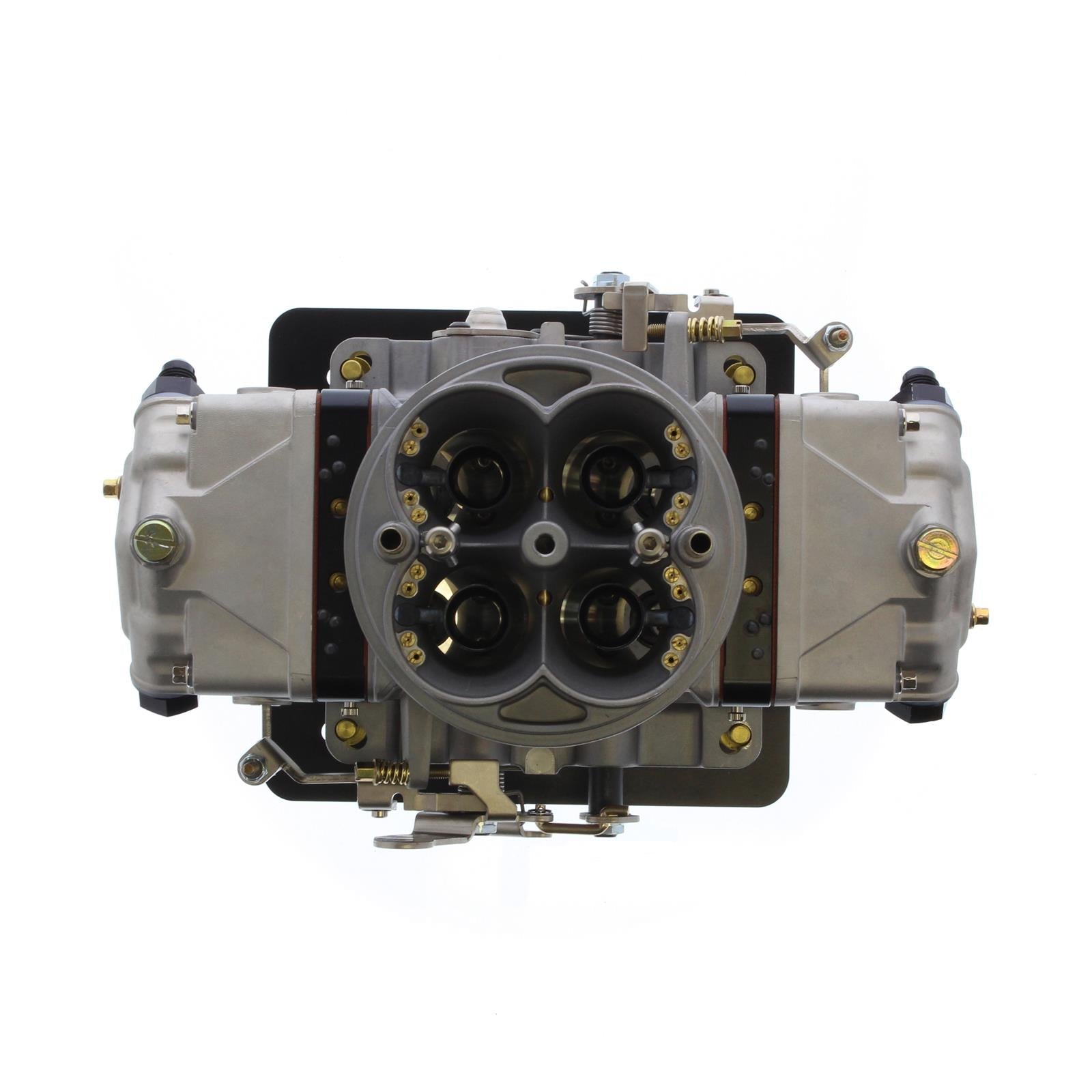

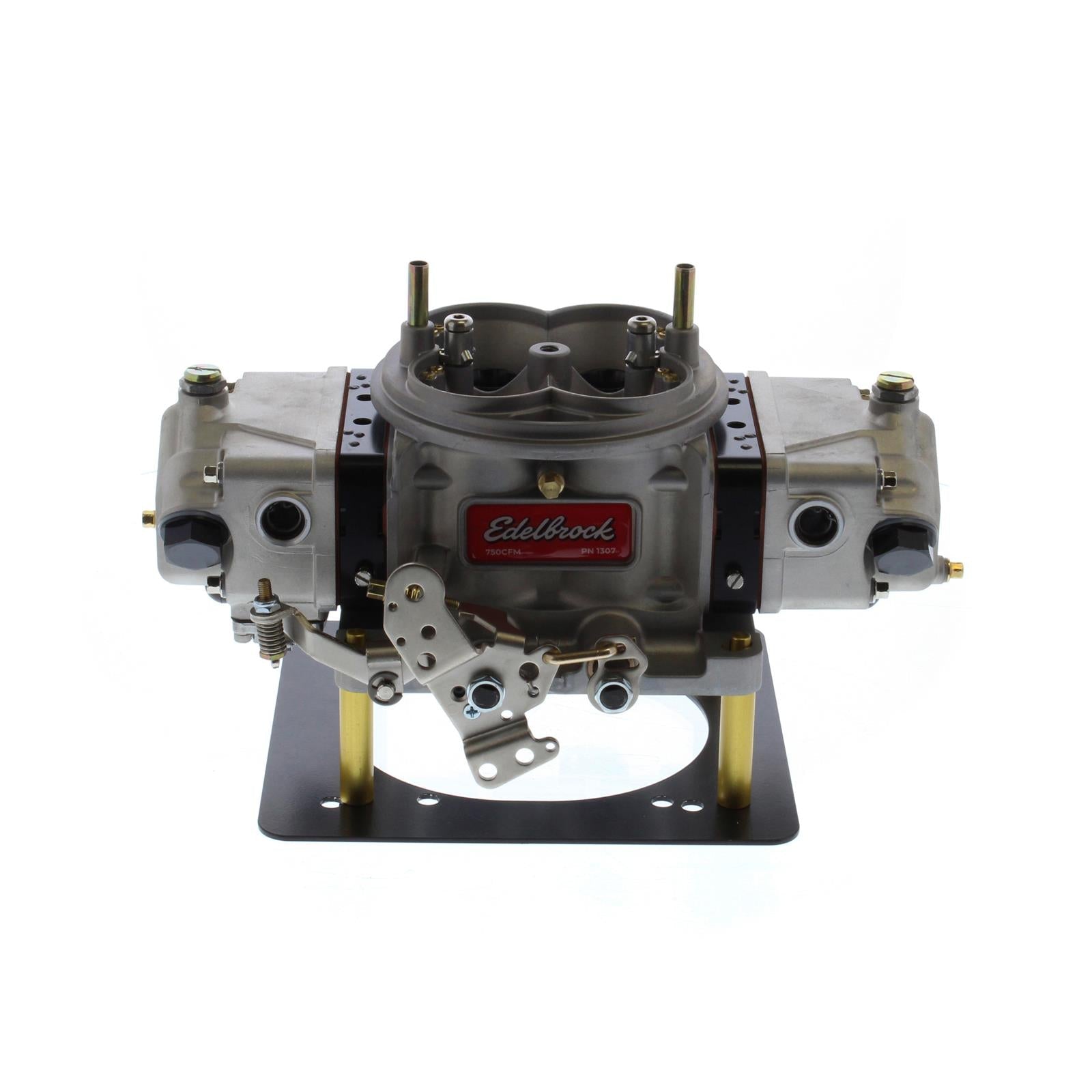

Edelbrock VRS-4150 Race and Performance Carburetors 1307

The new line of Edelbrock VRS-4150 Race and Performance carburetors are packed with features that will appeal to racers, engine builders and carb tuners, as well as the hot street enthusiast looking to improve performance. The VRS-4150 carburetors are street friendly but race ready—and the one-piece, cast aluminum bodies fit all 4150 and 4500 carb flange manifolds—without requiring an adapter plate. With the new VRS Series carburetors many attributes, they make for easy tuning and great versatility in many applications. They are available in 650, 750, 850, and 950 cfm models, select the model suited to your application needs.

Features, specs, and benefits:

* A street throttle arm, PTFE-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to the carburetor that are ideal for any user
* Multiple vacuum hook-ups keep this carburetor usable on the street but still ready for the track with larger capacity fuel bowls and four circuit billet metering blocks with screw-in emulsion bleeds
* The 20 percent larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles
* The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration
* Users are able to externally adjust idle bypass air as the adjustment screws are accessible without removing the air cleaner/scoop
* The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts
* Normally found only in high end racing carbs, the VRS includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response
* For greater control at high rpm, the high speed/main fuel circuit is split into two bleed circuits—one each for the lower and upper sections
* As an additional feature, the power valves are located on both primaries and secondary's that support optimized jetting—the power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfiresBrand: Edelbrock
Manufacturer's Part Number: 1307
Part Type: Carburetors
Product Line: Edelbrock VRS-4150 Race and Performance Carburetors
HP Direct Part Number: EDL-1307
UPC: 00085347013074
CFM: 750
Fuel Category: Gasoline
Remanufactured: No
Number of Barrels: 4
Carburetor Flange: Square bore/Dominator
Choke: None
Secondary Type: Mechanical
Fuel Inlet: Dual
Carburetor Color: Satin
Ford Kickdown: No
Booster Type: Down-leg
Throttle Linkage Type: Universal
Carburetor Height (in.): 3.750 in.
Quantity: Sold individually.
Notes: Carburetor includes 4-circuit billet metering blocks, externally adjustable floats with 4-corner idle. The -6AN fuel inlets can be moved to either right or left side.
