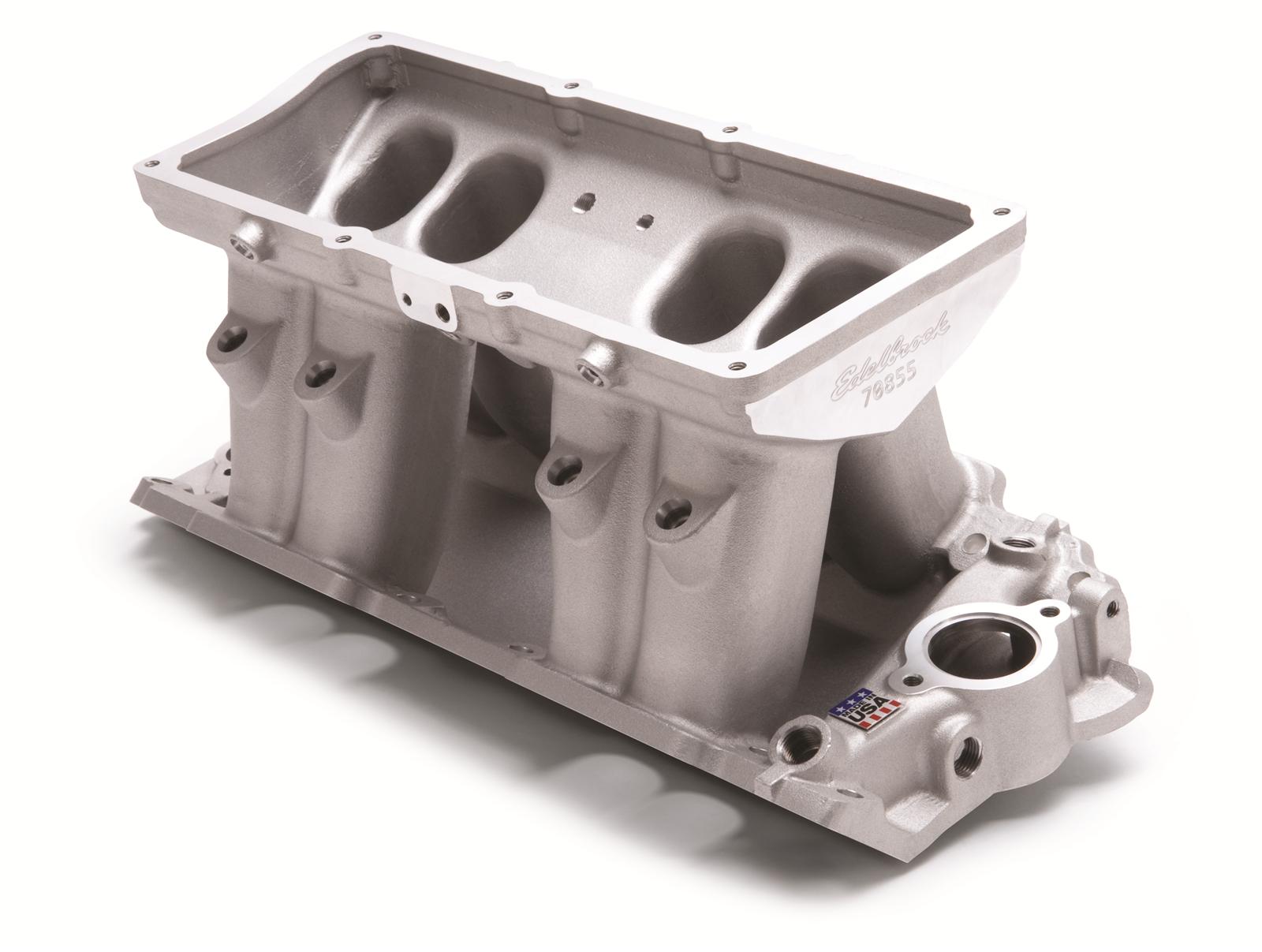

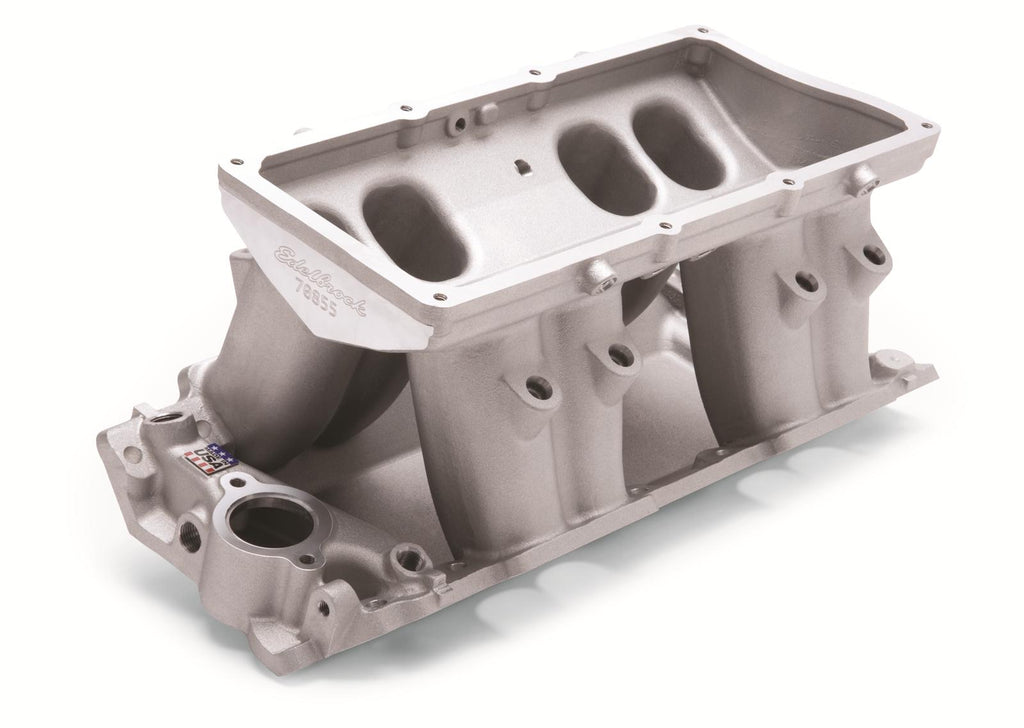

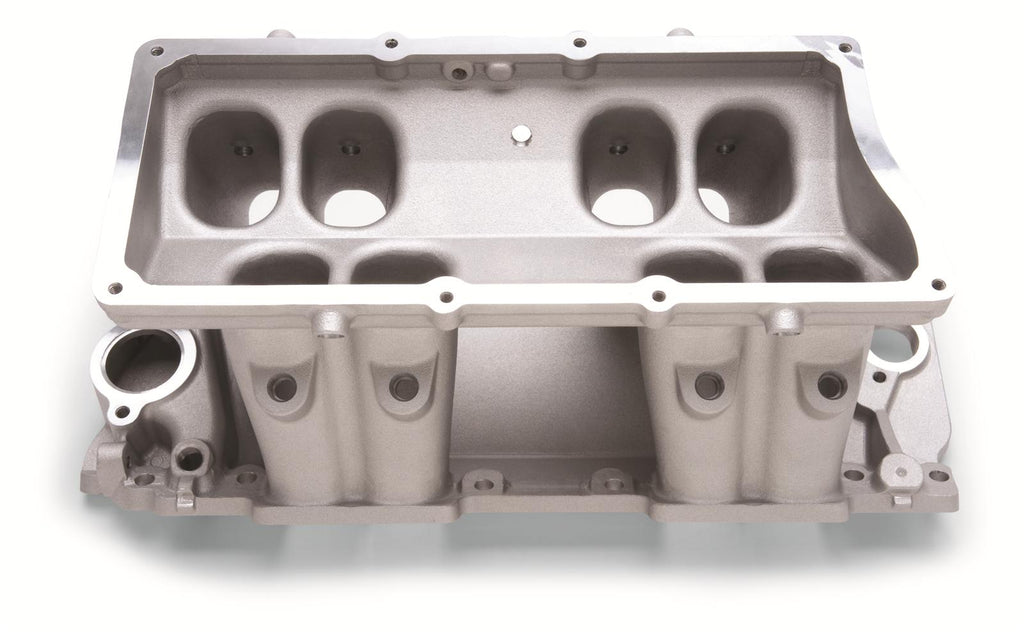

Edelbrock Victor Tunnel Ram Intake Manifold Bases 70855

Edelbrock Victor tunnel ram intake manifold bases are a modern updated design to their very successful Victor Ram 2-R Tunnel Ram intakes, which were first released over 35 years ago. They are designed for use with 468-582 C.I.D. standard-deck Chevrolet V8 engines with conventional rectangular port cylinder heads. This new and improved design has 7 in. long runners with close to 5.5 square-inches at the plenum, making them 25 percent larger than the current Victor Ram 2-R Tunnel Ram bases. These are the ideal intake manifolds for any modern high horsepower demanding application.Brand: Edelbrock
Manufacturer's Part Number: 70855
Part Type: Intake Manifolds, Fuel Injected
Product Line: Edelbrock Victor Tunnel Ram Intake Manifold Bases
HP Direct Part Number: EDL-70855
UPC: 085347708550
Cylinder Head Configuration: Edelbrock Victor Race
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 4,500-8,500
Intake Section Included: Base only
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: No
Supplemental Bosses Cast-In: Yes
Supplemental Bosses Machined: Yes
Supplemental Boss Quantity: Eight
Runners Included: Yes
Runners Removable: No
Plenum Material: Aluminum
Plenum Finish: Natural
Base Material: Aluminum
Base Color: Natural
Remanufactured: No
Quantity: Sold individually.
Notes: Requires the use of an upper manifold.
