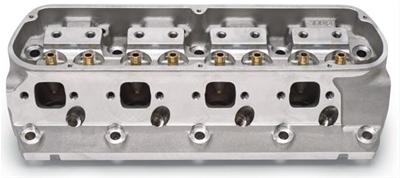

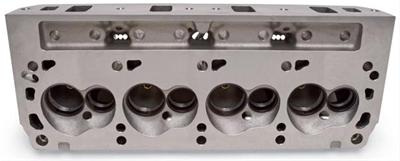

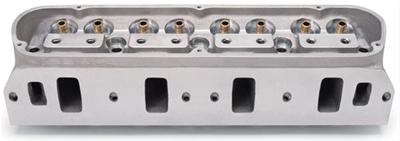

Edelbrock Victor Series Race Cylinder Heads 77219

Victor and Victor Jr. Series aluminum heads are designed using the latest induction technology for outstanding performance and maximum horsepower. They're ideal for the small block Ford Windsor, and small and big block Chevys. Victor Jr. Series heads are perfect for many types of competition and ultra-high performance street machines. They include threaded inserts (heli-coil) in rocker stud and exhaust manifold bolt holes. They have hardened seats and bronze valve guides for strength and durability, and a minimum 9/16 in. deck thickness and machined valve cover rails provide a more consistent gasket seal. Victor Series heads are a step above the rest, for even greater gains in horsepower. All of these heads feature reinforced rocker stud bosses, high-flow intake/exhaust ports, and specially contoured combustion chambers.Brand: Edelbrock
Manufacturer's Part Number: 77219
Part Type: Cylinder Heads
Product Line: Edelbrock Victor Series Race Cylinder Heads
HP Direct Part Number: EDL-77219
UPC: 085347772193
Combustion Chamber Volume (cc): 47
Intake Runner Volume (cc): 240cc
Exhaust Runner Volume (cc): 80cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.125 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Raised
Exhaust Port Shape: Square
Exhaust Port Location: Raised
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.625 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: In line 15 degree valve configuration. Intake ports raised .380" with extended flange to maintain proper alignment with standard intakes. Requires shaft mount rockers which are available through T&D or Jesel, special header flanges, custom length pushrods and special aftermarket pistons. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.
