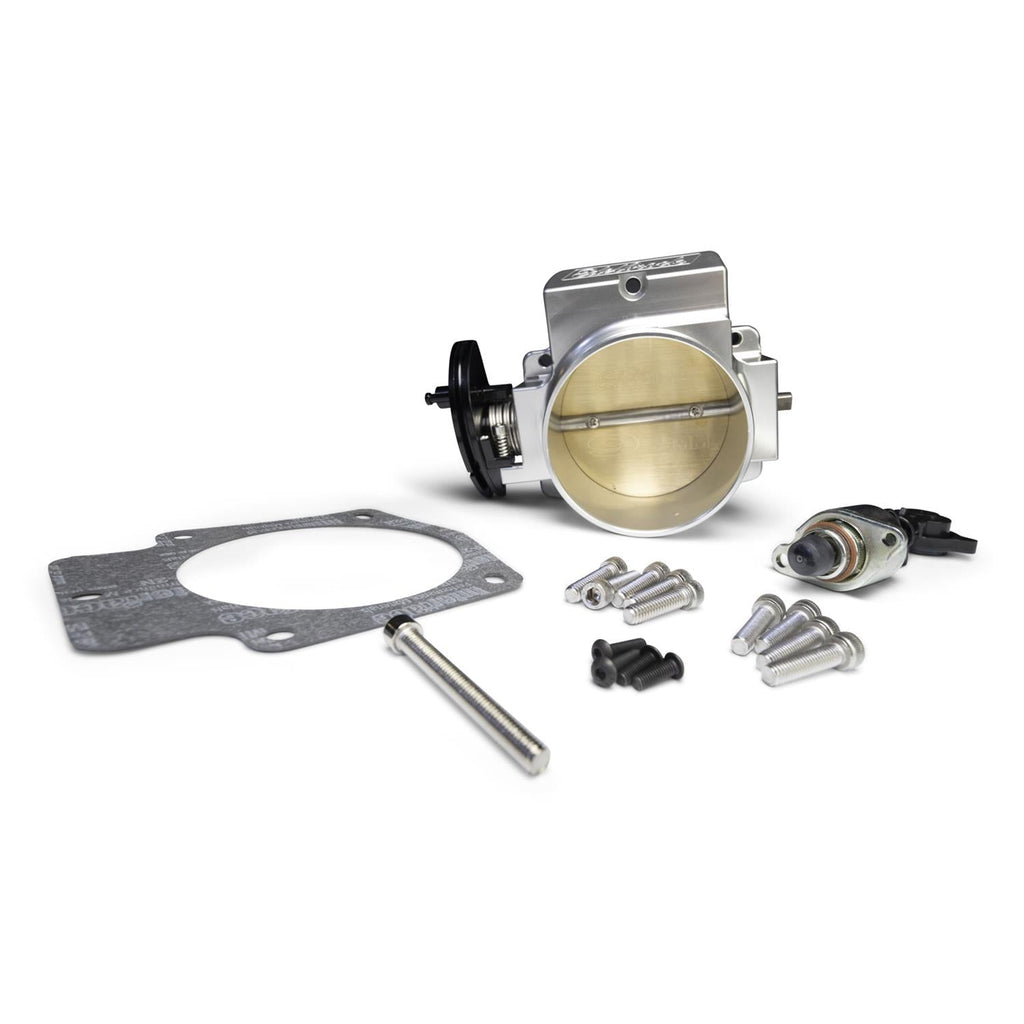

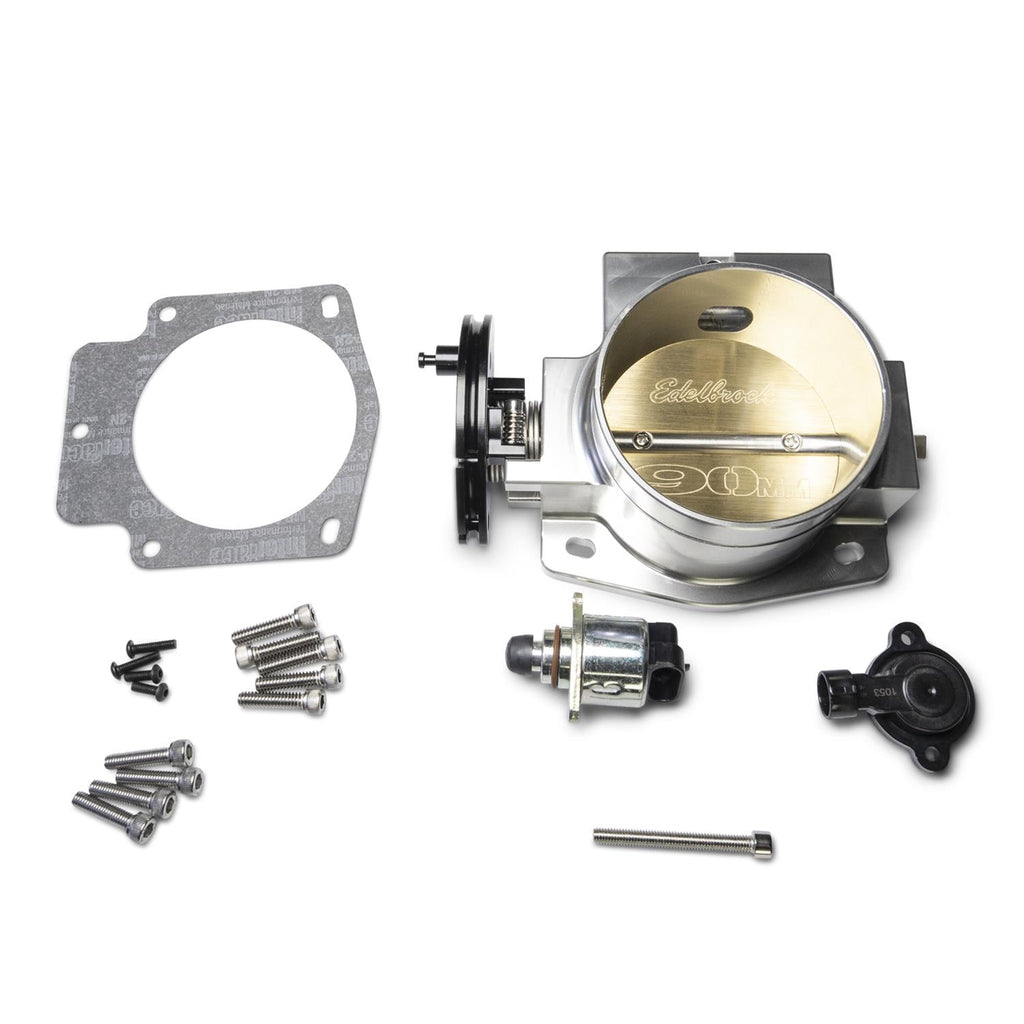

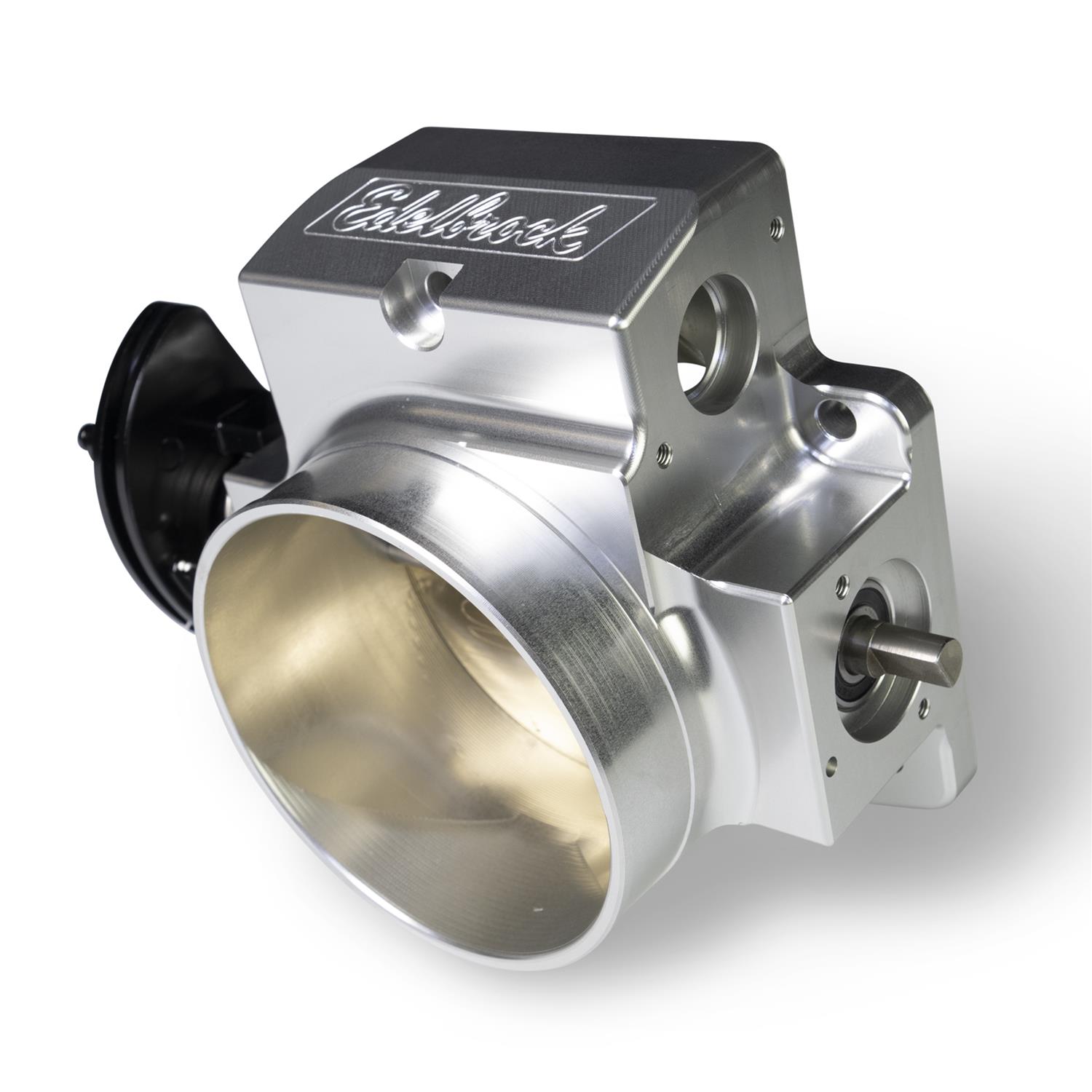

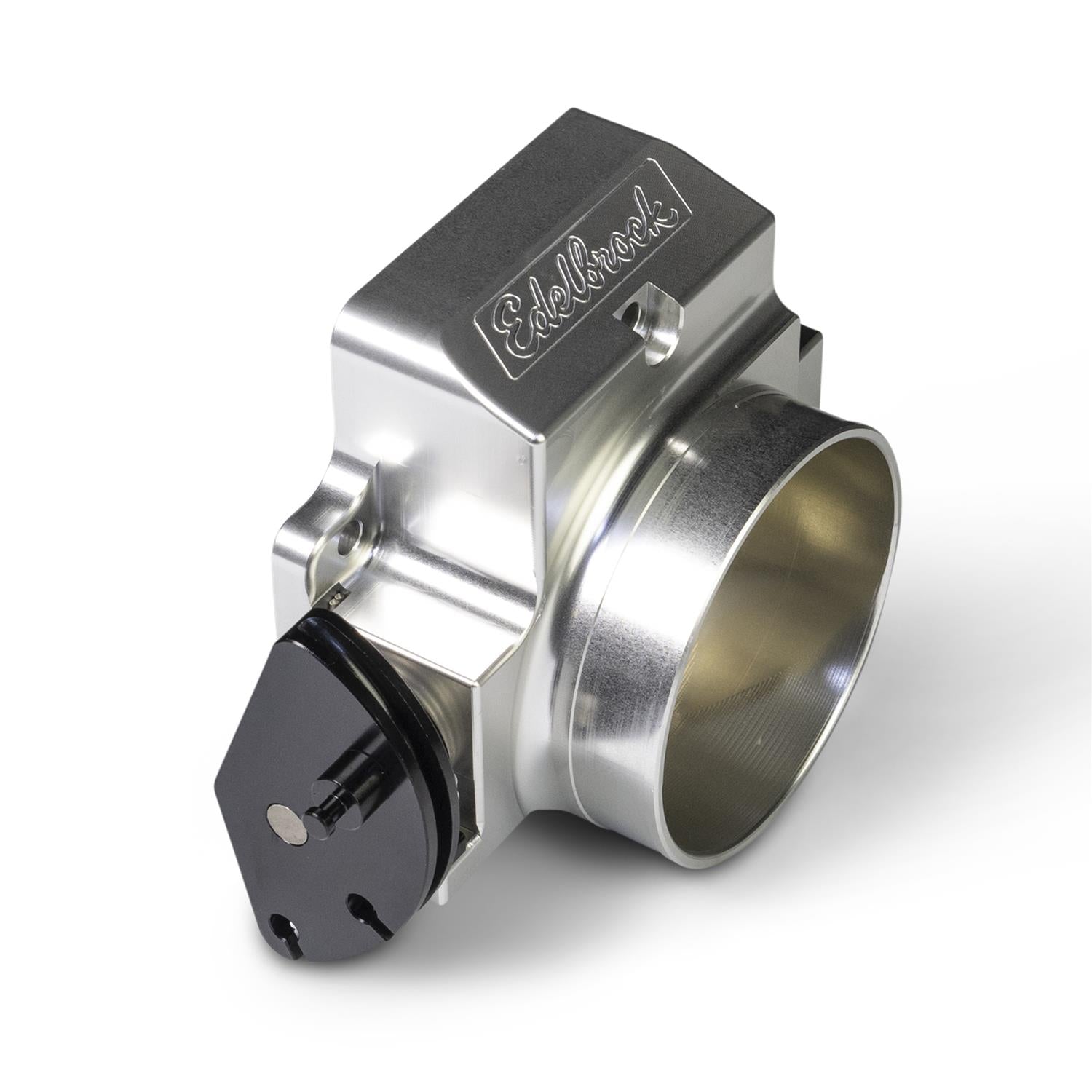

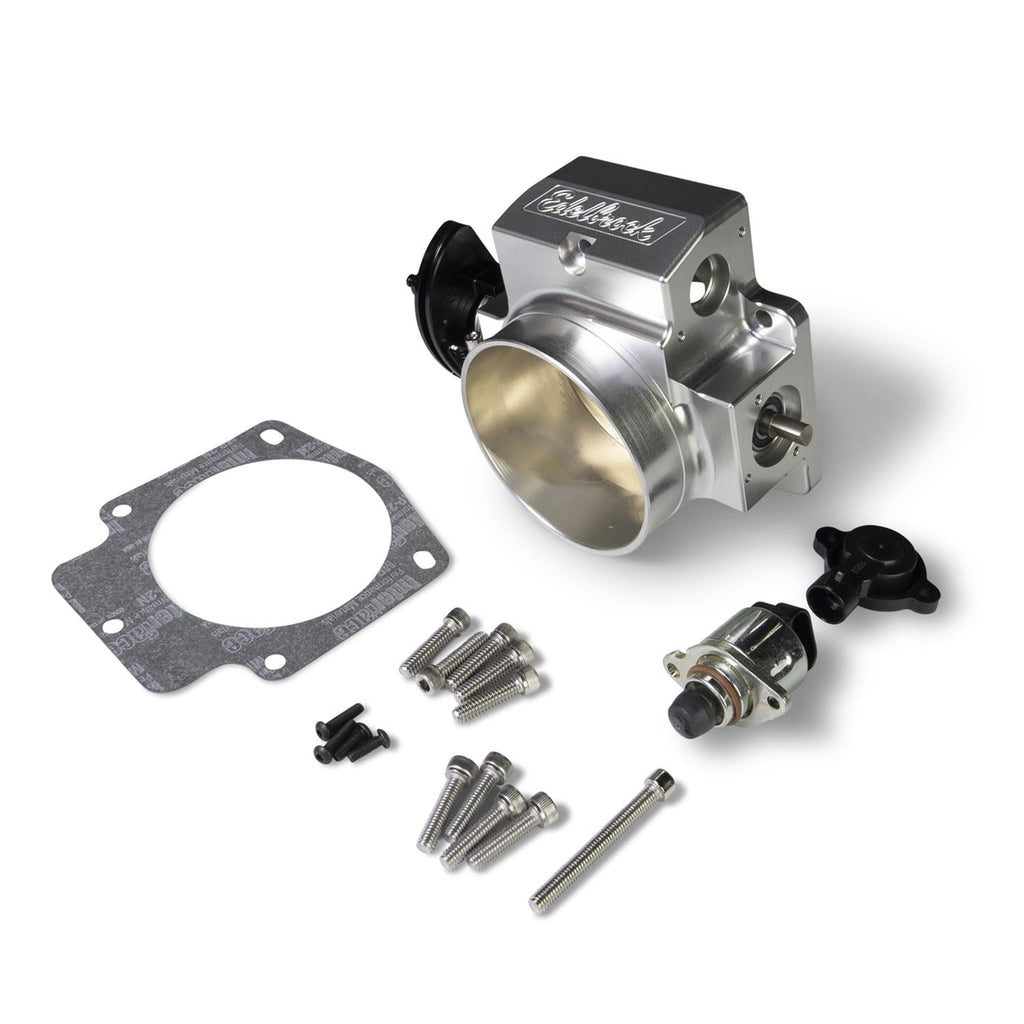

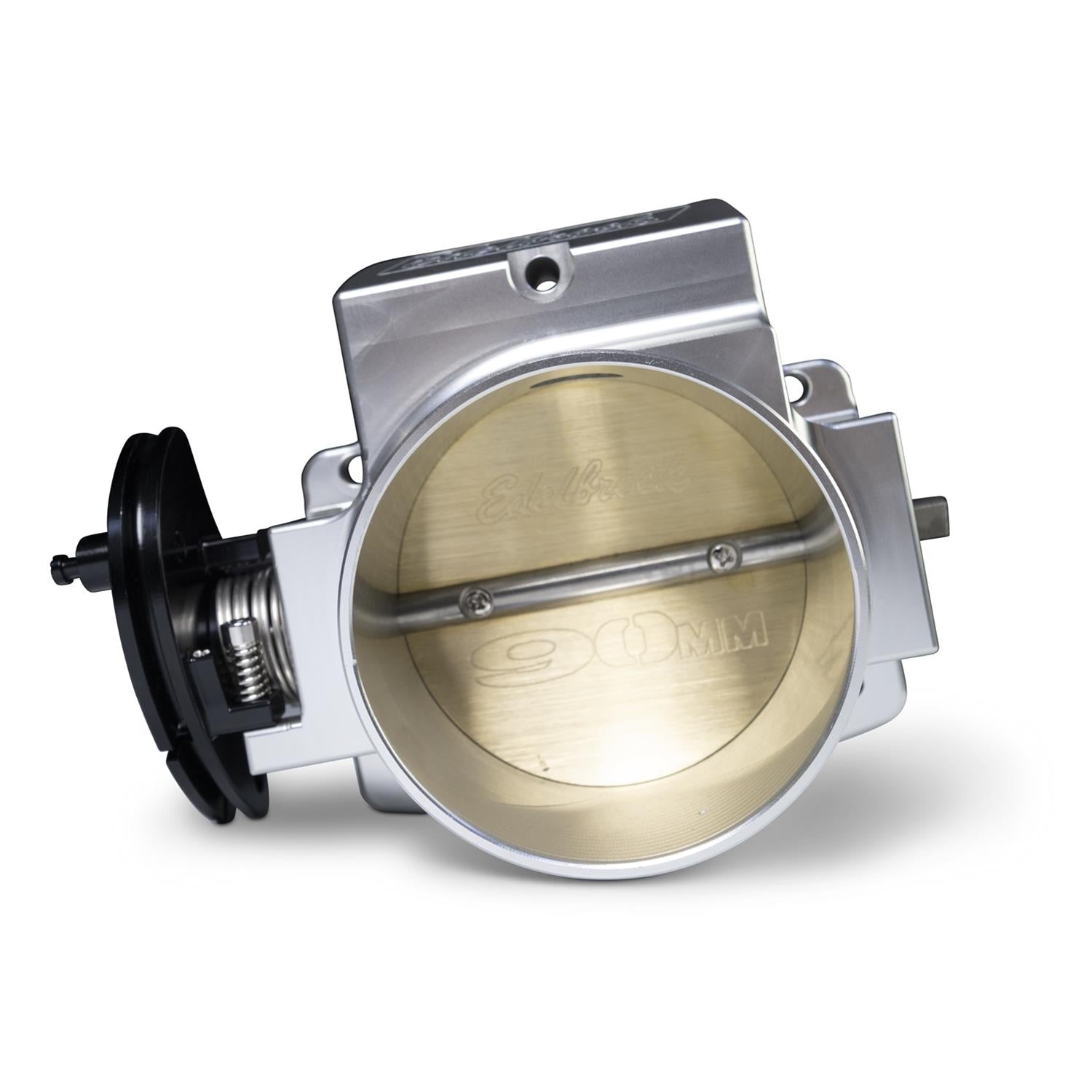

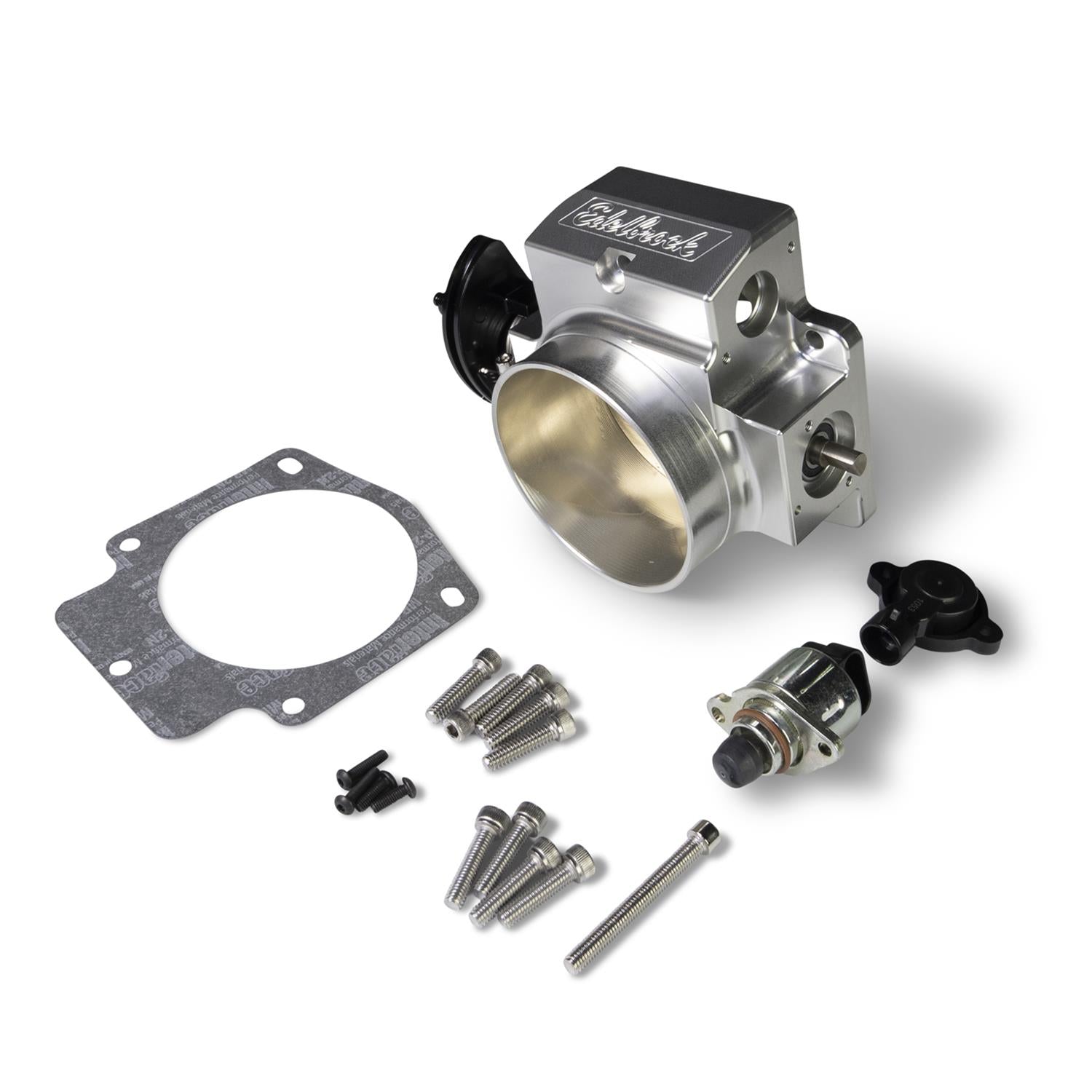

Edelbrock Victor LS Throttle Bodies 3970

Edelbrock Victor LS throttle bodies are constructed from billet aluminum and come complete with TPS and IAC, maximizing performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies.

With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control.
Brand: Edelbrock
Manufacturer's Part Number: 3970
Part Type: Throttle Bodies
Product Line: Edelbrock Victor LS Throttle Bodies
HP Direct Part Number: EDL-3970
UPC: 00085347039708
Throttle Body Style: Multi-port injection, MPI
Throttle Body Actuation: Cable
Venturi Quantity: 1
Venturi Diameter (mm): 90.00mm
Airflow Rate (cfm): 1,000 cfm
TPS Sensor Included: Yes
IAC Motor Included: Yes
Gaskets Included: Yes
Hardware Included: Yes
Injectors Included: No
Throttle Body Material: Billet aluminum
Throttle Body Color: Clearcoat
Remanufactured: No
Quantity: Sold individually.
Notes: Fits air filter tubing size 3.750 in.
