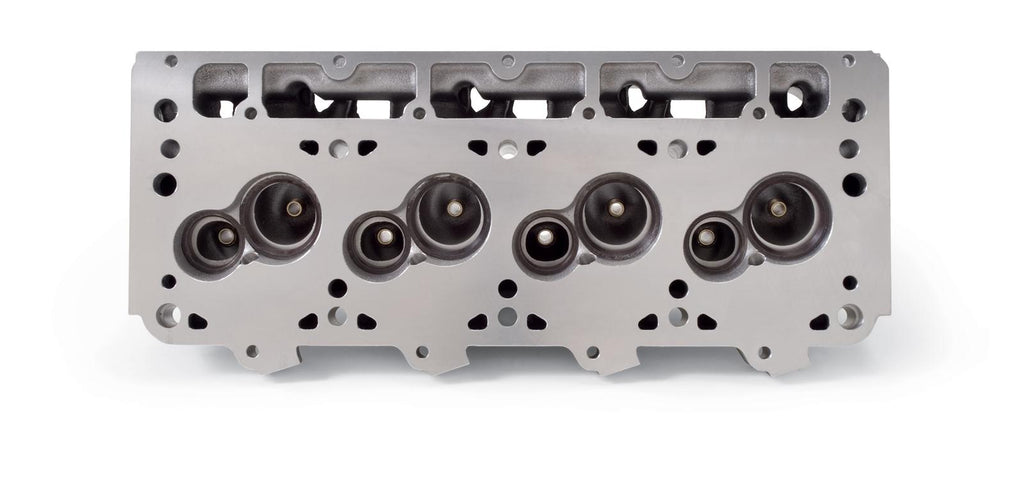

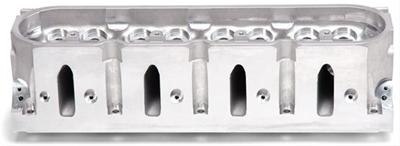

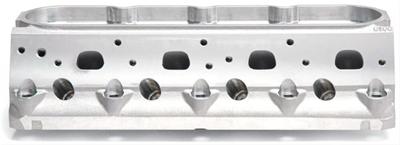

Edelbrock Victor LS-R Pro-Port Cylinder Heads 770469

Edelbrock Victor LS-R Pro-Port cylinder heads are hip to racing! These bare heads are designed to maximize the potential of your race-oriented LSX block. They are processed with a technique called Hot Isostatic Pressing (HIP) that results in an incredibly strong, super-dense casting with three times the fatigue life! These un-ported versions of the Edelbrock Victor series heads are cast in the USA with extra-thick walls to accommodate professional custom CNC porting. A true canted valve design offers the utmost in port flow and combustion efficiency with a 2-valve design. And, these Victor LS-R bare heads use the GM SB2 valve cover footprint required by the added width of the canted valve layout. The stock exhaust bolt pattern is retained and magnesium-bronze valve guides are included, but not installed. Get hip to Edelbrock Pro-Port and their Victor LS-R bare cylinder heads.Brand: Edelbrock
Manufacturer's Part Number: 770469
Part Type: Cylinder Heads
Product Line: Edelbrock Victor LS-R Pro-Port Cylinder Heads
HP Direct Part Number: EDL-770469
UPC: 085347995219
Combustion Chamber Volume (cc): 25
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.250 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.680 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 8.7/3.2
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Cylinder Head Color: Natural
Steam Holes Drilled: No
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Heads are Hot Isostatic Pressing or HIP processed for optimum strength. Valve guides included but not installed. Heads will require professional preparation, including CNC porting before use.
