Description

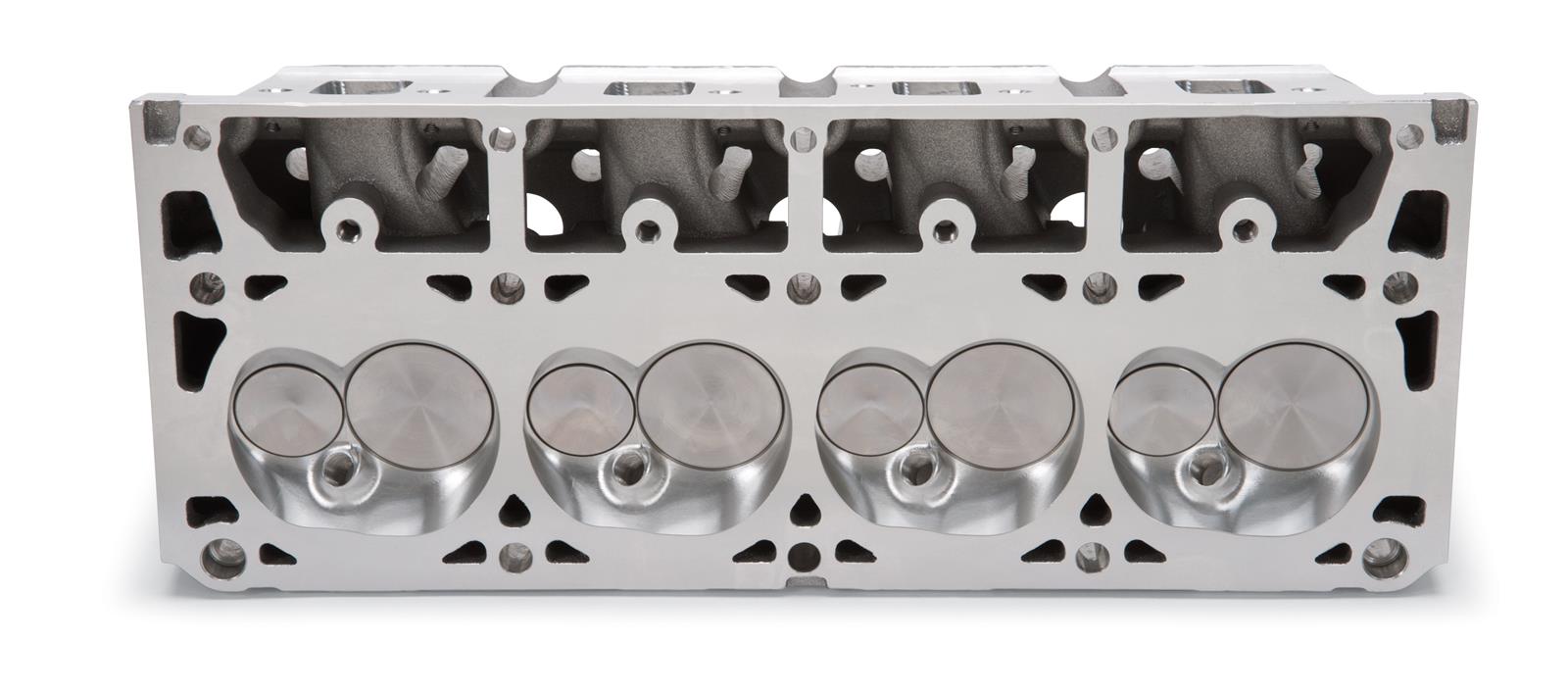

Edelbrock Victor Jr. CNC cylinder heads are a CNC-ported version of Edelbrock's Performer RPM heads. These cylinder heads feature a high velocity port design that's ideal for Super Gas, Super Comp, Hi-Po Marine, all-out street and Pro Brackets. Victor Jr. CNC cylinder heads have smaller than stock 11/32 in. valve stems to promote excellent flow and lighter valve weight.Brand: Edelbrock
Manufacturer's Part Number: 61349
Part Type: Cylinder Heads
Product Line: Edelbrock Victor Jr. CNC Cylinder Heads
HP Direct Part Number: EDL-61349
UPC: 085347613496
Combustion Chamber Volume (cc): 69
Intake Runner Volume (cc): 280cc
Exhaust Runner Volume (cc): 85cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.200 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.680 in.
Outside Diameter of Outer Spring (in.): 1.300 in.
Damper Spring Included: No
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Exhaust Valve Angle: 11
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: New design, Canted valve similar to LT1 Gen V heads, Utilizes stock rocker arms. LSX block with 6-bolt flange.
CARB EO Number(s): D-215-98
Emissions: California EO Approved
Manufacturer's Part Number: 61349
Part Type: Cylinder Heads
Product Line: Edelbrock Victor Jr. CNC Cylinder Heads
HP Direct Part Number: EDL-61349
UPC: 085347613496
Combustion Chamber Volume (cc): 69
Intake Runner Volume (cc): 280cc
Exhaust Runner Volume (cc): 85cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.200 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.680 in.
Outside Diameter of Outer Spring (in.): 1.300 in.
Damper Spring Included: No
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Centerbolt
Accessory Bolt Holes Drilled: Yes
Exhaust Valve Angle: 11
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: New design, Canted valve similar to LT1 Gen V heads, Utilizes stock rocker arms. LSX block with 6-bolt flange.
CARB EO Number(s): D-215-98
Emissions: California EO Approved
