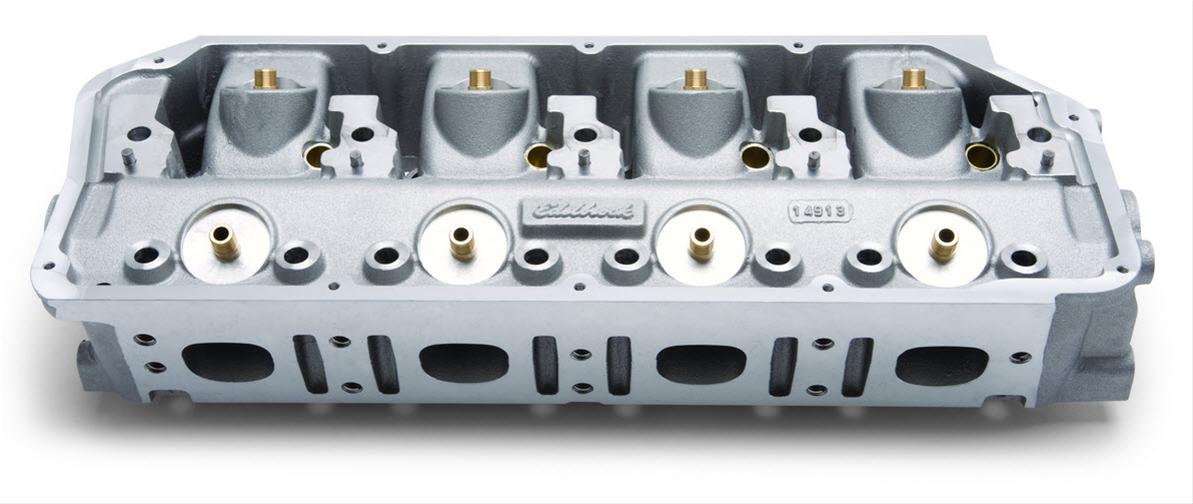

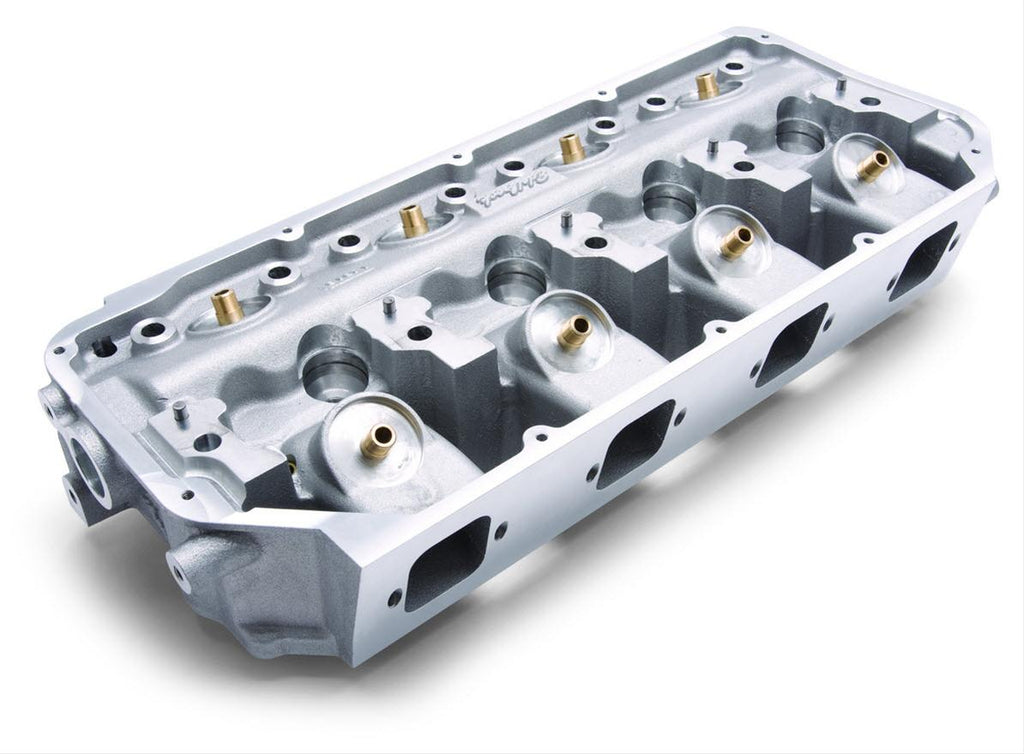

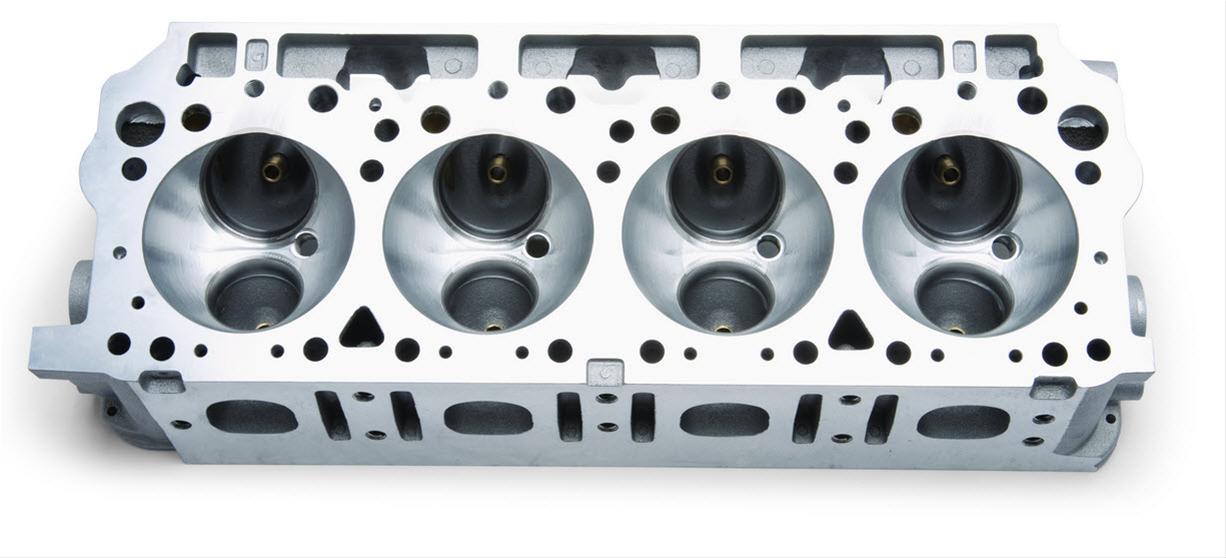

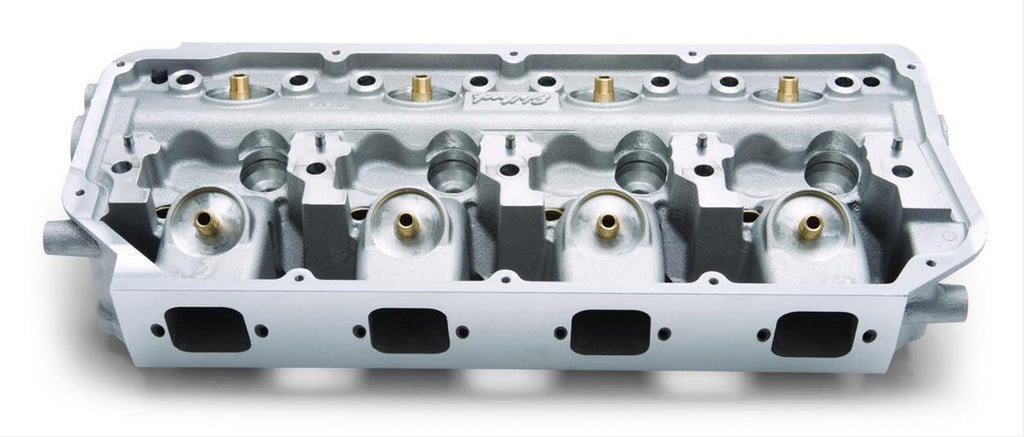

Edelbrock Victor Jr. CNC Chrysler Cylinder Heads 61169

Edelbrock Victor Jr. CNC Chrysler cylinder heads are designed for high output Chrysler 426-572 HEMI engines. They feature fully CNC ported combustion chambers and CNC blended seats for optimal air flow performance. These heads also feature a revised exhaust valve angle to accommodate larger intake valves and feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.Brand: Edelbrock
Manufacturer's Part Number: 61169
Part Type: Cylinder Heads
Product Line: Edelbrock Victor Jr. CNC Chrysler Cylinder Heads
HP Direct Part Number: EDL-61169
UPC: 085347611690
Combustion Chamber Volume (cc): 170
Intake Runner Volume (cc): 245cc
Exhaust Runner Volume (cc): 105cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: No
Exhaust Valves Included: No
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: No
Valve Seats Machined: No
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: These heads are supplied with reamed and semi-finished valve stem guides. They will require finishing on the valve stem guides and a valve job before installation.
