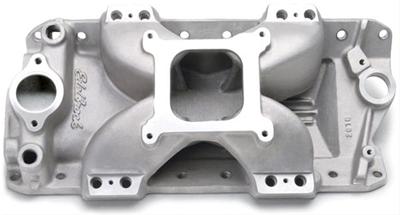

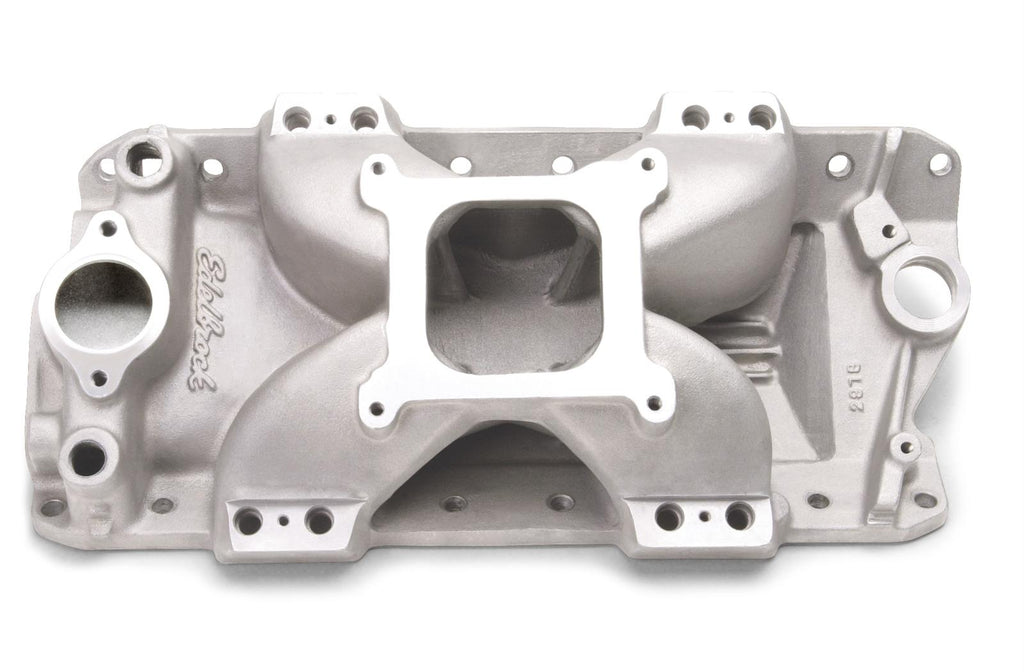

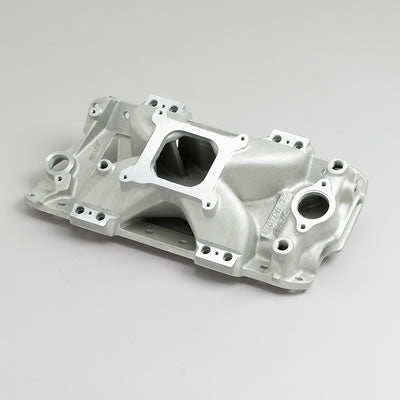

Edelbrock Victor E EFI Intake Manifolds 29785

Ideal for high-rpm drag race applications, these Victor E EFI manifolds have a larger and deeper plenum than other manifolds. They provide maximum power in the higher rpm range for engines with standard port location iron and aluminum heads. The runners have a tapered cross-section, and plenty of material at the manifold port exit allows port matching to the small port heads used in NHRA Super Stock classes. The large plenum and runner volume of these manifolds makes them ideal for alcohol-fueled applications.Brand: Edelbrock
Manufacturer's Part Number: 29785
Part Type: Intake Manifolds, Fuel Injected
Product Line: Edelbrock Victor E EFI Intake Manifolds
HP Direct Part Number: EDL-29785
UPC: 085347297856
Cylinder Head Configuration: Stock
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 4,500-8,500
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: No
Supplemental Bosses Cast-In: Yes
Supplemental Bosses Machined: No
Supplemental Boss Quantity: Eight
Runners Included: No
Runners Removable: No
Plenum Material: Aluminum
Plenum Finish: Natural
Base Material: Aluminum
Base Color: Natural
Remanufactured: No
Quantity: Sold individually.
