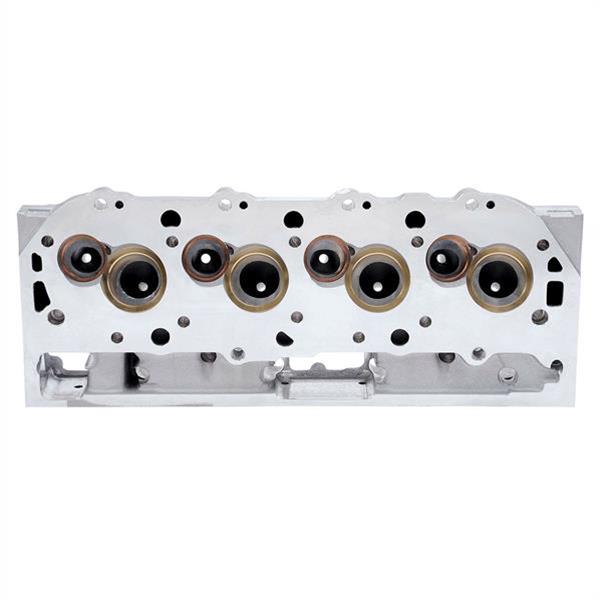

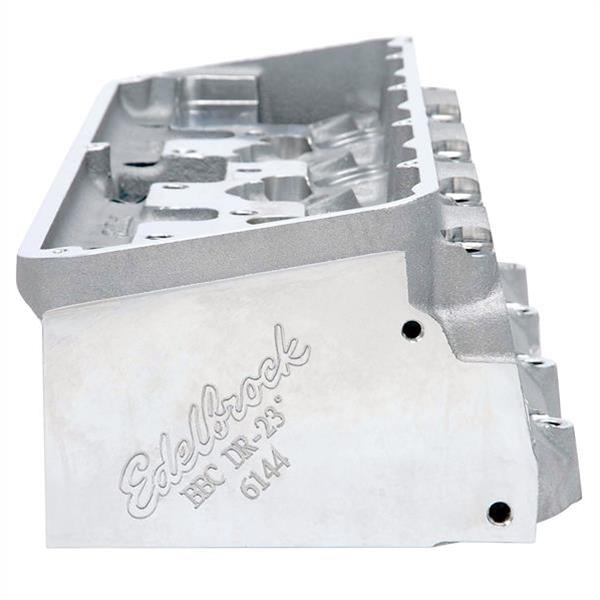

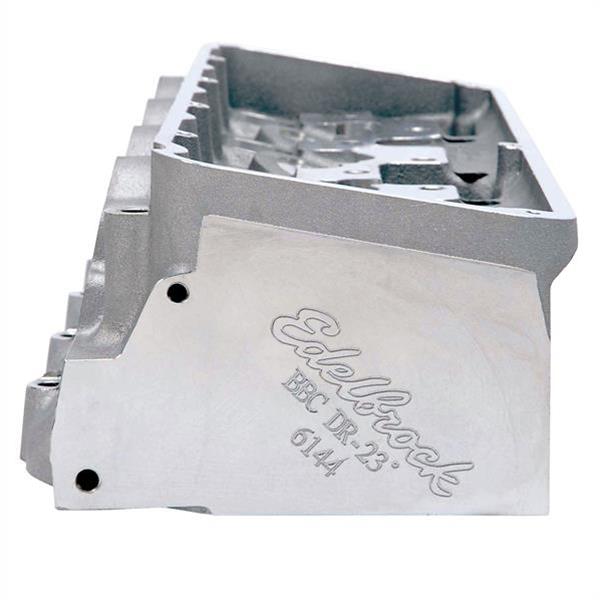

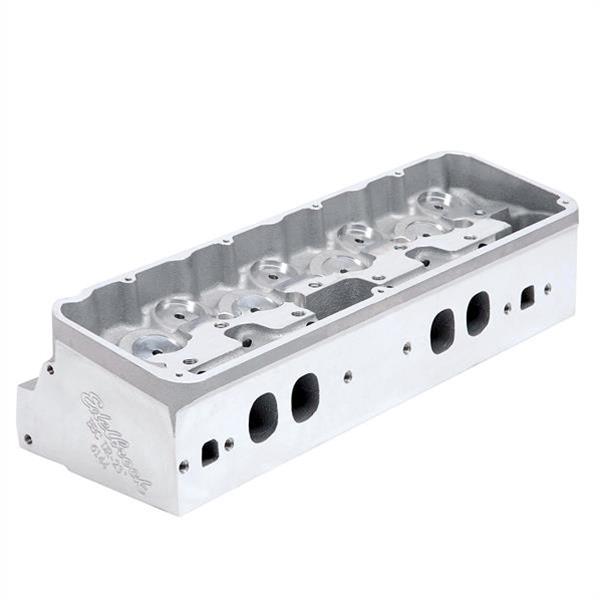

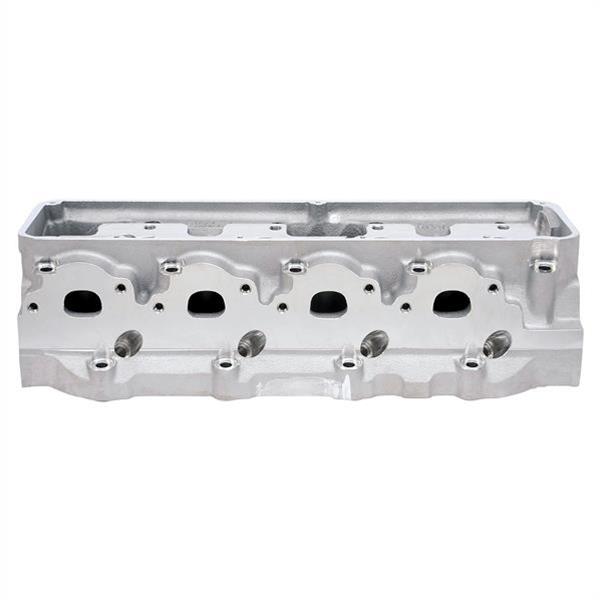

Edelbrock Victor DR-23 Degree Pro Port Raw Cylinder Heads 614469

Edelbrock Victor DR-23 Degree Pro Port raw cylinder heads are ready for finishing by the professional cylinder head porter or engine builder. They have as-cast ports with enough metal thickness to allow for CNC porting to different sizes. The heads are available for a variety of Chevrolet engine applications.Brand: Edelbrock
Manufacturer's Part Number: 614469
Part Type: Cylinder Heads
Product Line: Edelbrock Victor DR-23 Degree Pro Port Raw Cylinder Heads
HP Direct Part Number: EDL-614469
UPC: 085347997930
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.600 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Location: Raised
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: No
Intake Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: No
Valve Seat Machine Style: Un-machined seat
Valve Seat Material: Copper bronze alloy
Cylinder Head Color: Natural
Steam Holes Drilled: No
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.

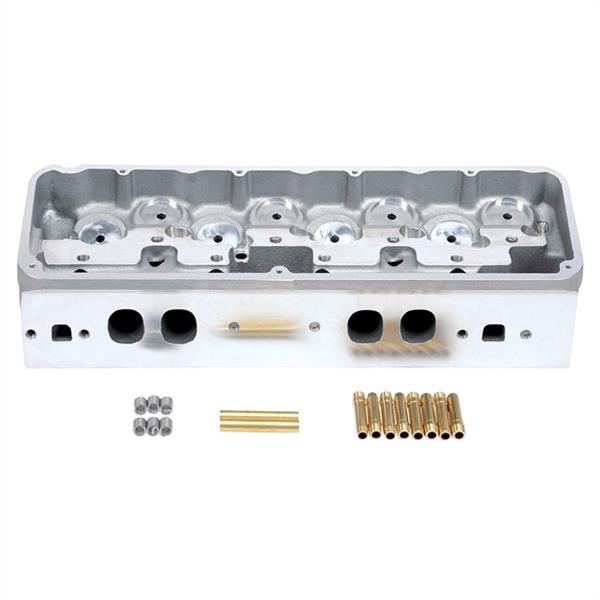

Notes: Utilizes the EDL-2896 and EDL-2897 intakes, with a rolled deck for a 23 degree valve angle. Includes valve guides, bolt tunes and rocker helicoils not installed. Requires use of EDL-4259 valve covers or custom sheet metal covers.
