Edelbrock Universal EFI Sump Fuel Systems 36032

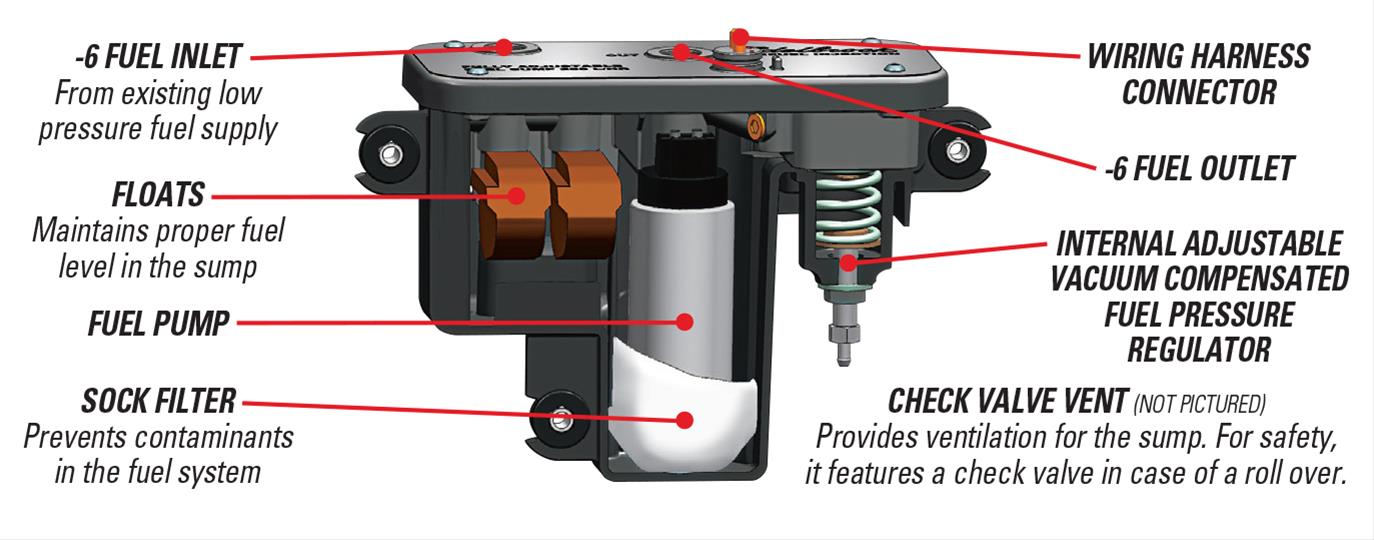

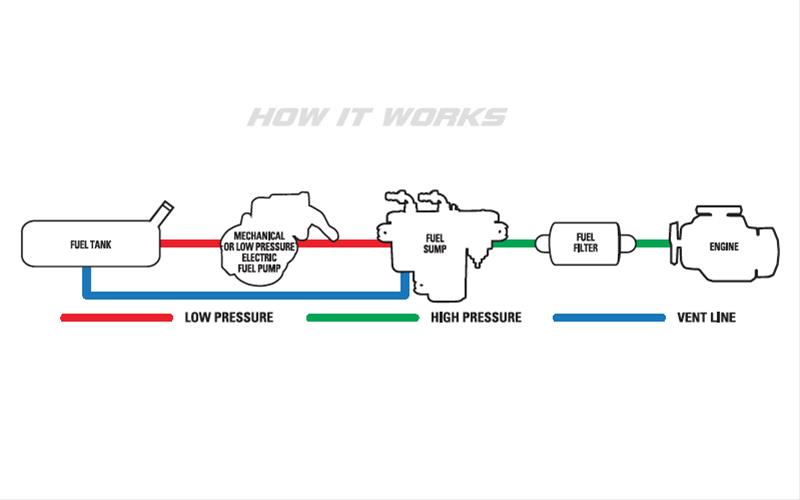

Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump.

These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system.

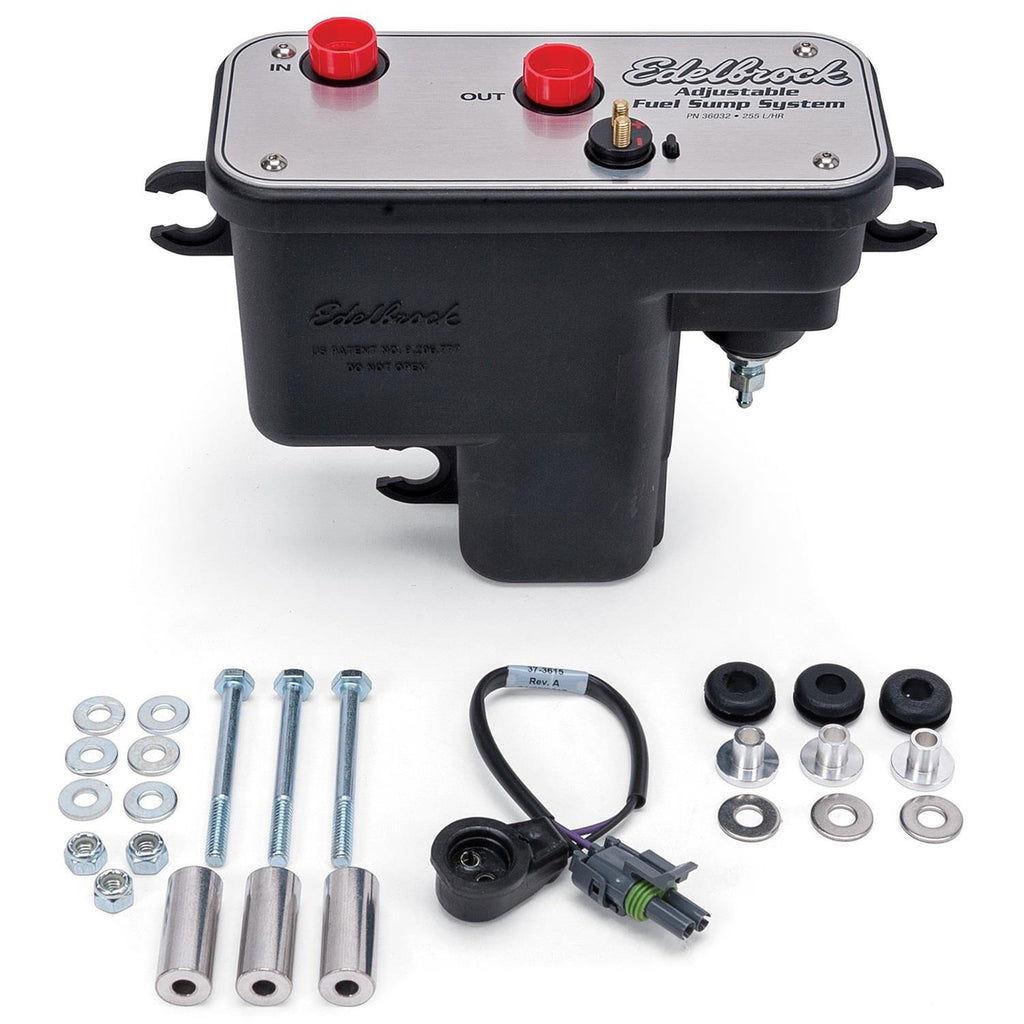

Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation.
Brand: Edelbrock
Manufacturer's Part Number: 36032
Part Type: Surge Tanks
Product Line: Edelbrock Universal EFI Sump Fuel Systems
HP Direct Part Number: EDL-36032
UPC: 085347360321
Fuel Pump Included: Yes
Flow Rate: 67 gph/255 lph
Maximum Pressure (psi): 90 psi
Inlet Attachment: Female O-ring
Fuel Pump Inlet Size: -6 AN
Inlet Quantity: 1
Outlet Attachment: Female O-ring
Fuel Pump Outlet Size: -6 AN
Outlet Quantity: 1
Sending Unit Included: No
Gasket Included: No
Fuel Pressure Regulator Included: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Wiring Harness Included: Yes

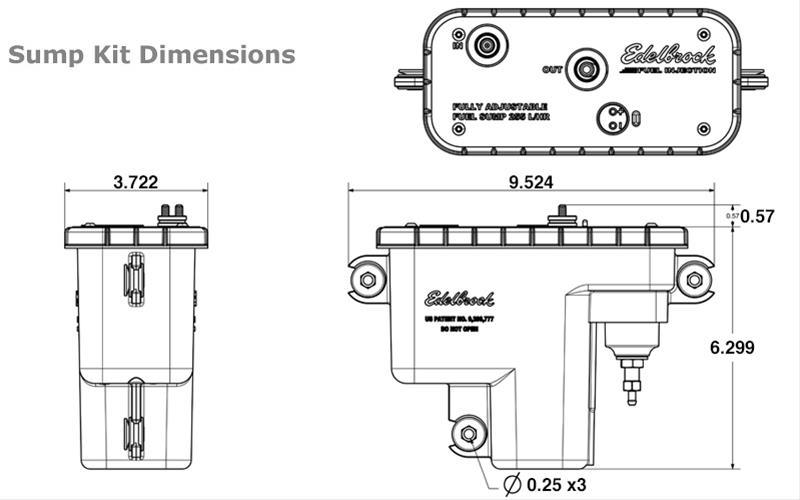

Length (in.): 9.000 in.
Width (in.): 3.750 in.
Height (in.): 10.000 in.
Quantity: Sold individually.
