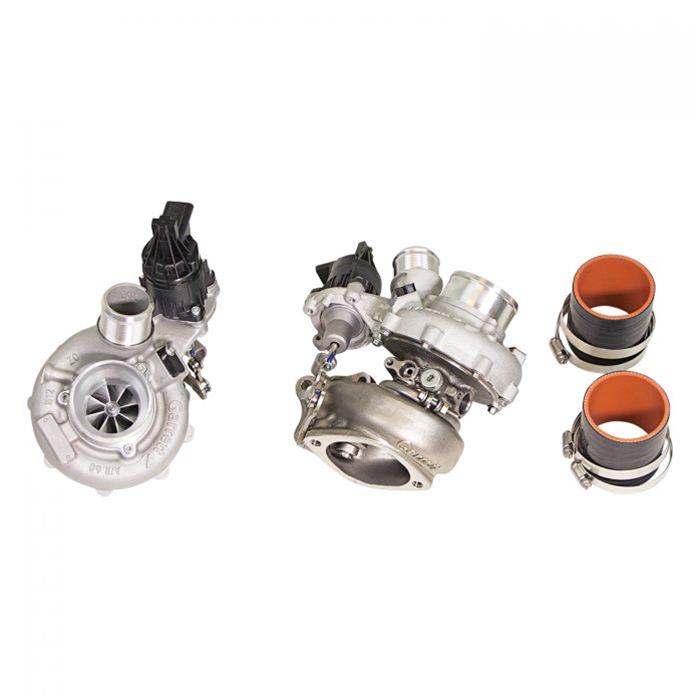

Edelbrock Twin-Force Stage 1-2 Turbochargers 158337

Edelbrock Twin-Force Stage 1-2 Turbo System Upgrade Kits will upgrade your Edelbrock Twin-Force Stage 1 Power Package to a Stage 2 Turbo System by adding driver and passenger turbochargers. Edelbrock's engineers collaborated with Garrett on the design of all new turbos for the 3.5L EcoBoost trucks. These new direct bolt-in turbos incorporate the latest in turbocharger technology, offering a 54 percent increase in airflow over the factory turbos. A 60mm billet compressor wheel produces great improvements in compressor efficiency and flow. The 50mm Inconel turbine wheel and larger .45 A/R stainless steel turbine housing result in a 52 percent increase in turbine flow. The 2.75 in. compressor inlets are 38 percent larger than the factory turbos, complementing Edelbrock's high-flow turbo inlet piping. When combined with Edelbrock's larger Intercooler, air inlet tubes, and high- flow air filter, these turbochargers offer huge increases in power potential for this application.Brand: Edelbrock
Manufacturer's Part Number: 158337
Part Type: Turbochargers
Product Line: Edelbrock Twin-Force Stage 1-2 Turbochargers
HP Direct Part Number: EDL-158337
UPC: 085347897261
Turbine Housing Inlet Flange: Stock
Turbine Housing Outlet Flange: Stock
Turbocharger Style: Stock
Wastegate Location: External
Compressor Wheel Inducer Size: 60.00mm
Turbine Wheel Exducer Size: 50.00mm
Turbocharger Bearing Style: Journal bearing
Compressor Wheel Construction: Inconel
Volute Type: Divided
Turbocharger Cooling: Oil
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: Yes
Turbine Housing Material: Cast iron
Turbine Housing Finish: Natural
Compressor Outlet Style: Stock
Ported Compressor Housing: No
Wastegate Actuator Included: Yes
Exhaust Adapter Included: No
Intake Adapter Included: Yes
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold as a kit.
CARB EO Number(s): D-215-127
Emissions: California EO Approved
