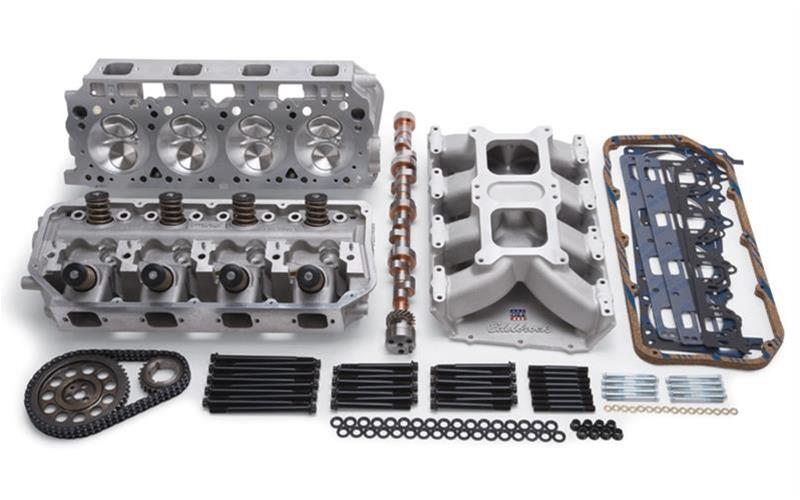

Edelbrock Total Power Package 705 HP Gen II HEMI Top-End Engine Kits 2052

Edelbrock Power Package concept is second to none. To make things easier in parts selection, Edelbrock has taken the guesswork out of top-end component selection by actually placing the power package components together in complete kits. They include almost everything you need to make serious horsepower. These kits are available with different cams, intakes, and heads to deliver the torque and horsepower you're looking for. Horsepower output will vary depending on combinations of accessories used.Brand: Edelbrock
Manufacturer's Part Number: 2052
Part Type: Top End Kits
Product Line: Edelbrock Total Power Package 705 HP Gen II HEMI Top-End Engine Kits
HP Direct Part Number: EDL-2052
UPC: 085347020522
Cylinder Heads Included: Yes
Camshaft Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Duration at 050 inch Lift: 262 int./266 exh.
Advertised Duration: 332 int./336 exh.
Valve Lift with Factory Rocker Arm Ratio: 0.628 int./0.608 exh.
Intake Manifold Included: Yes
Fuel Delivery Style: Carbureted
Carburetor Included: No
Throttle Body Included: No
Fuel Rails Included: No
Fuel Injectors Included: No
Intake Material: Aluminum
Intake Color: Natural
Intake Style: Single plane
Intake Manifold Name: Edelbrock Dual-Quad HEMI
Timing Chain and Gears Included: Yes
Lifters Included: No
Gaskets Included: Yes
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Cylinder Head Color: Natural
Combustion Chamber Volume (cc): 170
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 245cc
Exhaust Runner Volume (cc): 105cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Intake Port Shape: Square
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Intake Valve Diameter (in.): 2.320 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.940 in.
Exhaust Valve Angle: 21.5
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in.): 1.540 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Valve Stem Seal Material: Viton ®
Rocker Arms Included: No
Rocker Arm Studs Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Pushrods Included: No
Valve Covers Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a kit.
Notes: Designed for 650+ HP 426-572 Gen II HEMI engines.
