Edelbrock Total Power Package 380 HP 289-302 SB Ford Performer RPM Top-End Engine Kits 20912

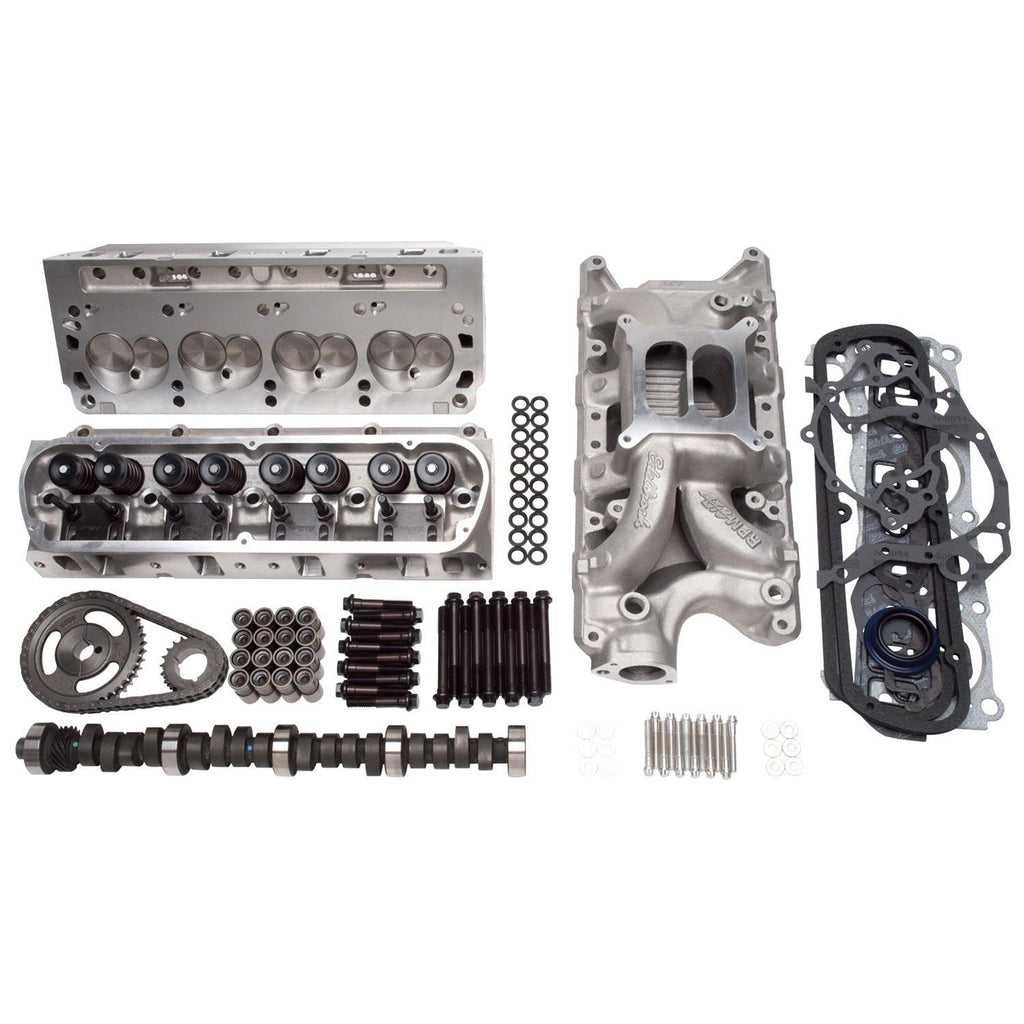

Edelbrock Total Power Package 380 hp 289-302 SB Ford Performer RPM top-end engine kits supply you with great all-in-one-box performance. Removing the guesswork and the hassles, these dyno-tested combinations provide just about everything you need to top off your engine. Edelbrock Performer RPM top-end kits deliver improved performance in street applications in the 1,500 to 6,500 rpm range. They include either a Performer RPM or RPM Air-Gap intake manifold, Performer RPM cylinder heads, pushrods, hydraulic cam and lifters, timing chain (in most cases), complete bolt kits, and an Edelbrock gasket set. To get great performance out of any engine, all the components must work together. Edelbrock has solved the parts-matching puzzle for you with their Total Power Packages.Brand: Edelbrock
Manufacturer's Part Number: 20912
Part Type: Top End Kits
Product Line: Edelbrock Total Power Package 380 HP 289-302 SB Ford Performer RPM Top-End Engine Kits
HP Direct Part Number: EDL-20912
UPC: 085347209125
Cylinder Heads Included: Yes
Camshaft Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Duration at 050 inch Lift: 227 int./234 exh.
Advertised Duration: 298 int./302 exh.
Valve Lift with Factory Rocker Arm Ratio: 0.520 int./0.520 exh.
Intake Manifold Included: Yes
Fuel Delivery Style: Carbureted
Carburetor Included: No
Throttle Body Included: No
Fuel Rails Included: No
Fuel Injectors Included: No
Intake Material: Aluminum
Intake Color: Natural
Intake Style: Dual plane
Intake Manifold Name: Edelbrock Performer RPM Air Gap
Carburetor Flange: Square bore
Timing Chain and Gears Included: Yes
Lifters Included: Yes
Gaskets Included: Yes
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Cylinder Head Color: Natural
Combustion Chamber Volume (cc): 60
CNC-Machined Combustion Chamber: No
Combustion Chamber Style: Kidney
Intake Runner Volume (cc): 170cc
Exhaust Runner Volume (cc): 60cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Intake Port Shape: Rectangular
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in.): 1.900 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Intake Valve Angle: 20
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Valve Stem Seal Material: Viton ®
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 3/8 in.-24
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Pushrods Included: Yes
Valve Covers Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a kit.
