Edelbrock Total Power Package 315 HP Small Block Chevy Top-End Engine Kits 2022

The Edelbrock 2022 Total Power Package for small block Chevy takes the guesswork out of making 315 hp and 381 ft.-lbs. of torque. This Edelbrock top-end engine kit features a 204 intake/214 exhaust duration at .050 inch and includes a hydraulic flat tappet camshaft, an Edelbrock Performer EPS intake, and Edelbrock aluminum cylinder heads with 64cc combustion chamber volume. This Edelbrock kit also includes head bolts and a timing chain to help you complete your Gen. 1 SBC engine build.Brand: Edelbrock
Manufacturer's Part Number: 2022
Part Type: Top End Kits
Product Line: Edelbrock Total Power Package 315 HP Small Block Chevy Top-End Engine Kits
HP Direct Part Number: EDL-2022
UPC: 085347020225
Cylinder Heads Included: Yes
Camshaft Included: Yes
Camshaft Type: Hydraulic Flat Tappet
Duration at 050 inch Lift: 204 int./214 exh.
Advertised Duration: 278 int./288 exh.
Valve Lift with Factory Rocker Arm Ratio: 0.420 int./0.442 exh.
Intake Manifold Included: Yes
Fuel Delivery Style: Carbureted
Carburetor Included: No
Throttle Body Included: No
Fuel Rails Included: No
Fuel Injectors Included: No
Intake Material: Aluminum
Intake Color: Natural
Intake Style: Dual plane
Intake Manifold Name: Edelbrock Performer EPS
Carburetor Flange: Square bore
Timing Chain and Gears Included: Yes
Lifters Included: Yes
Gaskets Included: Yes
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Cylinder Head Color: Natural
Combustion Chamber Volume (cc): 64
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 185cc
Exhaust Runner Volume (cc): 60cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Intake Port Shape: Rectangular
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Spark Plug Style: Straight
Intake Valves Included: Yes
Intake Valve Diameter (in.): 2.020 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Intake Valve Angle: 23
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Valve Stem Seal Material: Viton ®
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Rocker Arm Nuts Included: No
Rocker Arm Nut Thread Size: 3/8 in.-24
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Pushrods Included: Yes
Valve Covers Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Powdered metal
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a kit.

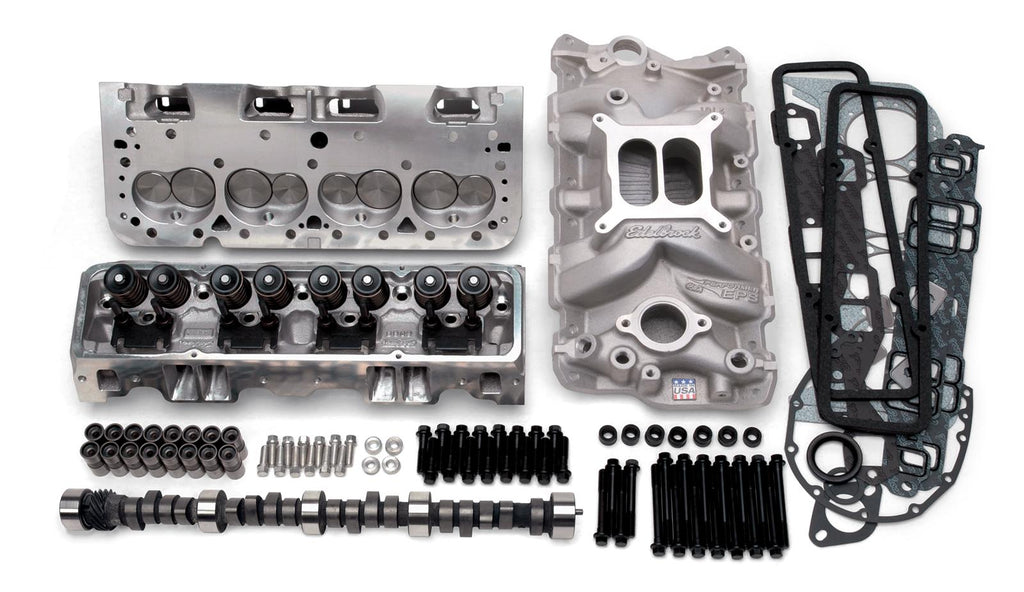

Notes: Includes intake, heads, cam, lifters, timing chain and gears, push rods, gasket and bolt sets.
