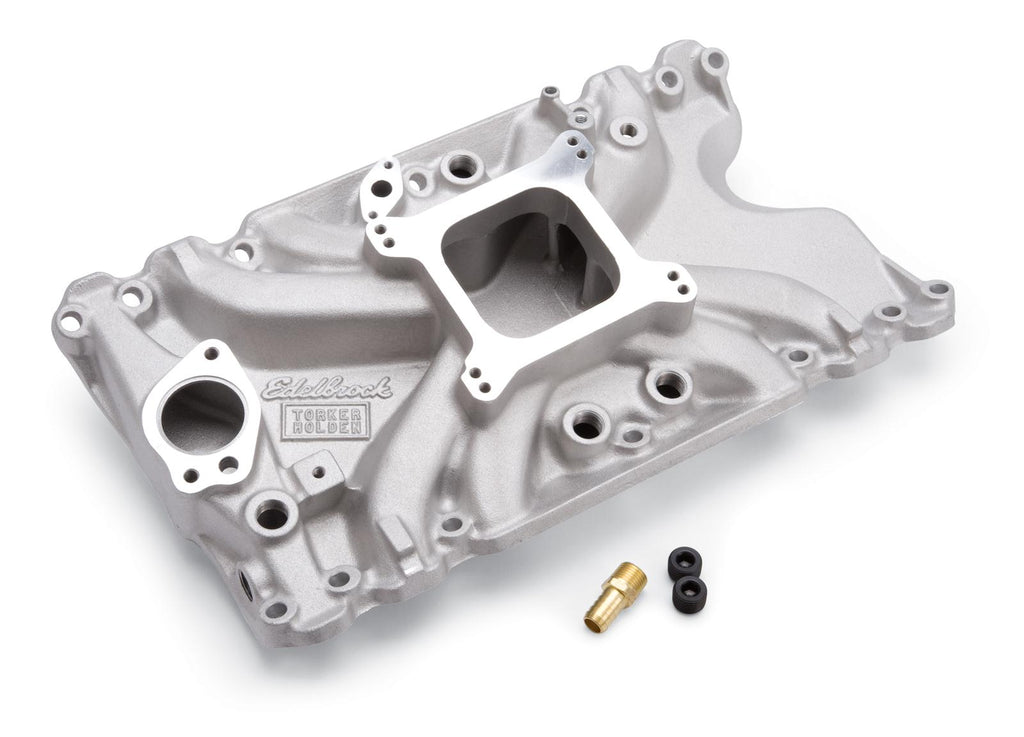

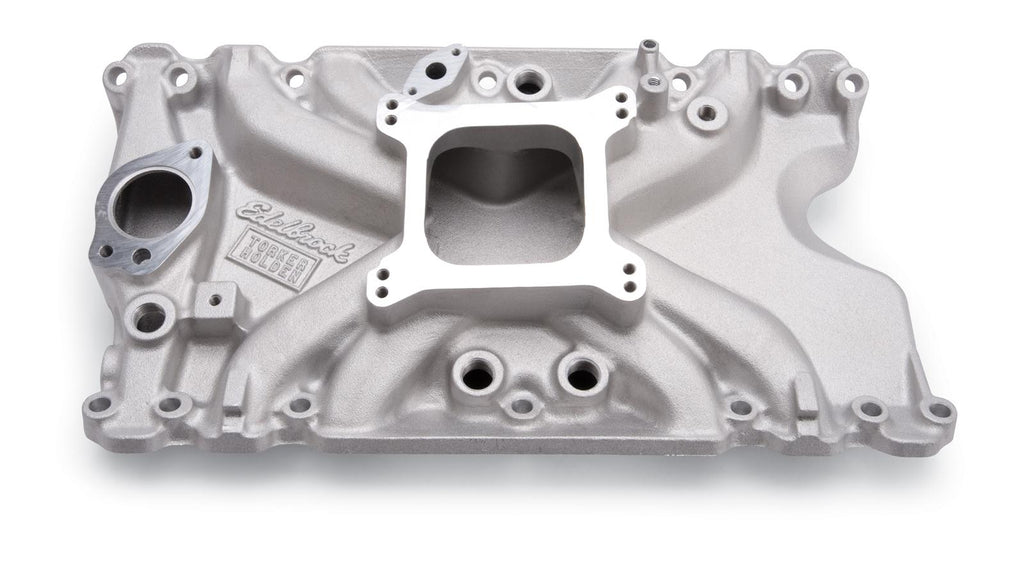

Edelbrock Torker Intake Manifolds 2790

Edelbrock's Torker intake manifolds feature a single-plane, low-rise design for street high-performance engines where low-end torque is not a requirement. What Edelbrock did was increase the plenum volume and alter the short-side radius of the runners, to give the air/fuel charge a straight shot at the intake valves. That straight shot produces a potent power build from 2,500 to 6,500 rpm.Brand: Edelbrock
Manufacturer's Part Number: 2790
Part Type: Intake Manifolds, Carbureted
Product Line: Edelbrock Torker Intake Manifolds
HP Direct Part Number: EDL-2790
UPC: 085347027903
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Single plane
Basic Operating RPM Range: 2,500-6,500
Intake Manifold Height: 3.730 in.
Intake Color: Natural
Intake Material: Aluminum
EGR: Yes
Quantity: Sold individually.
Notes: Fits 253, 304, or 308 c.i.d. Holden V8 engines with Red motor cylinder heads only (with single bolt in center of manifold), will not fit on Blue/Black cylinder head engines. Do not use high performance or competition intake gaskets. Accepts square-bore carbs only.
Special Attention: Manifold height: A-2.95 in., B-4.50 in.; Carb pad height: 3.73 in. Port exit dimensions: 1.03 in. x 1.88 in.
