Description

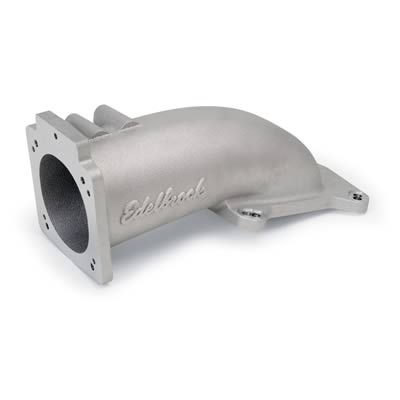

These Edelbrock throttle body intake elbows are designed using the latest technology for unbeatable flow and performance. They adapt GM LS1, LS2, and Ford 5.0L based throttle bodies to EFI intake manifolds with a traditional square bore, 4150 type, mounting flange. Edelbrock throttle body intake elbows are available in standard or box-style configurations to fit a wide variety of engine and hood combinations. Cast from high-quality aluminum, the throttle body elbows feature several bore inlet sizes with your choice of natural or black powdercoated finishes.Brand: Edelbrock
Manufacturer's Part Number: 3847
Part Type: Throttle Body Intake Elbows
Product Line: Edelbrock Throttle Body Intake Elbows
HP Direct Part Number: EDL-3847
UPC: 085347038473
Intake Elbow Type: Elbow
Throttle Body Bore Size: 90mm

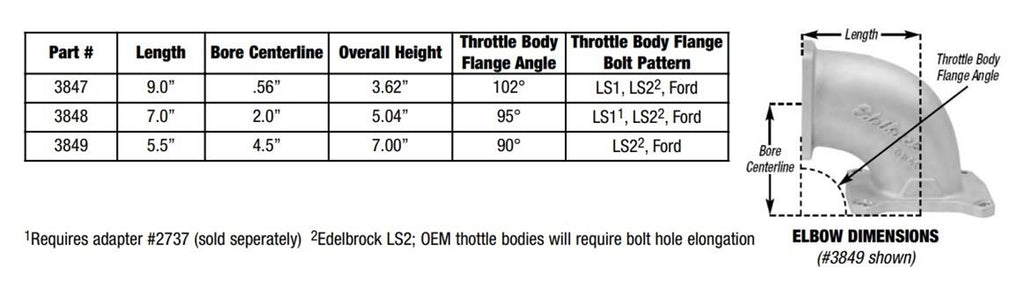

Intake Elbow Height (in.): 3.62
Intake Elbow Material: Aluminum
Intake Elbow Color: Natural
Quantity: Sold individually.
Notes: Throttle bore center measures 9.0 in. forward and 0.560 in. above the intake manifold mounting flange. Designed to fit under the hood of an LS1 Camaro when used with an Edelbrock Victor Jr. LS1 EFI intake manifold (EDL-29085).
Manufacturer's Part Number: 3847
Part Type: Throttle Body Intake Elbows
Product Line: Edelbrock Throttle Body Intake Elbows
HP Direct Part Number: EDL-3847
UPC: 085347038473
Intake Elbow Type: Elbow
Throttle Body Bore Size: 90mm
Intake Elbow Height (in.): 3.62
Intake Elbow Material: Aluminum
Intake Elbow Color: Natural
Quantity: Sold individually.
Notes: Throttle bore center measures 9.0 in. forward and 0.560 in. above the intake manifold mounting flange. Designed to fit under the hood of an LS1 Camaro when used with an Edelbrock Victor Jr. LS1 EFI intake manifold (EDL-29085).
