Edelbrock Sure Seat Valve Spring Kits 5794

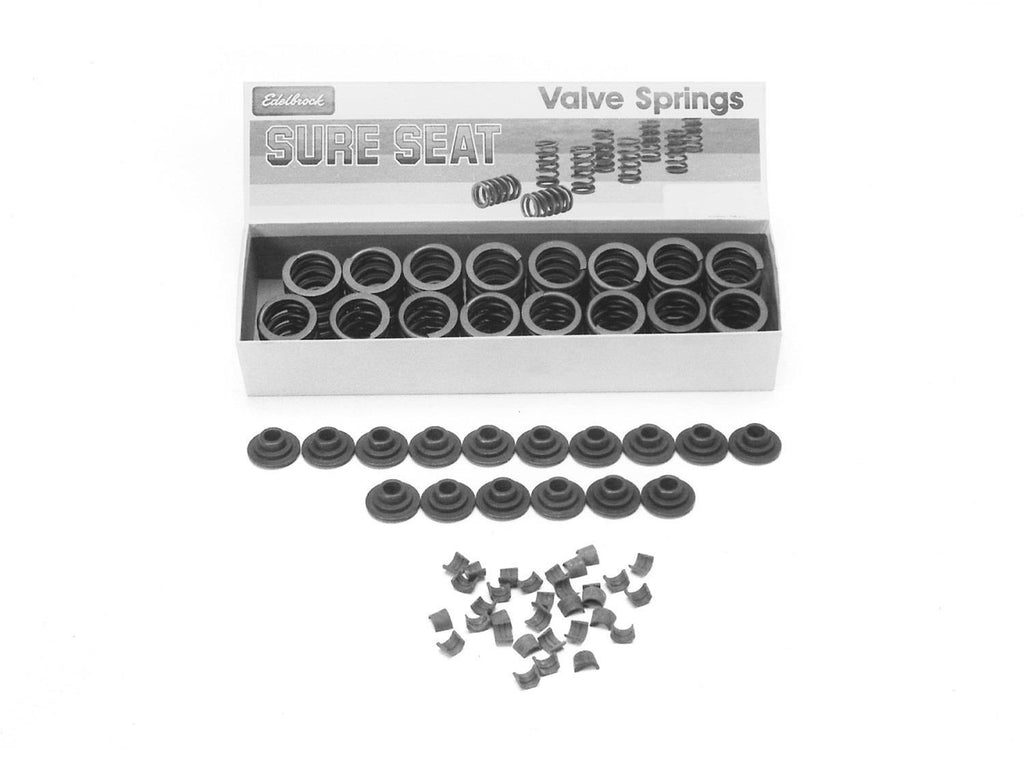

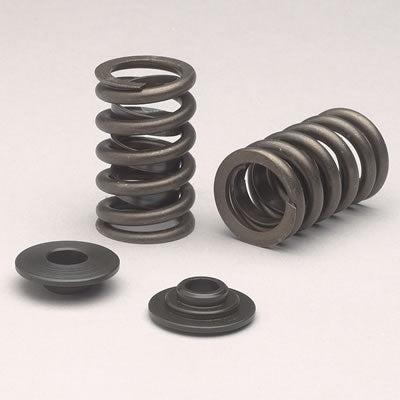

Edelbrock Sure Seat valve spring kits are designed for small block Chevy OE cast iron heads. Made of the highest quality spring wire and precision wound to close tolerances, these springs are ideal when installing Edelbrock Performer-Plus camshafts. The valve springs are machined for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Kits contain non-rotator valve springs, retainers, and matching 7 degree valve stem locks. They're available in single or dual options, in a variety of diameters and heights.Brand: Edelbrock
Manufacturer's Part Number: 5794
Part Type: Valve Springs
Product Line: Edelbrock Sure Seat Valve Spring Kits
HP Direct Part Number: EDL-5794
UPC: 085347057948
Valve Spring Style: Standard
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Outside Diameter of Outer Spring (in.): 1.265 in.
Coil Bind Height (in.): 1.160 in.
Damper Spring Included: Yes
Inside Diameter of Outer Spring (in.): 0.880 in.
Locks Included: Yes
Lock Material: Steel
Lock Groove Quantity: 1-groove
Lock Style: 7 degree
Valve Stem Seals Included: No
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.344 in.
Valve Stem Diameter (mm): 8.74mm
Remanufactured: No
Quantity: Sold as a kit.
