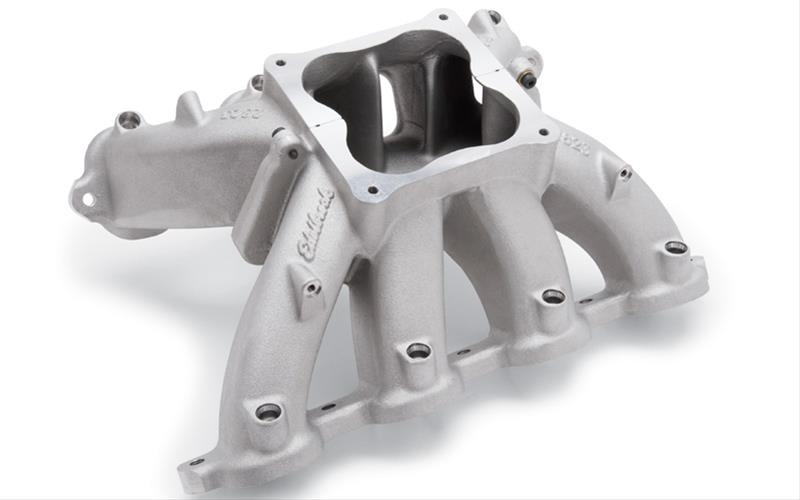

Edelbrock Super Victor Intake Manifolds 28235

Edelbrock Super Victor intake manifolds are arguably the most popular and flexible manifolds in racing today. You'll find these single-plane manifolds on oval tracks, in drag racing, and on NASCAR engines--anywhere that maximum horsepower and torque are needed. The extended, constant cross-sectional area of the runners produces more torque across the midrange--from 3,500 up to 8,500 rpm in most instances. So, they deliver great throttle response off of the corners in oval track racing and improved 60 ft. times in drag racing. Their direct "line-of-sight" flow path provides maximum flow and there's plenty of material for port matching. They're also ideal for alcohol use.Brand: Edelbrock
Manufacturer's Part Number: 28235
Part Type: Intake Manifolds, Fuel Injected
Product Line: Edelbrock Super Victor Intake Manifolds
HP Direct Part Number: EDL-28235
UPC: 085347282357
Cylinder Head Configuration: Edelbrock Pro-Port LS-R
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 4,000-8,500
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No
EGR: No
Aftermarket Fuel Rail Required: Yes
Throttle Body Included: No
Supplemental Bosses Cast-In: Yes
Supplemental Bosses Machined: Yes
Supplemental Boss Quantity: Eight
Runners Included: Yes
Runners Removable: No
Plenum Material: Aluminum
Plenum Finish: Natural
Remanufactured: No
Quantity: Sold individually.
Notes: These two-piece manifolds are intended for LSR high performance race applications operating in the 8,000 rpm range utilizing Edelbrock Pro-Port LS-R cylinder heads. Use Edelbrock #3510 fuel rails.
