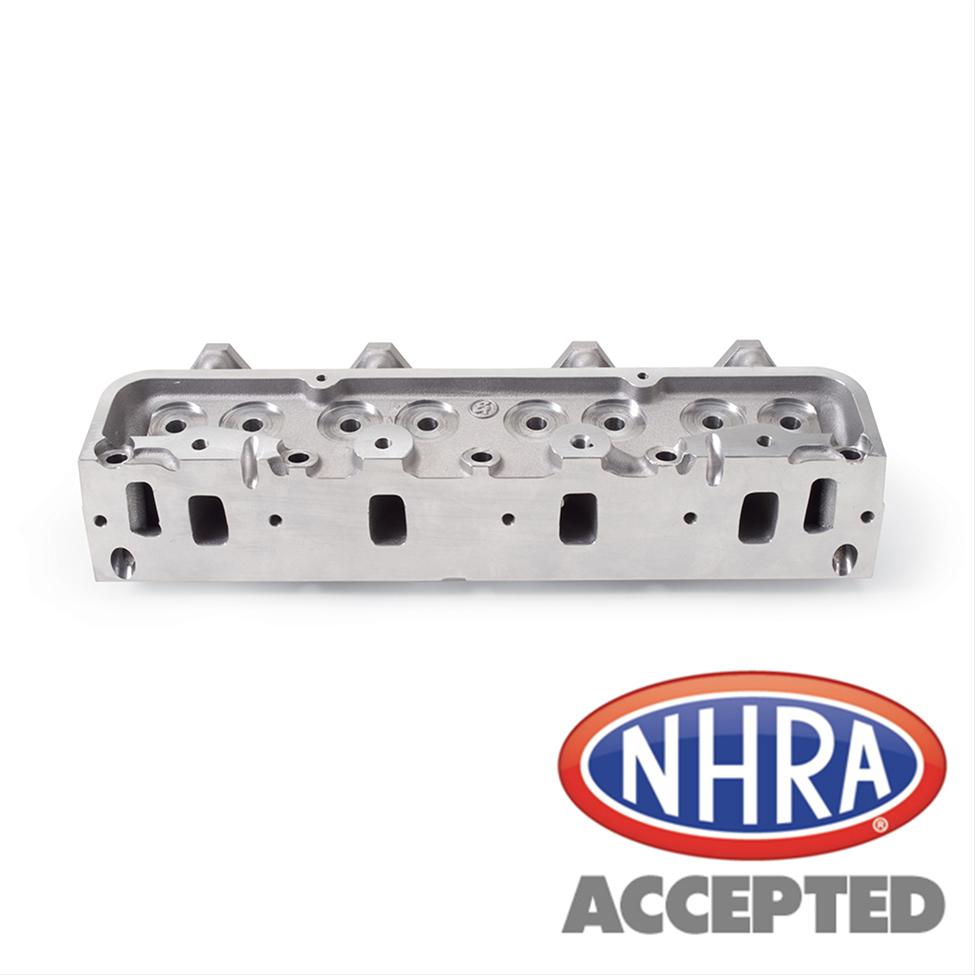

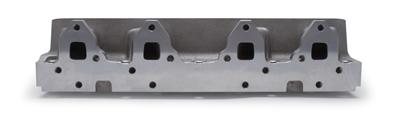

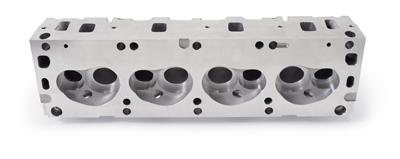

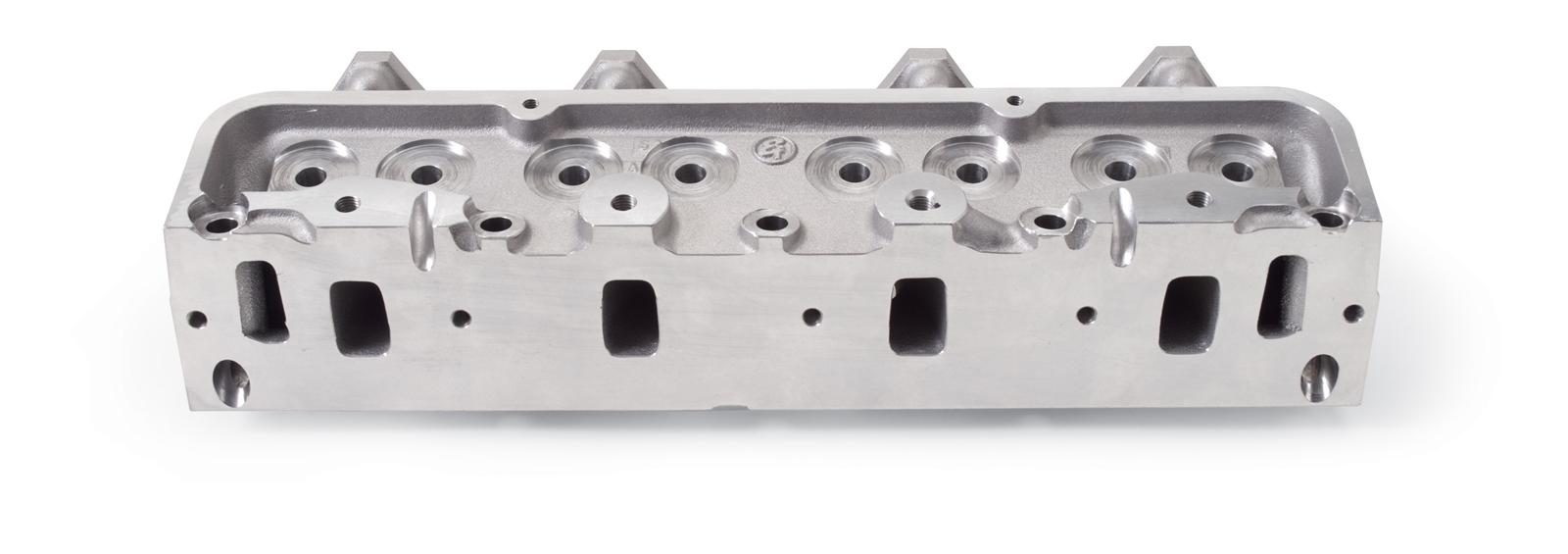

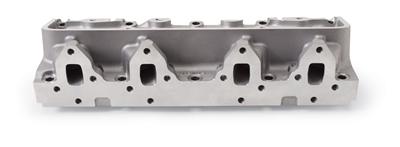

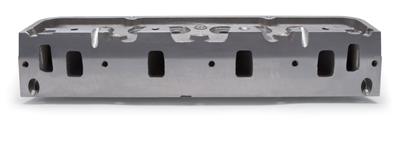

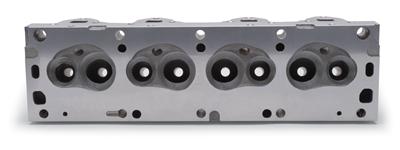

Edelbrock Pro-Port Raw Ford FE Cylinder Heads 61857

Edelbrock Pro-Port Raw Ford FE cylinder heads are the ultimate choice for extreme race applications. Their design is an un-ported small port and chamber version of the popular Performer RPM FE cylinder heads. They are cast with added material and smaller runners and chambers to allow for a wide variety of CNC porting to be performed. Valve seats and guides are included, but not installed. Professional prep will be required for these heads prior to installation.Brand: Edelbrock
Manufacturer's Part Number: 61857
Part Type: Cylinder Heads
Product Line: Edelbrock Pro-Port Raw Ford FE Cylinder Heads
HP Direct Part Number: EDL-61857
UPC: 085347618576
Combustion Chamber Volume (cc): 45
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Valves Included: No
Exhaust Valves Included: No
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 13.00
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: NHRA Super Stock legal. Cast with added material in the runners and chambers to allow for a wide variety of CNC porting to be performed. Valve seats and guides are included but not installed. Professional preparation will be required for these heads prior to installation.
