Edelbrock Pro-Flo 4 Plus Self-Learning Engine Management Systems 36130

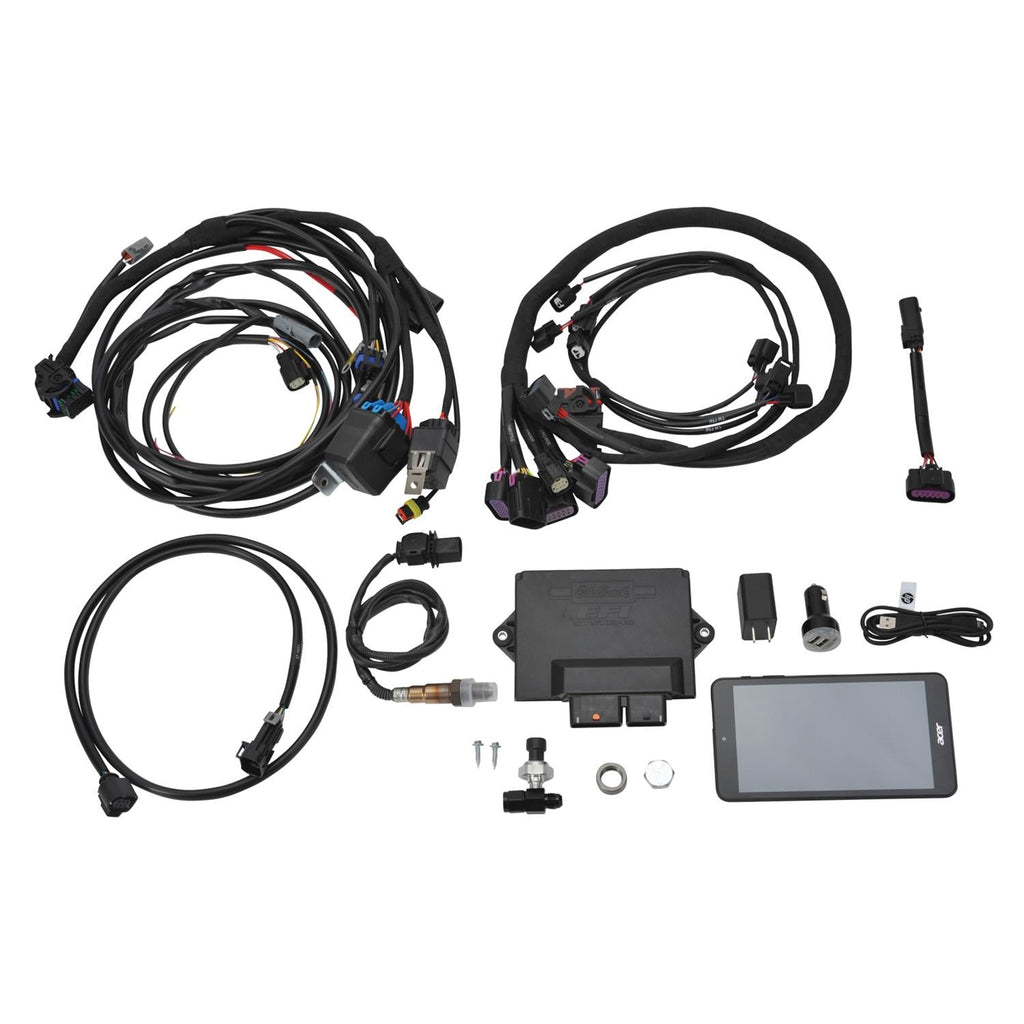

Edelbrock Pro-Flo 4 Plus systems simplify EFI for the "Big Three"! These ingenious engine management systems support late model Ford Coyote, Chevrolet LS, and Mopar Gen III Hemi engines, along with all their performance benefits in hot rod transplant applications. Each package consists of an ECU, wiring harness, and a 7 in. wireless touch screen tablet for programming, calibration adjustments, and monitoring performance. All systems are plug-and-play and are supported by a standalone Edelbrock Android app "E Tuner 4 Plus" specific for Pro-Flo 4 Plus applications. There is no laptop tuning required, base calibrations are provided, the systems are self-learning, and you can expect great out-of-the box performance.

Edelbrock Pro-Flo 4 Plus systems feature:

* Full VCT control of Coyote and Gen III Hemi engines with no add-on modules
* Controls up to two drive-by-wire throttle bodies (LS applications)
* Dual on-board wideband oxygen sensors with left and right bank closed loop AFR control using Bosch LSU4.9 sensors
* Knock control using OEM sensors to provide knock feedback (harness sold separately)
* High impedance injector drivers

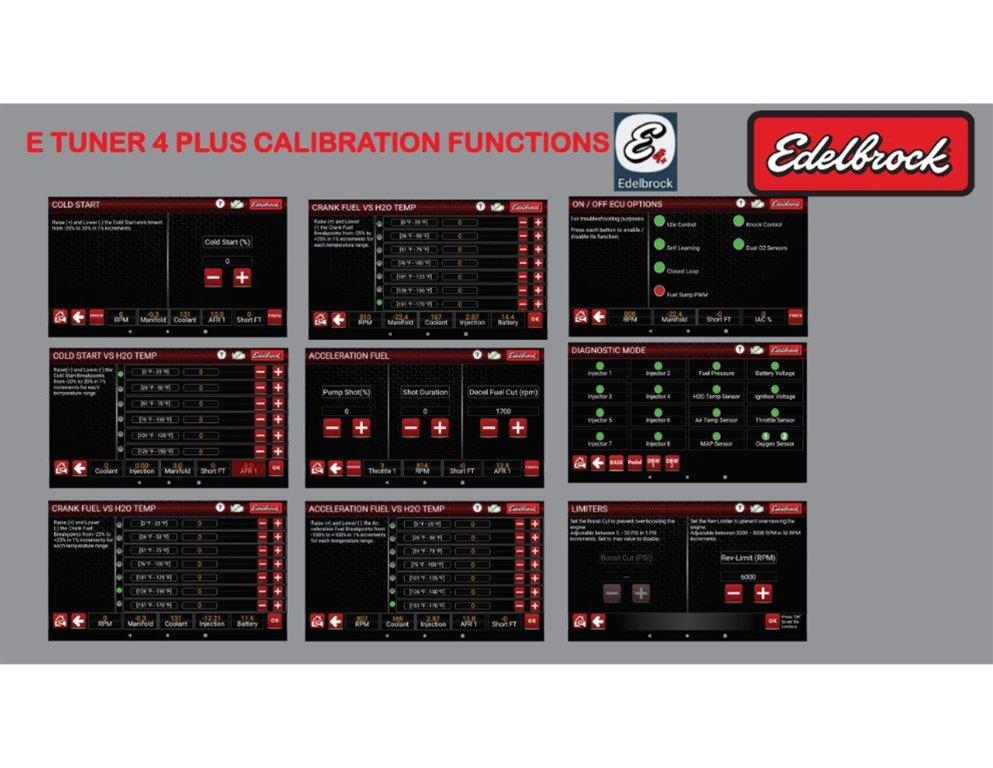

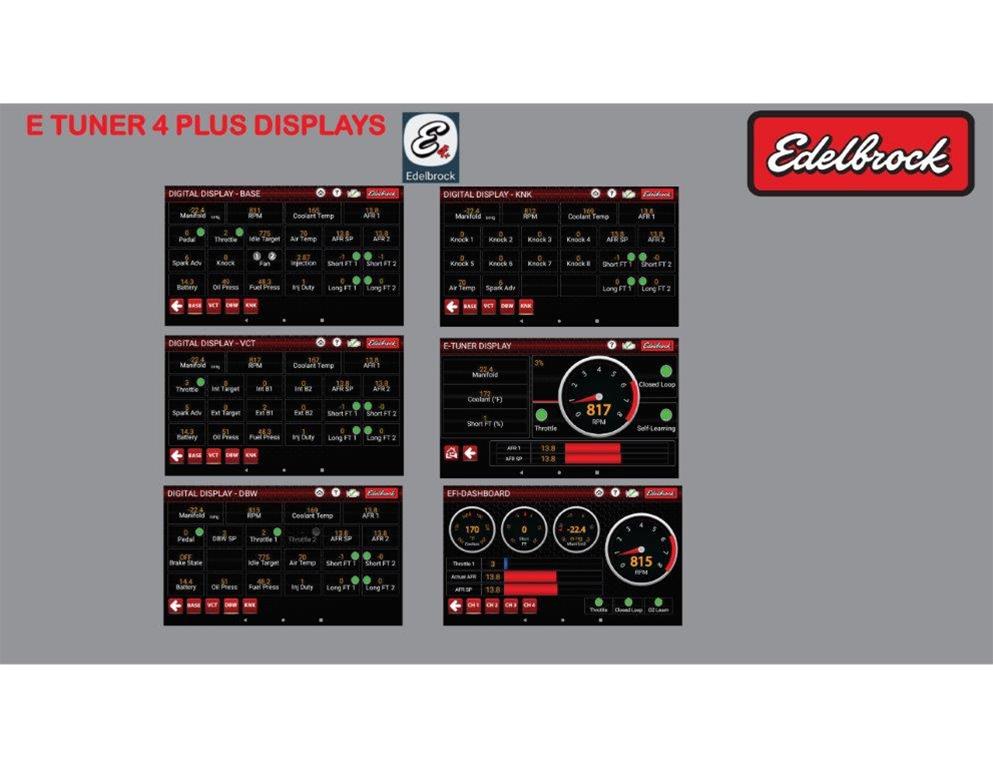

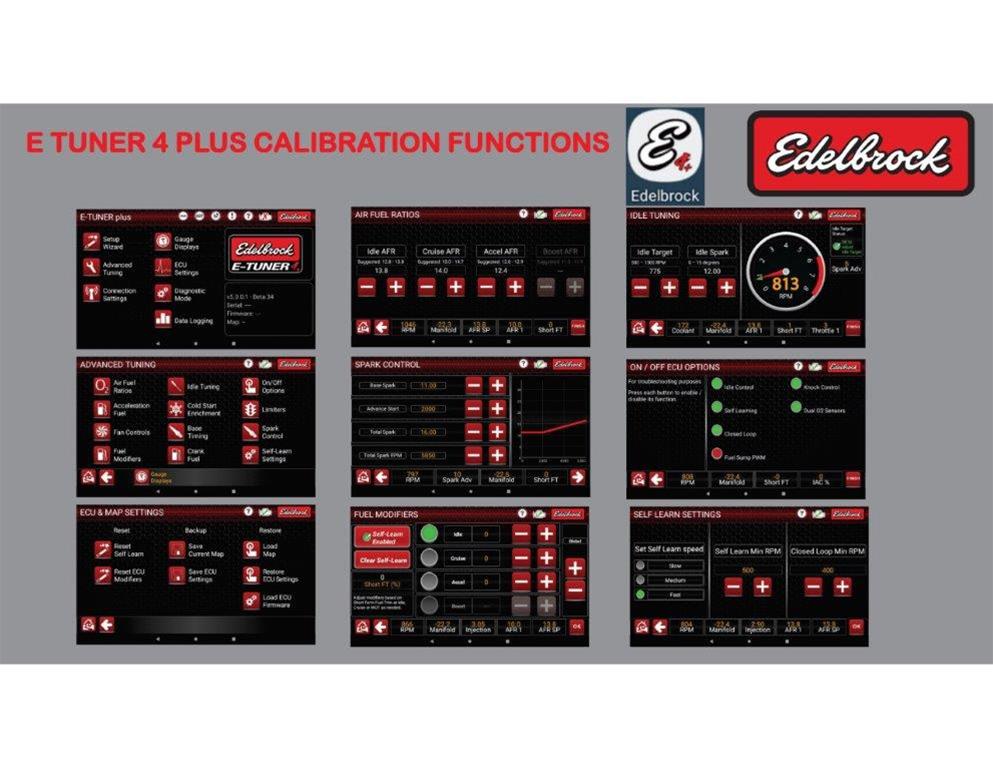

* E-Tuner PLUS simplified tuning interface. Tune wirelessly with Bluetooth using an Android device
* Refined base calibrations with little or no tuning required. No costly dyno sessions required, just load a calibration and go!
* Cosmetically appealing, fully terminated, modular wiring harness makes installation easy

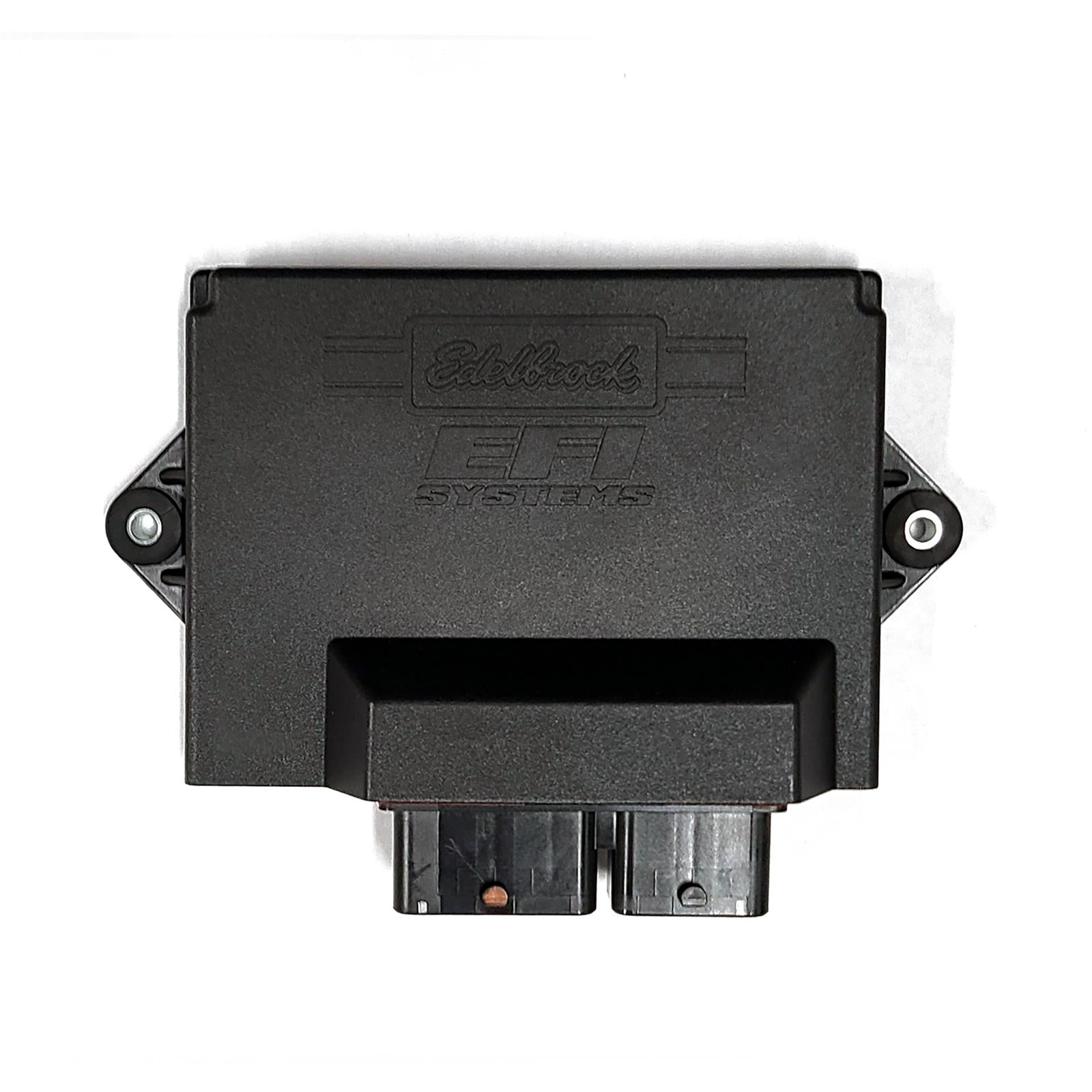

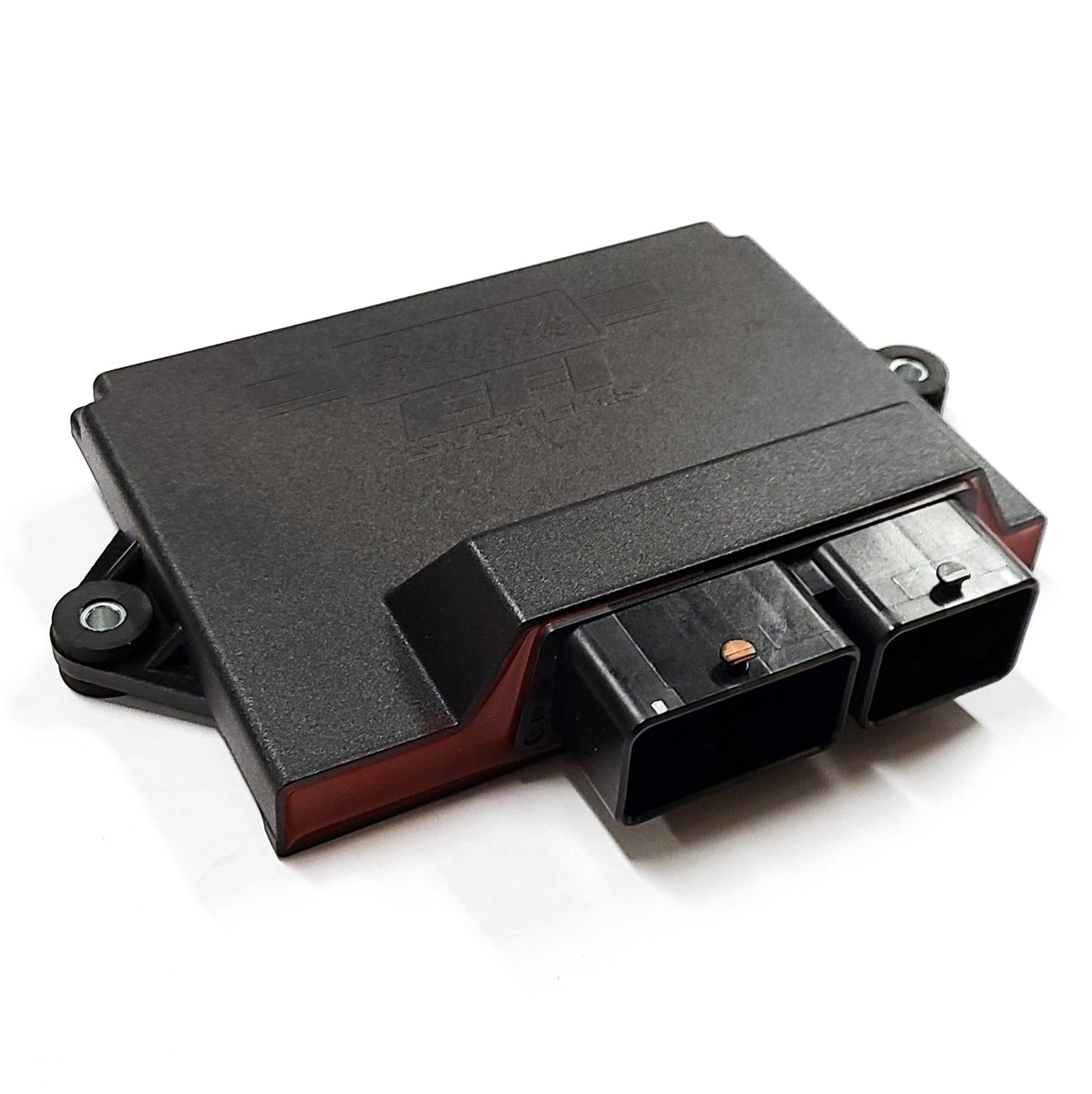

* Fully potted and weatherproof compact ECU design
Brand: Edelbrock
Manufacturer's Part Number: 36130
Part Type: Engine Management Systems
Product Line: Edelbrock Pro-Flo 4 Plus Self-Learning Engine Management Systems
HP Direct Part Number: EDL-36130
UPC: 85347361304
Transmission Controller Included: No
Boost Control: Yes
Traction Control: No
High Impedence Injectors: Up to 8
Coils: Up to 8
Wideband Controller: Yes
Wideband Channels: 1
CANBUS Enabled: No
Knock Control: No
Drive-By-Wire Capable: Yes
Drive-By-Wire Channels: 2
VVT Control: No
Nitrous Control: No
Launch Control: No
Engine Protection: No
Flex Fuel Compatible: No
Multi-fuel Capable: No
Data Logger: No
Oxygen Sensor Included: Yes
Display Included: Yes
Handheld Controller Included: No
Remanufactured: No
Quantity: Sold as a kit.

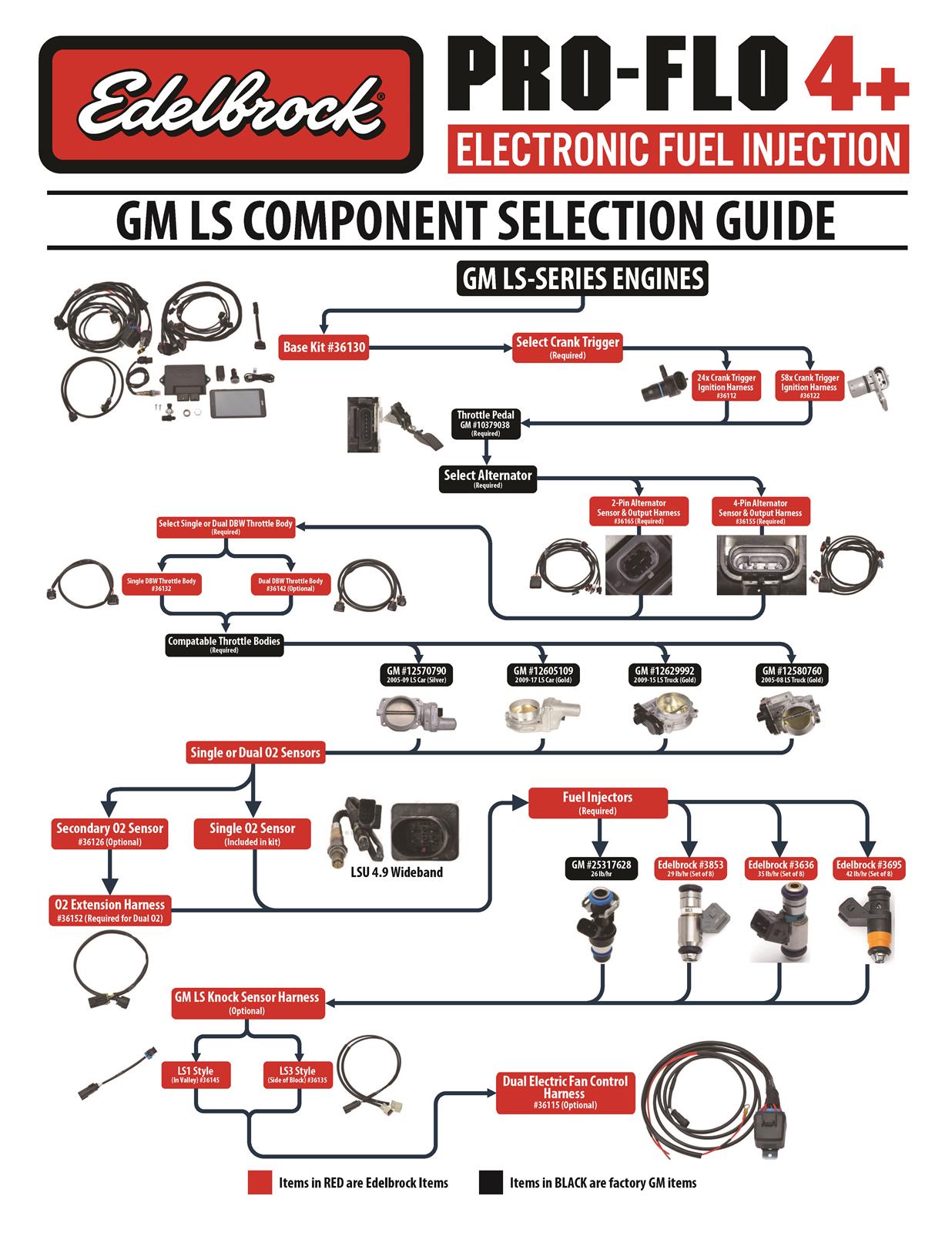

Notes: Supports OE Gold and Silver blade 4-bolt drive-by-wire throttle bodies and dual drive-by-wire throttle bodies with additional harness. Supports 2 and 4-wire alternator configurations with additional harness. Requires purchase of 24X or 58X cam/crank wire harness. Also supports knock control with additional harness.
Special Attention: To use with an automatic transmission a transmission controller will need to be purchased also.
