Description

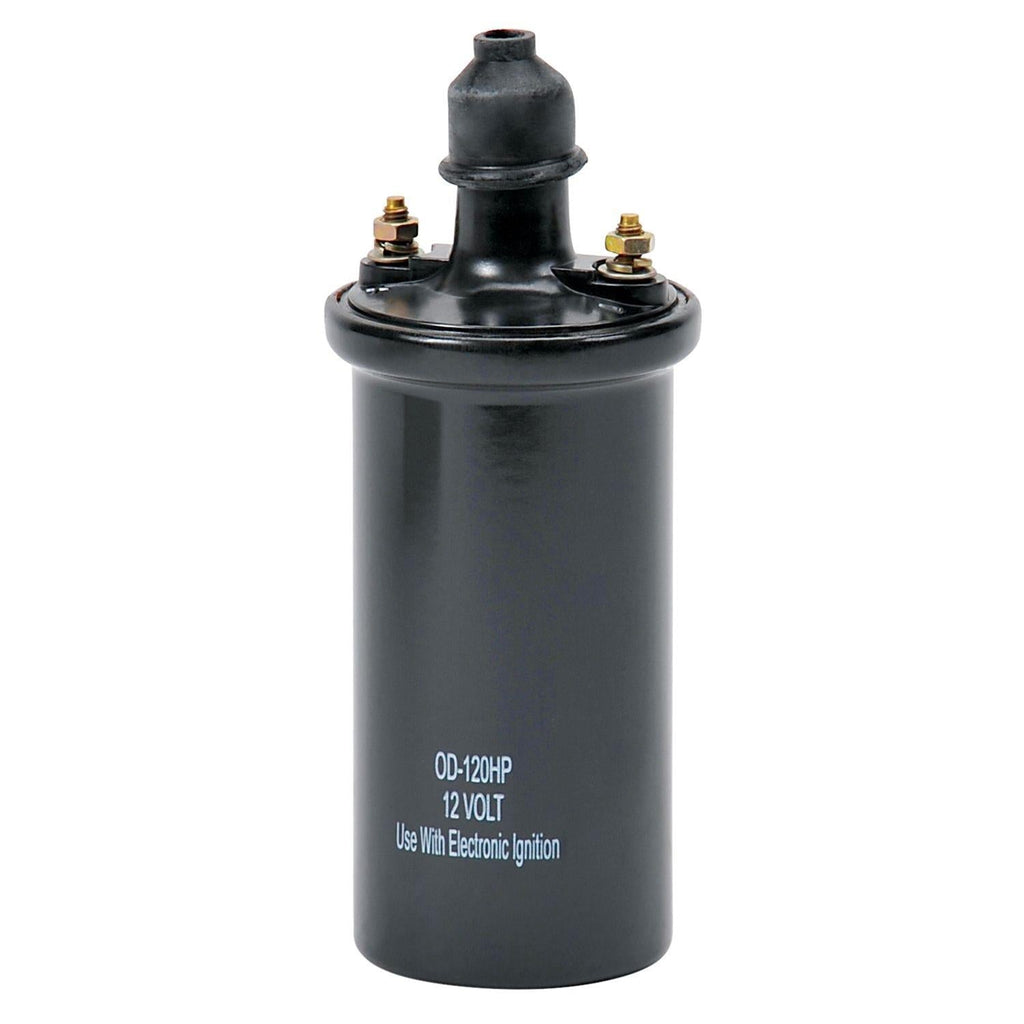

Edelbrock Pro-Flo 4 ignition coils are designed for use with electronic ignitions and produce an impressive 45,000 volts of power. Edelbrock kept the standard cylinder shaped housing and even gave it a satin black finish, so it will look right at home under the hood of your hot rod. These coils are an ideal complement to Edelbrock Pro-Flo 4 EFI systems.
Brand: Edelbrock
Manufacturer's Part Number: 22746
Part Type: Ignition Coils
Product Line: Edelbrock Pro-Flo 4 Ignition Coils
HP Direct Part Number: EDL-22746
UPC: 085347227464
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.70K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: For use with the Edelbrock Pro-Flo 4 EFI systems an others requiring .700 ohms of resistance.
Brand: Edelbrock
Manufacturer's Part Number: 22746
Part Type: Ignition Coils
Product Line: Edelbrock Pro-Flo 4 Ignition Coils
HP Direct Part Number: EDL-22746
UPC: 085347227464
Coil Style: Remote mount
Primary Resistance: 0.700 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Black
Maximum Voltage: 45,000 V
Turns Ratio: 100:1
Secondary Resistance: 4.70K ohms
Inductance: 8.00 mH
Peak Current: 140 mA
Spark Duration: 350 uS
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: For use with the Edelbrock Pro-Flo 4 EFI systems an others requiring .700 ohms of resistance.
