Description

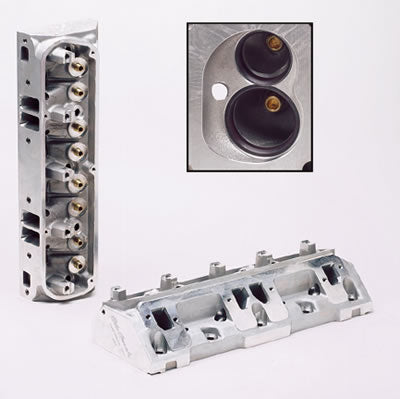

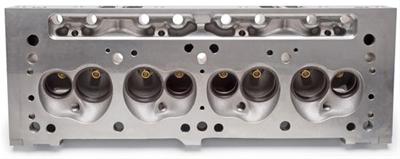

Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.Brand: Edelbrock
Manufacturer's Part Number: 60769
Part Type: Cylinder Heads
Product Line: Edelbrock Performer RPM Cylinder Heads
HP Direct Part Number: EDL-60769
UPC: 085347607693
Combustion Chamber Volume (cc): 63
Intake Runner Volume (cc): 171cc
Exhaust Runner Volume (cc): 77cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 18
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: The special valvetrain in the 1970 340 T/A is not compatible with these heads. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. If installing on a 318, valve-to-bore clearance should also be checked and the top of the bore notched for clearance if necessary.
Manufacturer's Part Number: 60769
Part Type: Cylinder Heads
Product Line: Edelbrock Performer RPM Cylinder Heads
HP Direct Part Number: EDL-60769
UPC: 085347607693
Combustion Chamber Volume (cc): 63
Intake Runner Volume (cc): 171cc
Exhaust Runner Volume (cc): 77cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 18
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: The special valvetrain in the 1970 340 T/A is not compatible with these heads. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. If installing on a 318, valve-to-bore clearance should also be checked and the top of the bore notched for clearance if necessary.
