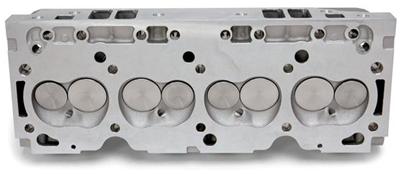

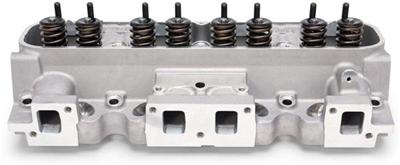

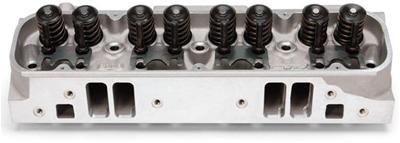

Edelbrock Performer RPM Cylinder Heads 60049

Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Countless options are available; order the model recommended for your vehicle and engine application.Brand: Edelbrock
Manufacturer's Part Number: 60049
Part Type: Cylinder Heads
Product Line: Edelbrock Performer RPM Cylinder Heads
HP Direct Part Number: EDL-60049
UPC: 085347600496
Combustion Chamber Volume (cc): 68
Intake Runner Volume (cc): 215cc
Exhaust Runner Volume (cc): 130cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic flat tappet
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.125 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Shape: Rectangular
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.750 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Outside Diameter of Outer Spring (in.): 1.550 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Single
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: High-quality stainless steel valves, Intake and exhaust runners are hand blended in the bowl area and the intake entries and exhaust exits are cnc profiled for increased air-flow. These heads include adjustable rocker stud and guide plate set-up for use with small-block Chevy 1.6:1 style adjustable rockers.
