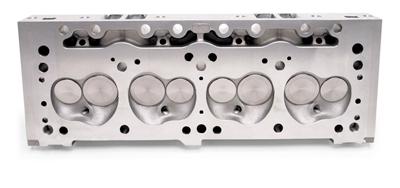

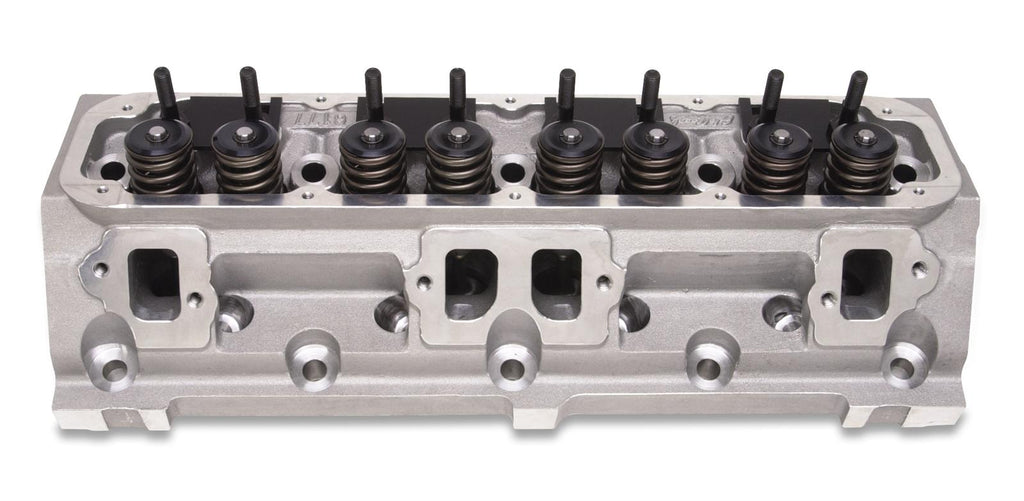

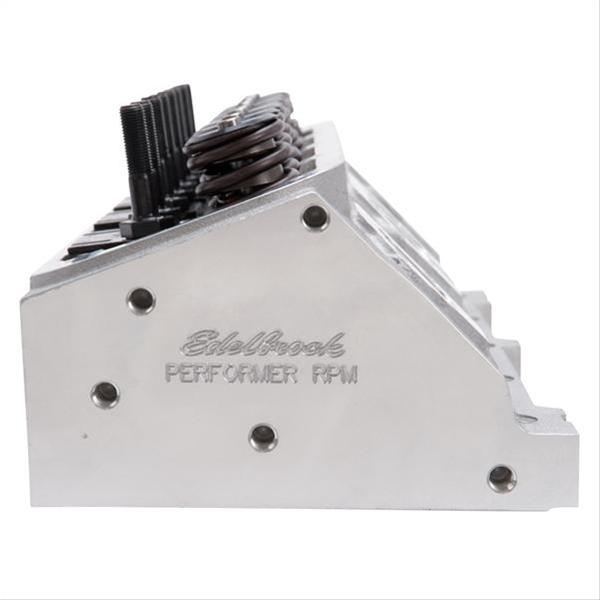

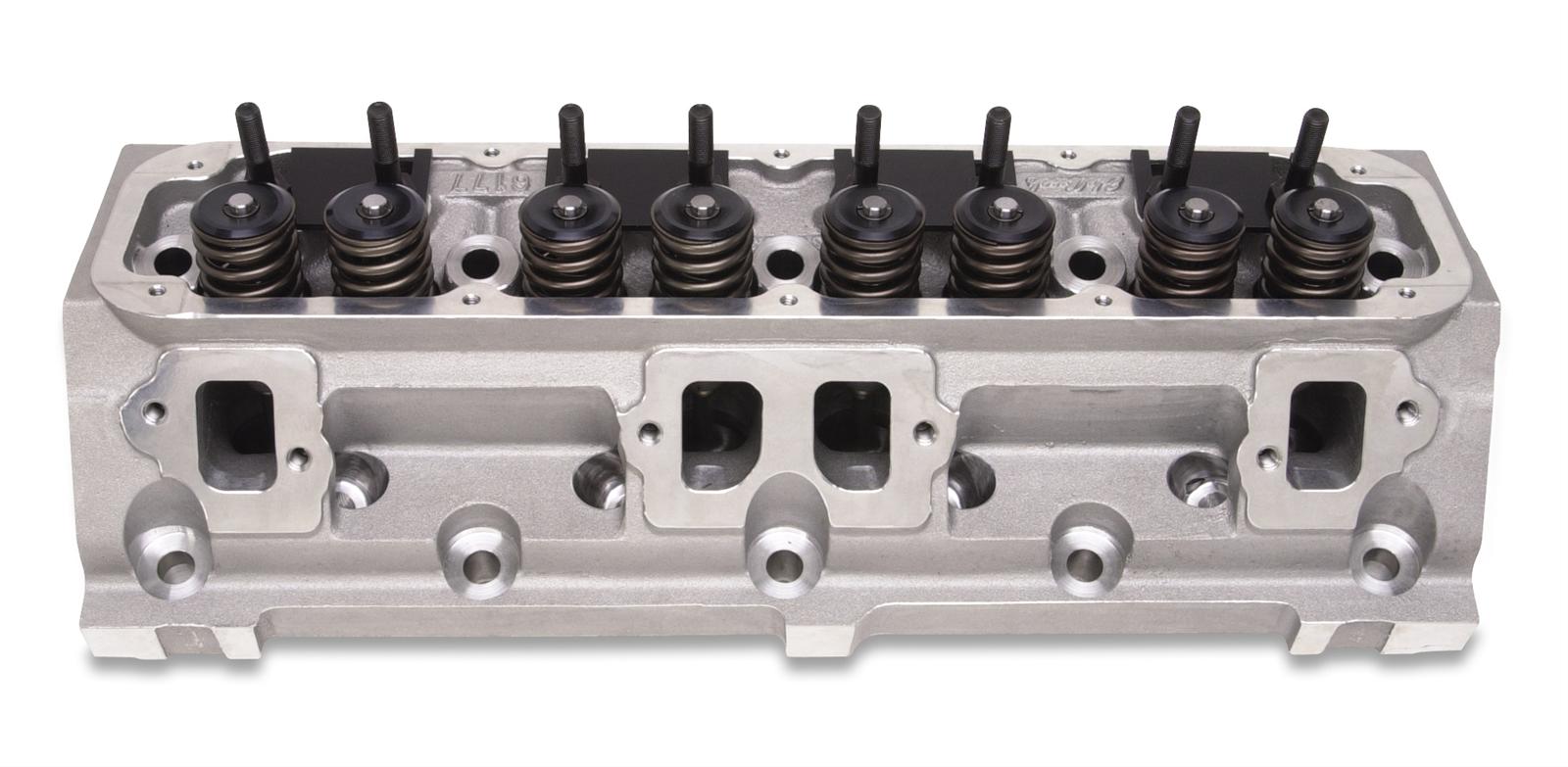

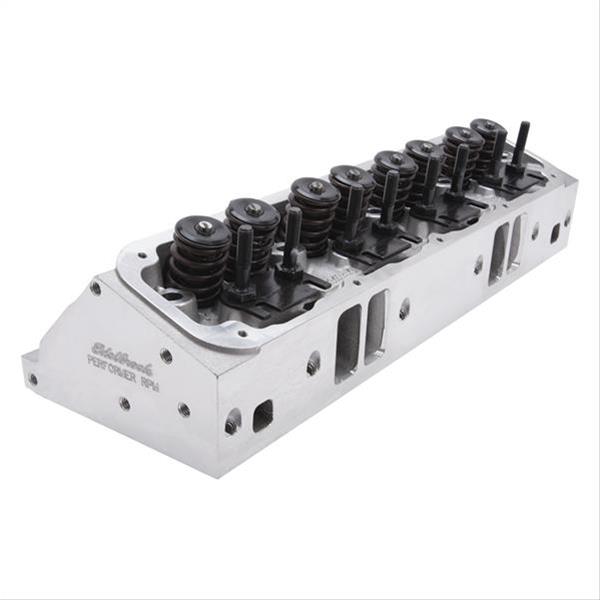

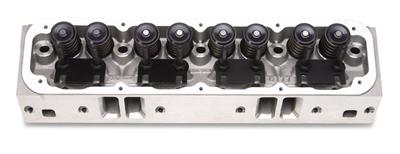

Edelbrock Performer RPM Chrysler Magnum Cylinder Heads 61775

These Performer RPM Chrysler Magnum heads give substantial performance improvements for street/strip and off-road performance use. They offer an easy bolt-on engine upgrade with substantial out-of-the-box performance gains. Stock Magnum intake and exhaust flange and port locations make these heads an ideal choice for use with stock equipment as well as the new RPM Air-Gap manifold. These heads feature a slight increase in compression over the factory heads, offer more flow than stock, and accept adjustable aftermarket rocker arms. These heads are available in bare or assembled versions; hardened pushrods are required.Brand: Edelbrock
Manufacturer's Part Number: 61775
Part Type: Cylinder Heads
Product Line: Edelbrock Performer RPM Chrysler Magnum Cylinder Heads
HP Direct Part Number: EDL-61775
UPC: 085347617753
Combustion Chamber Volume (cc): 58
Intake Runner Volume (cc): 176cc
Exhaust Runner Volume (cc): 75cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.020 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.600 in.
Outside Diameter of Outer Spring (in.): 1.460 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8 in.-24
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 18
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: With springs for hydraulic roller cams, Requires hardened pushrods, EDL-9638. Match with Edelbrock head gasket sets. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). Exhaust flanges in stock location to allow use of stock exhaust if desired. Accepts widely available small-block Chevy adjustable rockers 1.6 ratio and classic valve covers EDL-4177 and EDL-41773
