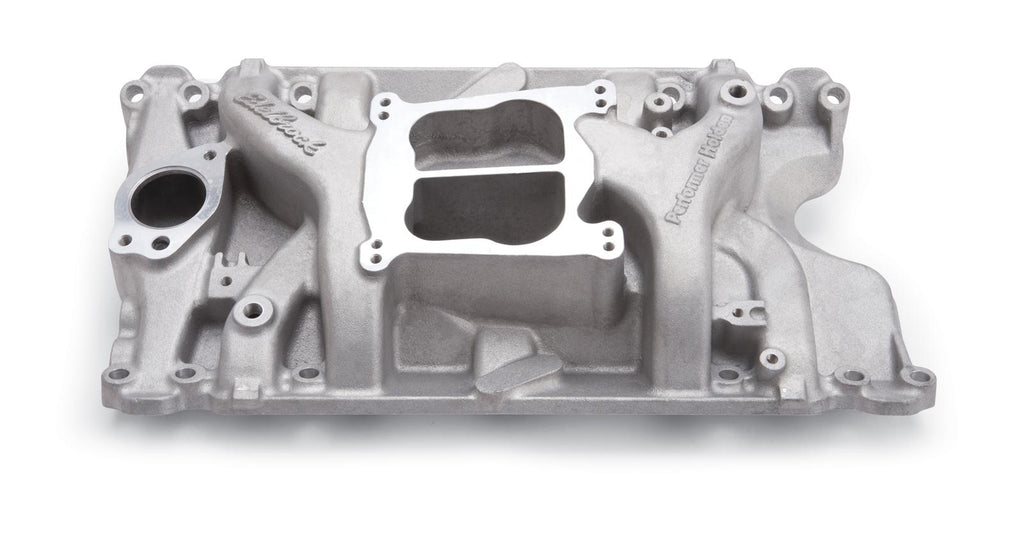

Edelbrock Performer Intake Manifolds 2194

Edelbrock Performer intake manifolds are low-rise, dual-plane designs with patented runner tuning and a 180 degree firing order that you won't find with the competition. This combination boosts torque over a wide rpm range, from idle to 5,500 rpm. These manifolds also deliver improved throttle response over stock intakes and are available in both EGR and non-EGR style.Brand: Edelbrock
Manufacturer's Part Number: 2194
Part Type: Intake Manifolds, Carbureted
Product Line: Edelbrock Performer Intake Manifolds
HP Direct Part Number: EDL-2194
UPC: 085347021949
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: Idle-5,500
Intake Manifold Height: 3.960 in.
Intake Color: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.

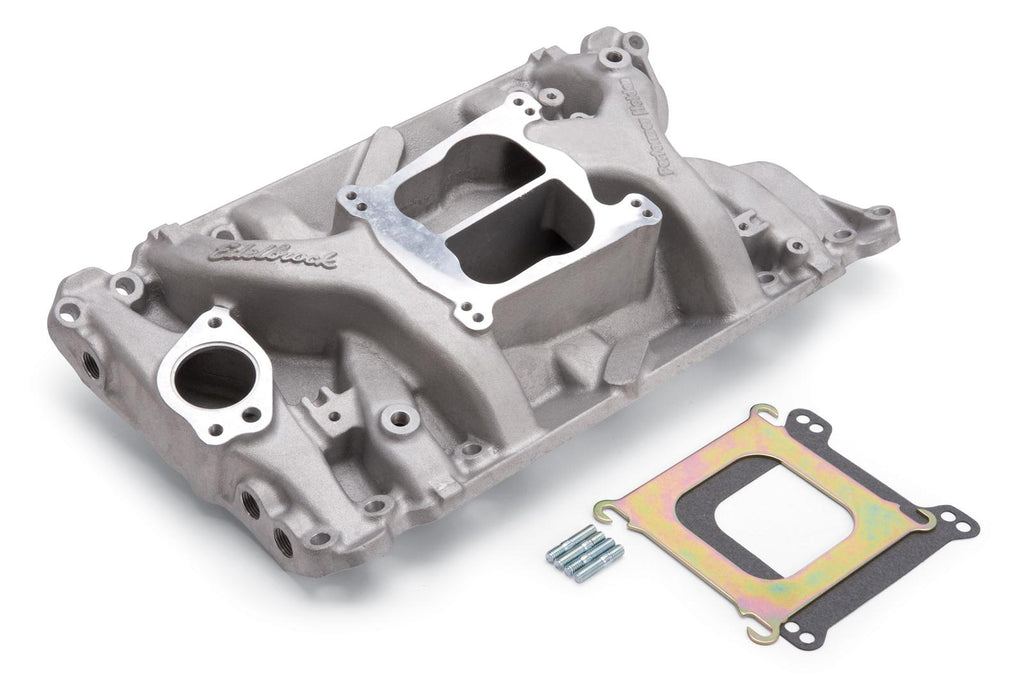

Notes: Includes Edelbrock square-bore carb adapter plate. Fits 253, 304, or 308 c.i.d. Holden V8 engines with carbureted style heads. Do not use high performance or competition intake gaskets. Pilot holes on the exhaust crossover may need drilled out depending on application. Accepts both square-bore and spread-bore carbs
Special Attention: Manifold height: A-3.25 in., B-4.67 in.; Carb pad height: 3.96 in. Port exit dimensions: 1.07 in. x 1.83 in.
