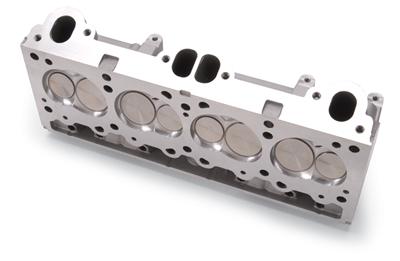

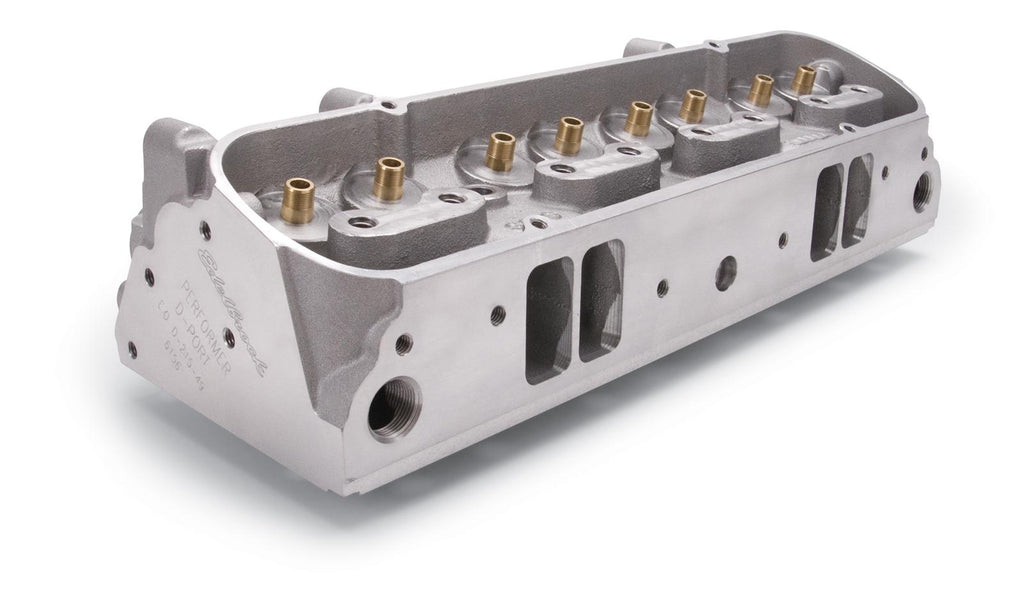

Edelbrock Performer Cylinder Heads 61569

All Edelbrock aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. They offer improved power throughout the rpm range for greater throttle response and top-end horsepower. The intake and exhaust runners are CNC-machine profiled for superior flow and performance.Brand: Edelbrock
Manufacturer's Part Number: 61569
Part Type: Cylinder Heads
Product Line: Edelbrock Performer Cylinder Heads
HP Direct Part Number: EDL-61569
UPC: 085347615698
Combustion Chamber Volume (cc): 87
Intake Runner Volume (cc): 204cc
Exhaust Runner Volume (cc): 145cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.110 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: D-port
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.660 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 14
Exhaust Valve Angle: 14
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: No
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for 4.060 in and larger bore diameters. Requires Edelbrock head bolt kit EDL-8561 for installation. 350 c.i.d. engines may require notching the block for valve clearance. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.
CARB EO Number(s): D-215-94
Emissions: California EO Approved
