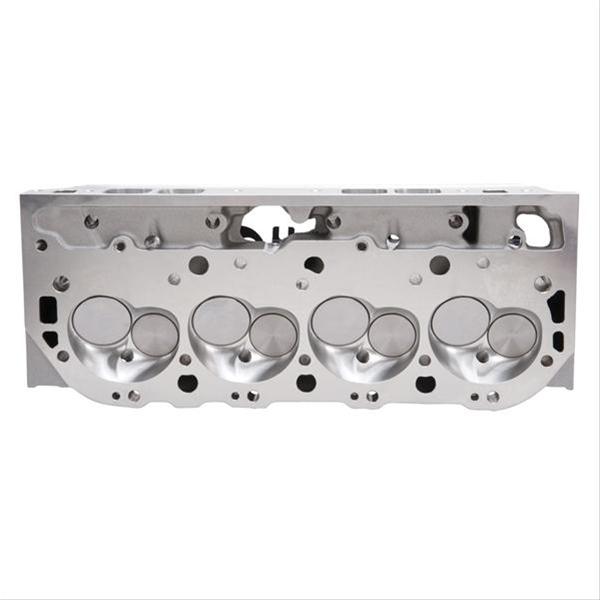

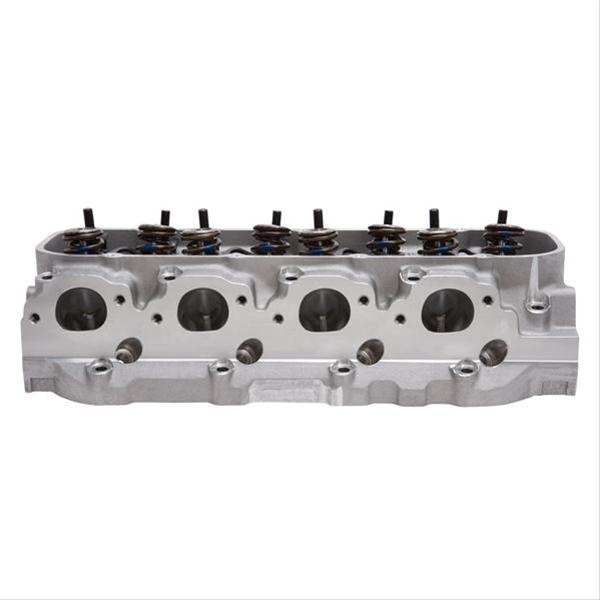

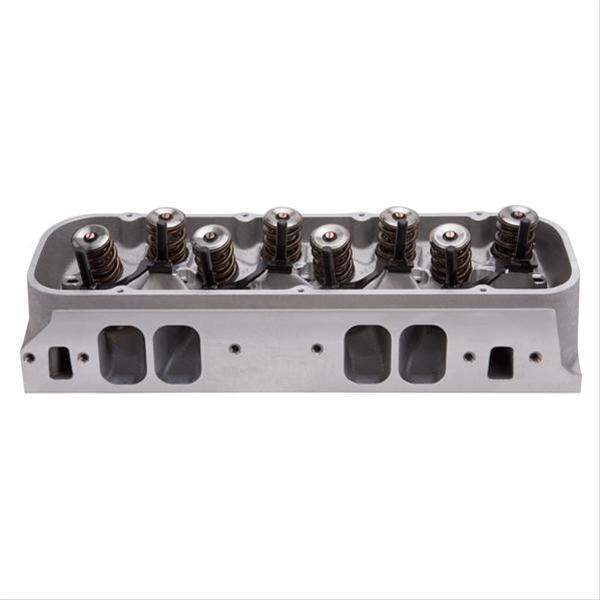

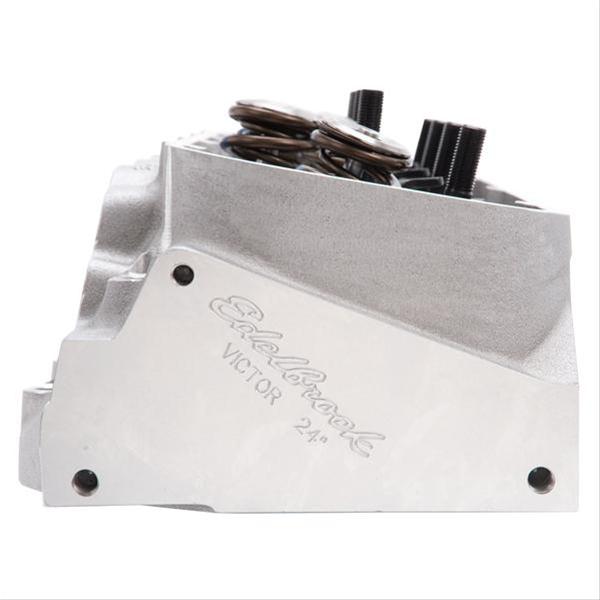

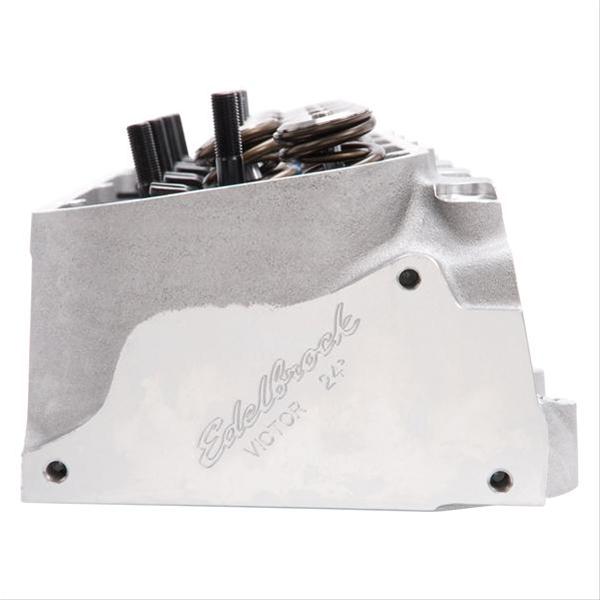

Edelbrock Musi/Victor 24 Degree CNC-Machined Cylinder Heads 61409

Developed and designed in conjunction with 8-time Pro Street World Champion Pat Musi, these Edelbrock Musi/Victor 24 degree CNC-machined cylinder heads are sure to perform at the highest level. They are manufactured from high-quality aluminum and feature CNC-machined combustion chambers, intake runners, and exhaust port runners. They are available in a bare casting or an assembled version. The assembled version includes stainless steel 2.30 in. intake and 1.90 in. exhaust valves, Manley valve springs for a solid roller camshaft, 10 degree titanium retainers and locks, guideplates for 3/8 in. diameter pushrods, and 7/16 in. rocker arm studs. Get maximum horsepower right out of the box with these Edelbrock cylinder heads.Brand: Edelbrock
Manufacturer's Part Number: 61409
Part Type: Cylinder Heads
Product Line: Edelbrock Musi/Victor 24 Degree CNC-Machined Cylinder Heads
HP Direct Part Number: EDL-61409
UPC: 085347614097
Combustion Chamber Volume (cc): 119
Intake Runner Volume (cc): 367cc/377cc
Exhaust Runner Volume (cc): 128cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Solid roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.300 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Raised
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.900 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.880 in.
Outside Diameter of Outer Spring (in.): 1.635 in.
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 24
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
