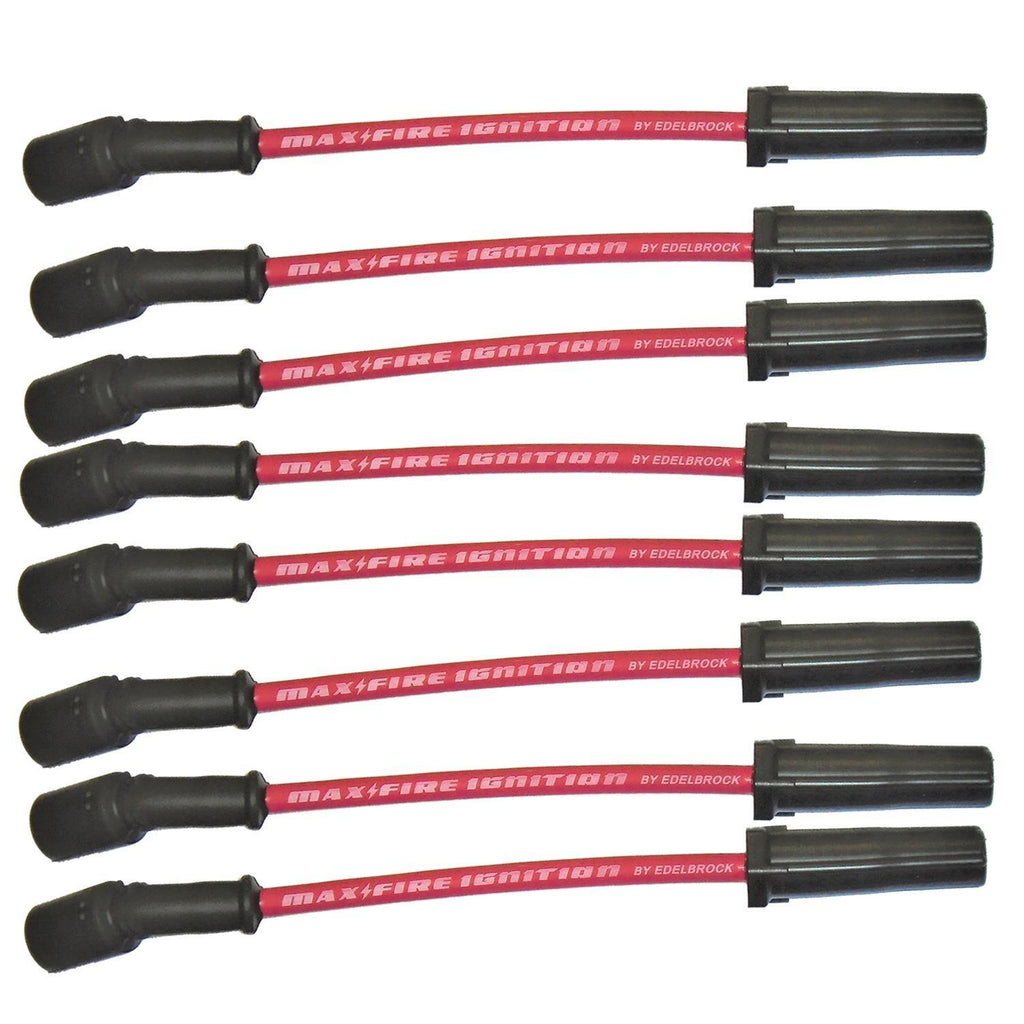

Edelbrock Max-Fire Ultra-Spark 50 Spark Plug Wire Sets 22717

Edelbrock Max-Fire Ultra-Spark 50 spark plug wire sets deliver maximum power output. Engineered for high performance engines that need all the voltage they can get, Max-Fire wires are constructed of leads that transport a low 50 ohms of resistance per ft. for maximum EMI/RFI noise suppression. Each Ultra-Spark starts with a spiral wound Ferro-magnetic KEVLAR ® core wrapped with a suppression layer, stainless steel conductive winding, and a latex silicone layer. This is followed by an EPDM inner insulation topped with braid tape and a tempered 8.5mm silicone outer jacket that won't crack or shrink, and is resistant to chemicals. The wires are finished with silicone plug boots featuring high-quality snap and lock-style terminals for easy installation. Give your engine the most power possible with Edelbrock Max-Fire Ultra-Spark 50 spark plug wire sets.
Brand: Edelbrock
Manufacturer's Part Number: 22717
Part Type: Spark Plug Wire Sets
Product Line: Edelbrock Max-Fire Ultra-Spark 50 Spark Plug Wire Sets
HP Direct Part Number: EDL-22717
UPC: 085347227174
Assembled: Yes
Distributor Boot Color: Black
Distributor Boot Material: Silicone
Spark Plug Boot Ends: Eight 180 degree straight
Spark Plug Boot Color: Black
Spark Plug Boot Material: Silicone
Diameter (mm): 8.50mm
Wire Color: Red
RFI Suppression: Yes
Coil Wire Included: No
Conductor Style: Spiral core
Spark Plug Wire Resistance: 50 ohms/ft.
Quantity: Sold as a set.
Notes: Coil boots are 45-degrees. Wires 1-7 are 12.500 in. long and wire number 8 is 13.000 in. long.
Special Attention: For use on truck applications only. Wires do not have aluminum heat shield.
