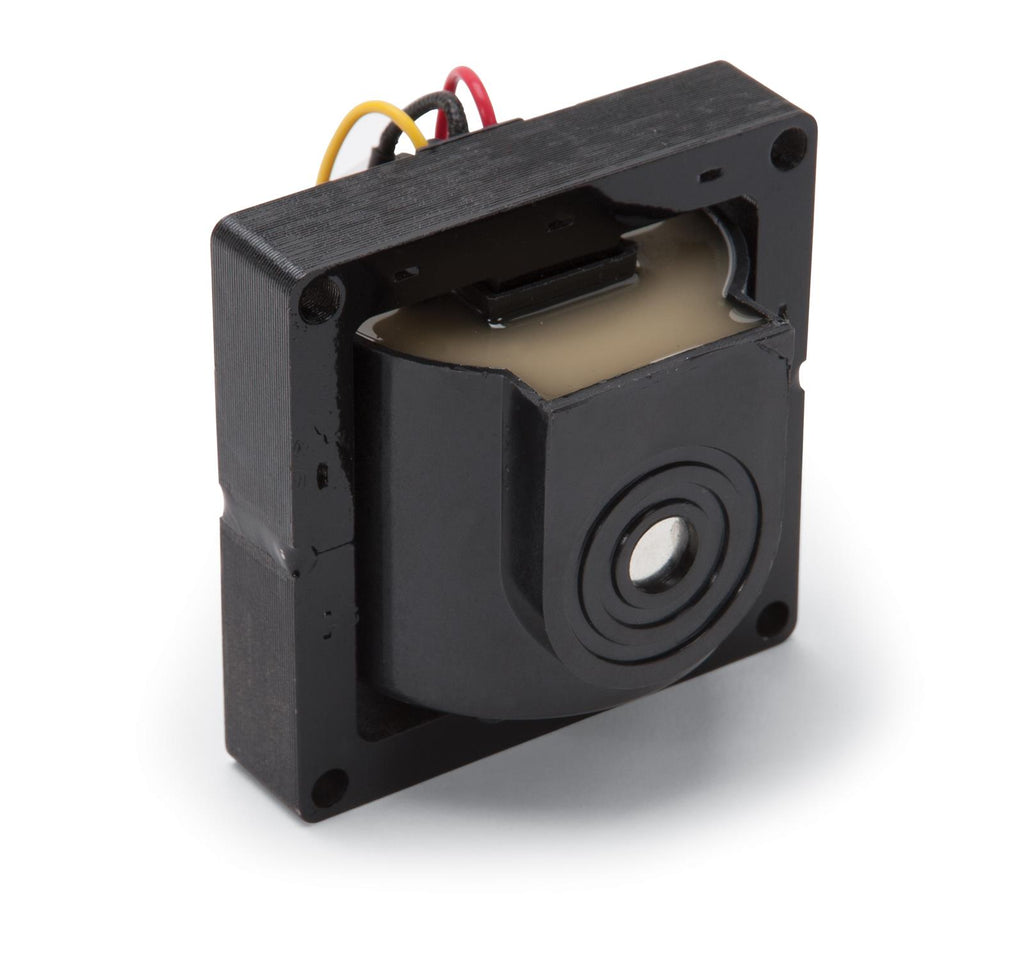

Edelbrock Max-Fire Ignition Coils 22743

Edelbrock Max-Fire ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. Available in a various finishes and styles, Edelbrock Max-Fire ignition coils are what you need to make your performance engine build complete.

Brand: Edelbrock
Manufacturer's Part Number: 22743
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Ignition Coils
HP Direct Part Number: EDL-22743
UPC: 085347227433
Coil Style: In-cap
Primary Resistance: 0.300 ohms
Coil Internal Construction: Epoxy
Coil Wire Attachment: HEI in-cap
Coil Color: Black
Maximum Voltage: 48,000 V
Turns Ratio: 134:1
Secondary Resistance: 8.80K ohms
Inductance: 4.40 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Square
Height (in.): 4.000 in.
Length (in.): 4.000 in.
Width (in.): 3.000 in.
Quantity: Sold individually.
Notes: This Max-Fire Coil-In-Cap design is for use with GM HEI coil in-cap distributors with red and yellow primary wires. This coil is recommended for use with high performance engines requiring maximum voltage. Designed to work with aftermarket performance 4-pin modules and high performance electronic controls.
