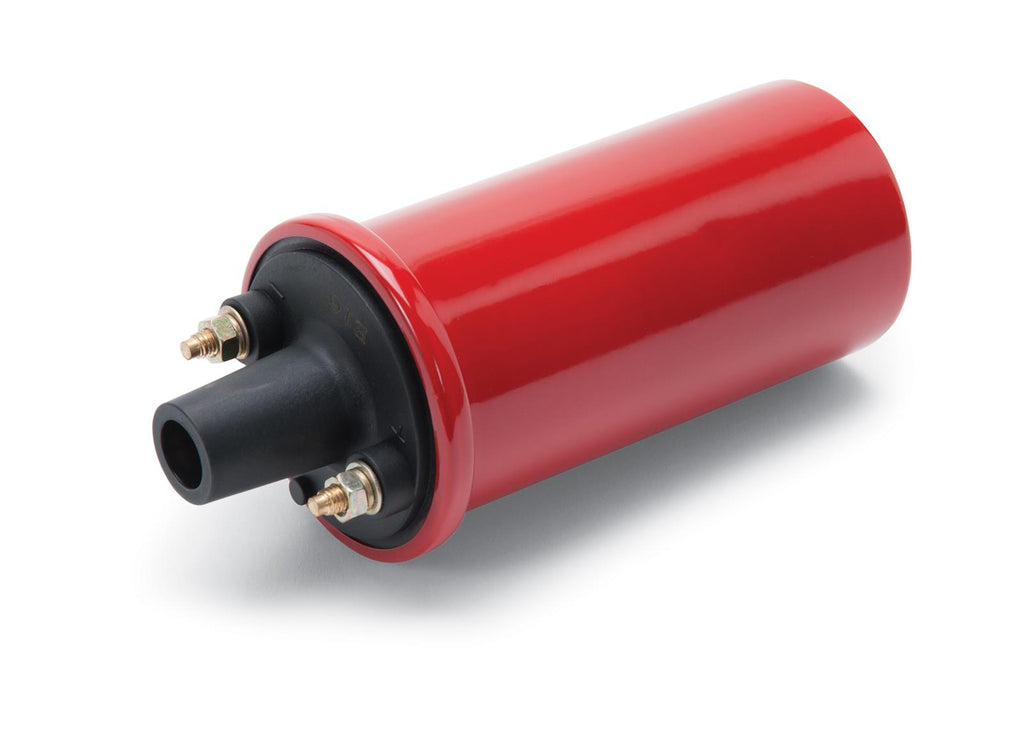

Edelbrock Max-Fire Ignition Coils 22741

Edelbrock Max-Fire ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. Available in a various finishes and styles, Edelbrock Max-Fire ignition coils are what you need to make your performance engine build complete.

Brand: Edelbrock
Manufacturer's Part Number: 22741
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Ignition Coils
HP Direct Part Number: EDL-22741
UPC: 085347227419
Coil Style: Remote mount
Primary Resistance: 0.450 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Female/Socket
Coil Color: Red
Maximum Voltage: 45,000 V
Turns Ratio: 116:1
Secondary Resistance: 8.00K ohms
Inductance: 4.50 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: This Max Fire coil is designed for vehicles that have been converted to a electronic breaker-less distributor where a traditional oil filled can style coil is preferred for the correct vintage appearance. Designed for use with Ready to Run distributors and 6 series CDI ignition boxes.
