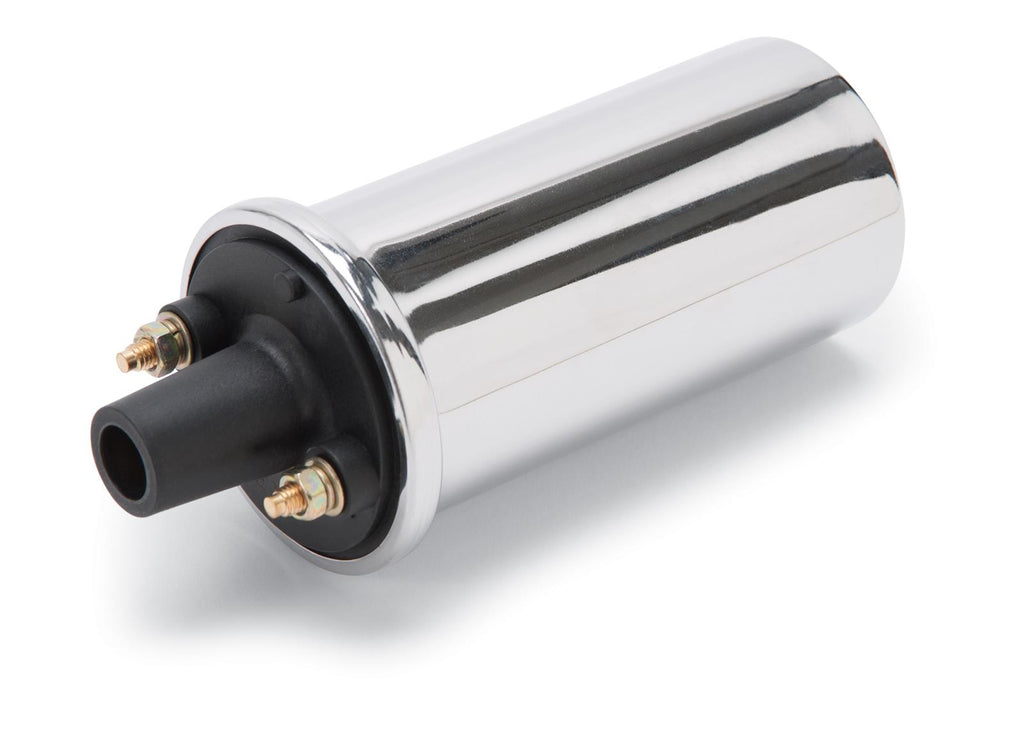

Edelbrock Max-Fire Ignition Coils 22740

Edelbrock Max-Fire ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. Available in a various finishes and styles, Edelbrock Max-Fire ignition coils are what you need to make your performance engine build complete.

Brand: Edelbrock
Manufacturer's Part Number: 22740
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Ignition Coils
HP Direct Part Number: EDL-22740
UPC: 085347227402
Coil Style: Remote mount
Primary Resistance: 0.400 ohms
Coil Internal Construction: Oil-filled
Coil Wire Attachment: Male/HEI
Coil Color: Chrome
Maximum Voltage: 40,000 V
Turns Ratio: 65:1
Secondary Resistance: 5.00K ohms
Inductance: 6.50 mH
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Diameter (in.): 2.125 in.
Height (in.): 6.000 in.
Quantity: Sold individually.
Notes: This Max Fire coil is designed to work specifically with the high output inductive storage ignition module in the RTR distributors. The heavy gauge windings were engineered to ensure maximum power at higher RPM levels. Also works with 6 Series CDI ignition boxes.
