Edelbrock Max-Fire Distributors 22753

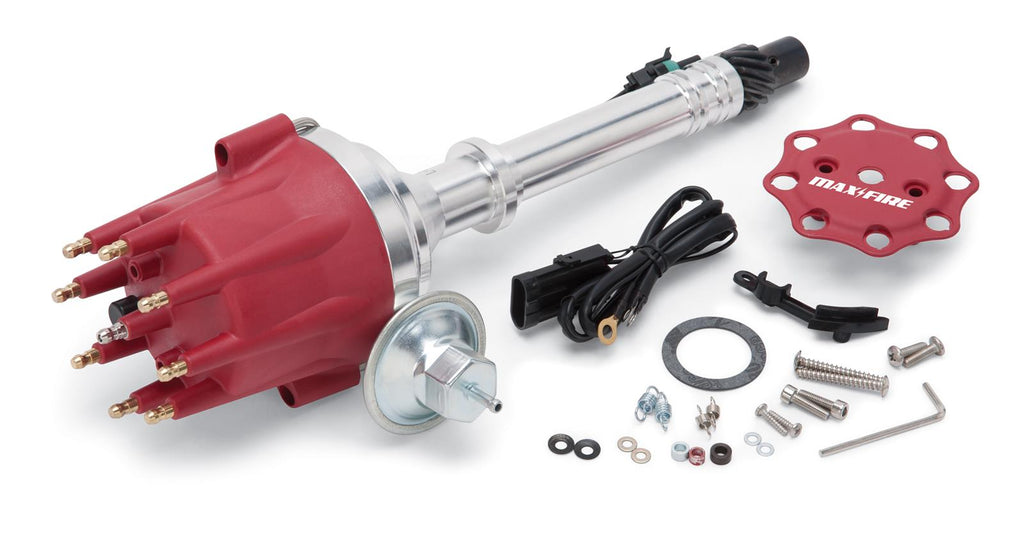

Edelbrock Max-Fire distributors are ready to run right out of the box—and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. Max-Fire kits feature precision machining for a perfect fit, along with a simple 3-wire hook-up for an easy installation (with no need to run an external ignition control box). The centerless ground shaft utilizes an upper sealed roller bearing with an extra-long lower bronze Oil-Lite bushing for smooth operation. The high-output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. (Edelbrock also recommends a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's.) Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. Order the model recommended for your year/make and engine application.Brand: Edelbrock
Manufacturer's Part Number: 22753
Part Type: Distributors
Product Line: Edelbrock Max-Fire Distributors
HP Direct Part Number: EDL-22753
UPC: 085347227532
Distributor Cap Included: Yes
Distributor Cap Style: Male/HEI
Distributor Cap Type: Small cap
Ignition Coil Included: No
Ignition Module Included: Yes
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and mechanical
Ignition Box Required: No
Mechanical Tach Drive: No
Slip Collar: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Distributor Cap Color: Red
Housing Material: Aluminum
Housing Finish: Natural
Marine Use: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Distributors have O-ring grooves for machined blocks, 3-wire pigtail lead, vacuum advance lock out, mechanical advance springs, bushings and hardware.
