Description

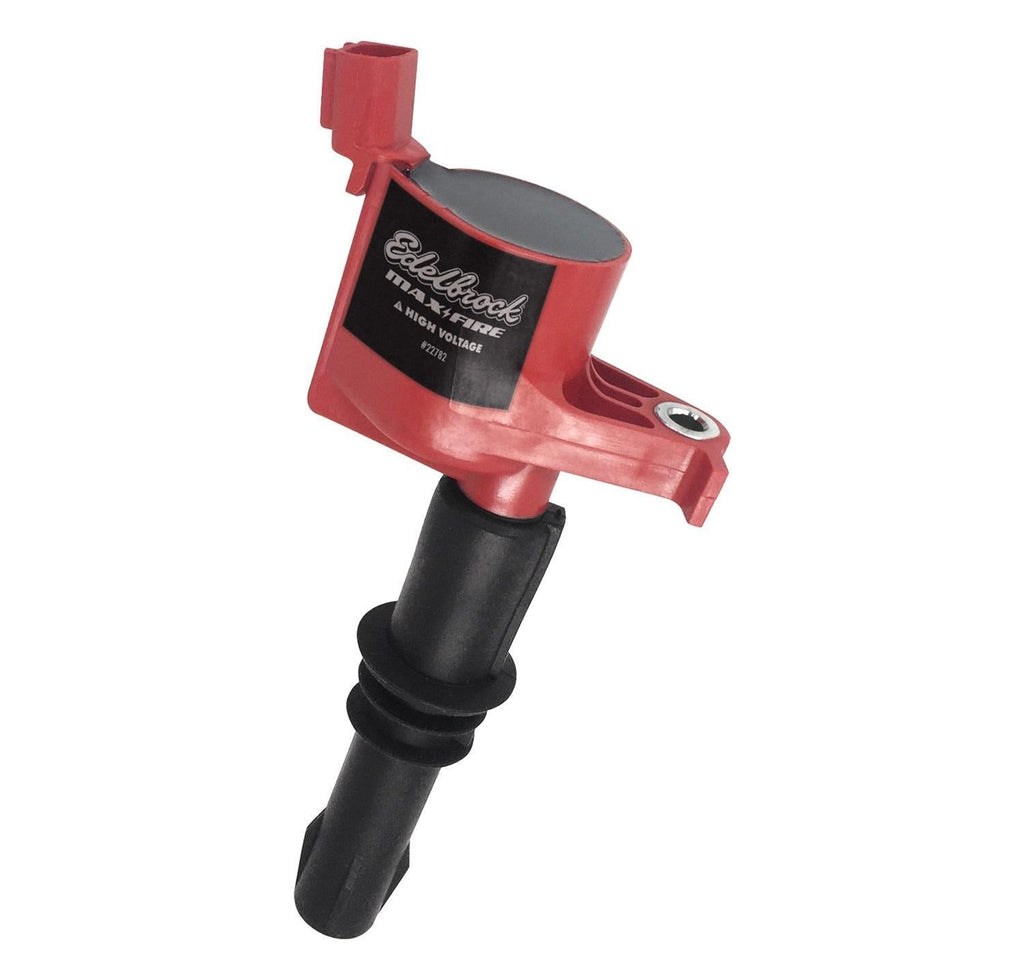

Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. The coils are sealed with a high temperature epoxy for shock and vibration resistance—as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack recommended for your vehicle.Brand: Edelbrock
Manufacturer's Part Number: 22782
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Coil On Plug Ignition Coils
HP Direct Part Number: EDL-22782
UPC: 085347227822
Coil Style: Coil pack
Coil Internal Construction: Silicone
Coil Color: Black/Red
Maximum Voltage: 28,000 V
Turns Ratio: 68:1
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Quantity: Sold individually.
Special Attention: Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil.
Manufacturer's Part Number: 22782
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Coil On Plug Ignition Coils
HP Direct Part Number: EDL-22782
UPC: 085347227822
Coil Style: Coil pack
Coil Internal Construction: Silicone
Coil Color: Black/Red
Maximum Voltage: 28,000 V
Turns Ratio: 68:1
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Round
Quantity: Sold individually.
Special Attention: Fits later model 3-valve engines with 16mm spark plugs. Coils feature a 4 in. long black boot and is marked with 8L3E on top of the coil.
