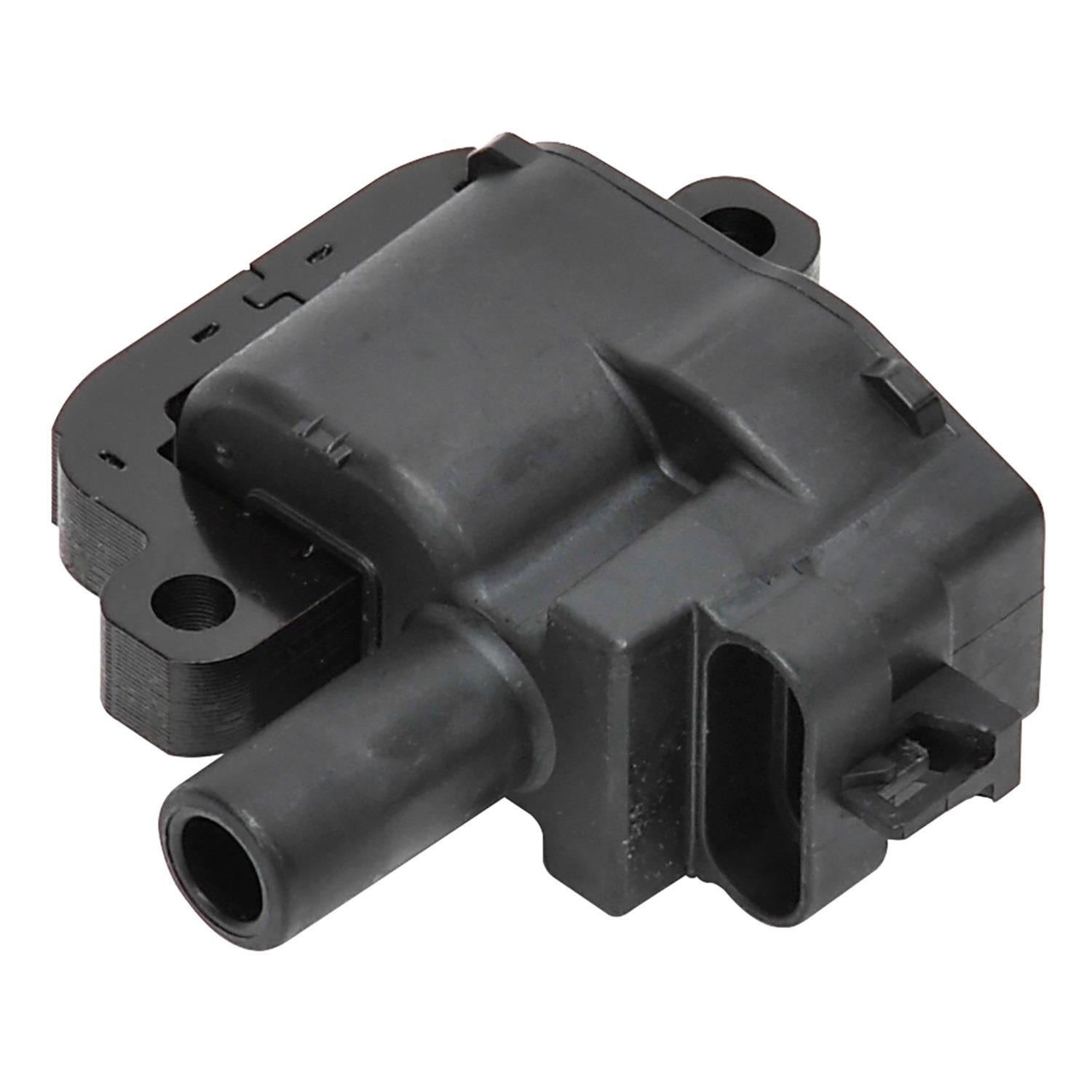

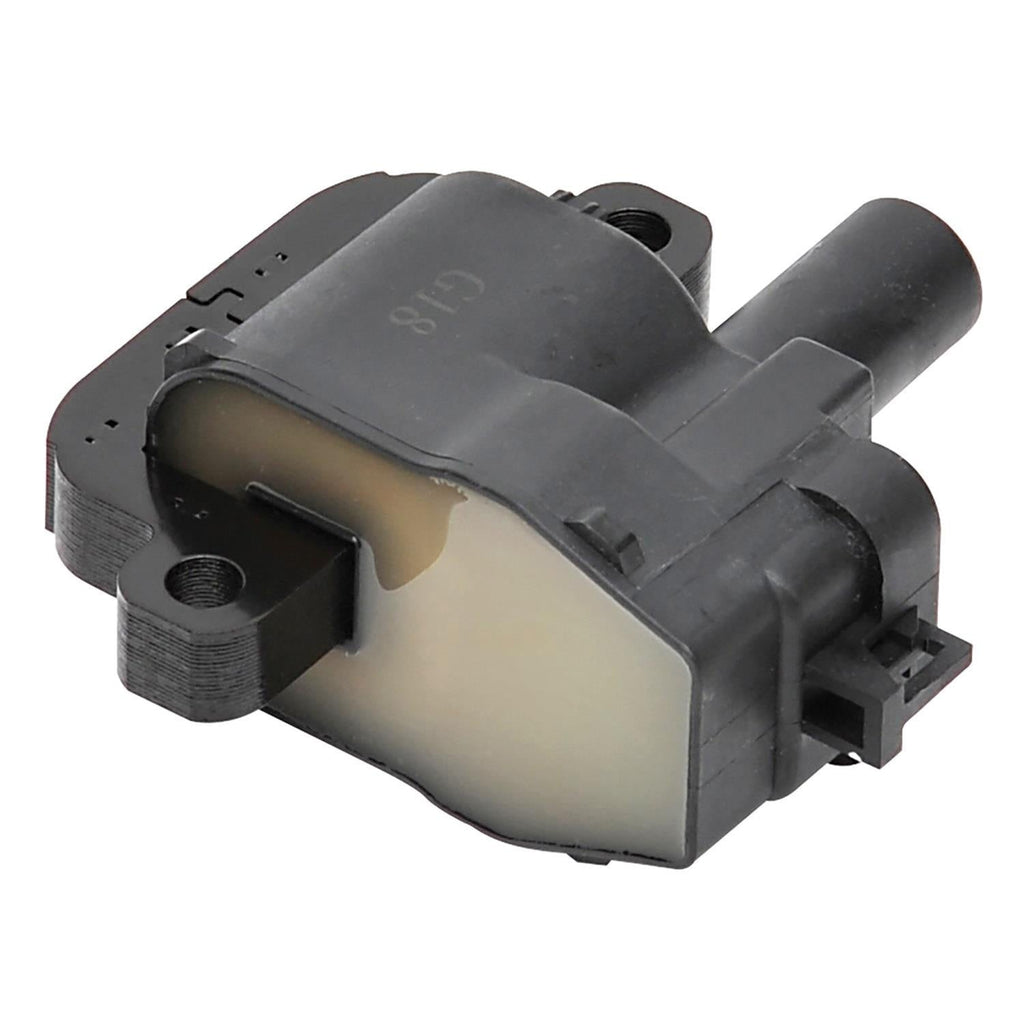

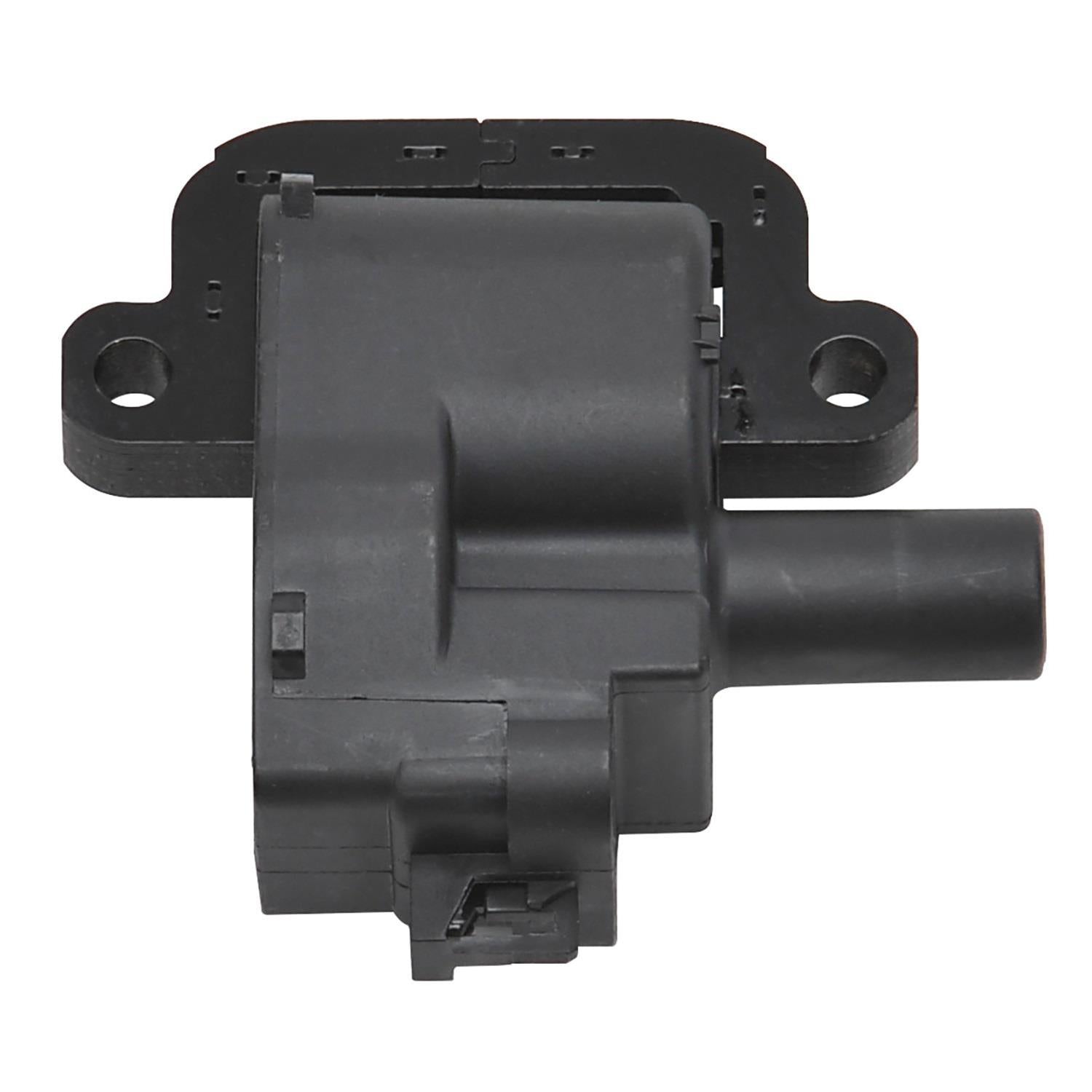

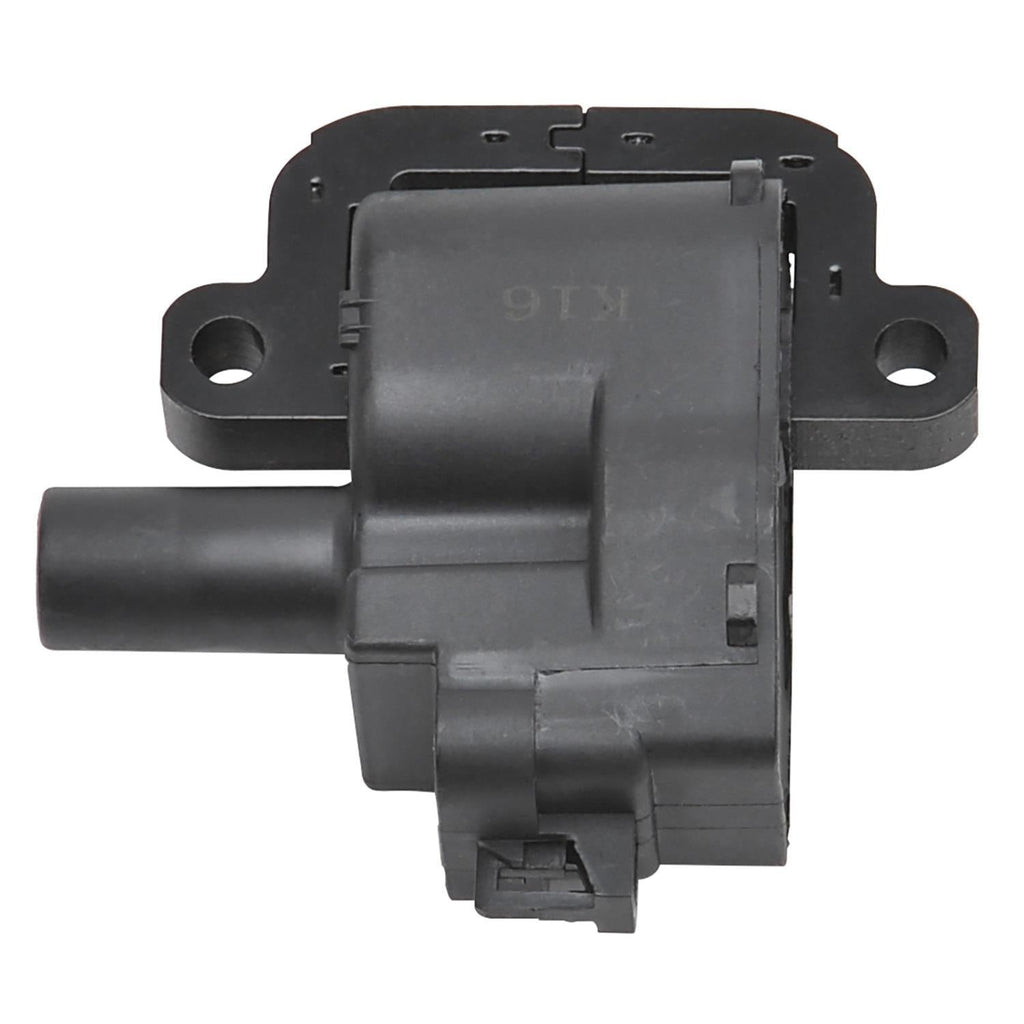

Edelbrock Max-Fire Coil On Plug Ignition Coils 22745

Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. They're ideal for use with turbocharged and supercharged applications or engines that have been converted to E85 fuel. The coils are sealed with a high temperature epoxy for shock and vibration resistance—as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise; while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack recommended for your vehicle.Brand: Edelbrock
Manufacturer's Part Number: 22745
Part Type: Ignition Coils
Product Line: Edelbrock Max-Fire Coil On Plug Ignition Coils
HP Direct Part Number: EDL-22745
UPC: 085347227457
Coil Style: Coil pack
Coil Internal Construction: Epoxy
Coil Wire Attachment: Female/Socket
Coil Color: Black
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Shape: Rectangular
Quantity: Sold individually.
Notes: Be sure to check your stock coils on your truck or van to make sure they physically match. GM offered several styles of LS1 coils that are not all compatible with each other.
