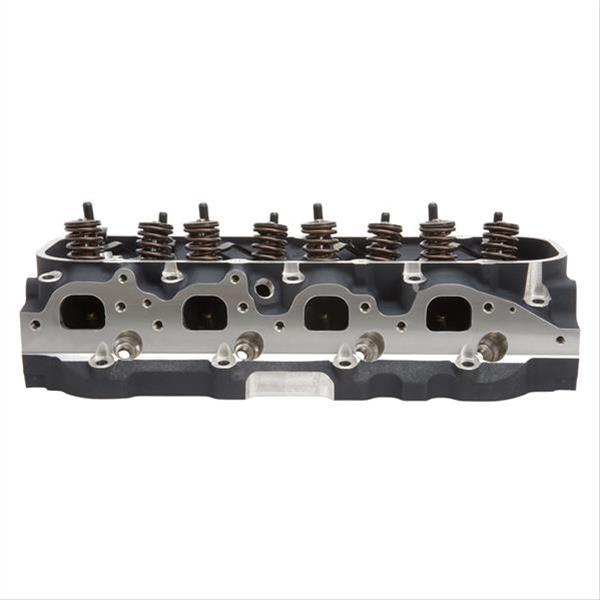

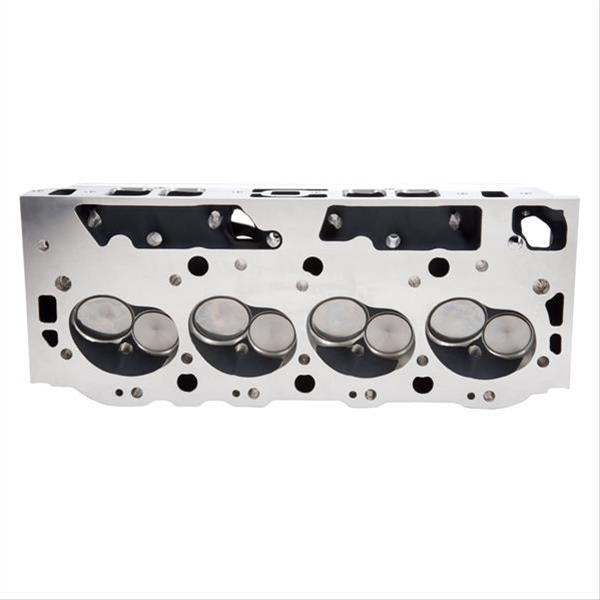

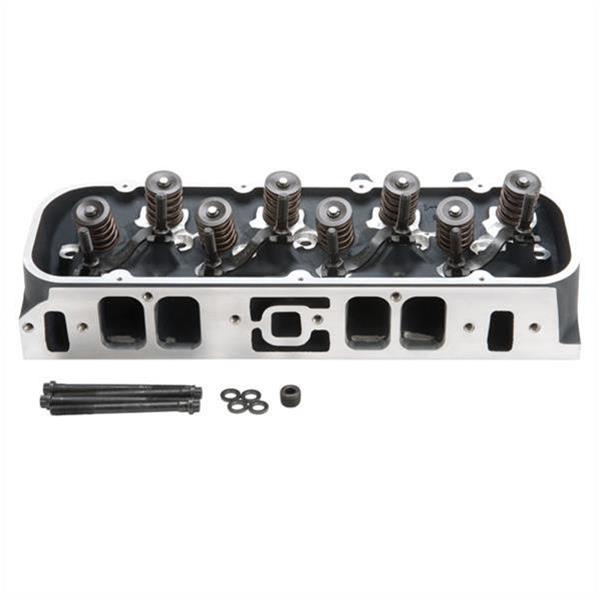

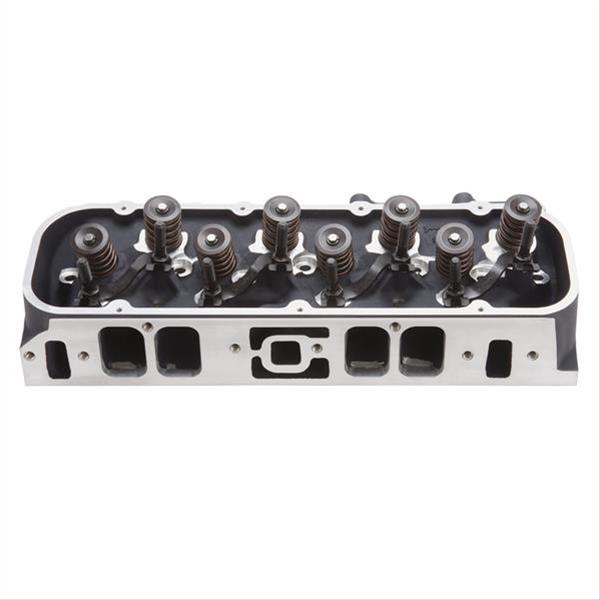

Edelbrock Marine-Duty Performer RPM 454 Cylinder Heads 61555

Designed for 396-502 c.i.d. big block Chevy engines, these Edelbrock cylinder heads include heavy-duty exhaust valves that provide the added durability needed for marine applications, and have one-piece, stainless steel intake valves with hardened tips and swirl-polished heads. The high-velocity flow capabilities of Edelbrock Performer RPM cylinder heads provide increased torque across a wide rpm range that's ideal for marine use. They're cast from A356 aluminum and heat-treated to T6 specs. Their oval-port heads have 110cc chambers and their rectangular port heads have 118cc chambers. Both the oval and rectangular port heads are hard-anodized to protect the aluminum in the harsh marine environments.Brand: Edelbrock
Manufacturer's Part Number: 61555
Part Type: Cylinder Heads
Product Line: Edelbrock Marine-Duty Performer RPM 454 Cylinder Heads
HP Direct Part Number: EDL-61555
UPC: 085347615551
Combustion Chamber Volume (cc): 118
Intake Runner Volume (cc): 315cc
Exhaust Runner Volume (cc): 110cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Hydraulic roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.250 in.
CNC-Machined Combustion Chamber: No
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.890 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.700 in.
Outside Diameter of Outer Spring (in.): 1.500 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 26
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Black
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold individually.
Notes: Sold with valves only to allow for valve spring choices. Marine applications only.
