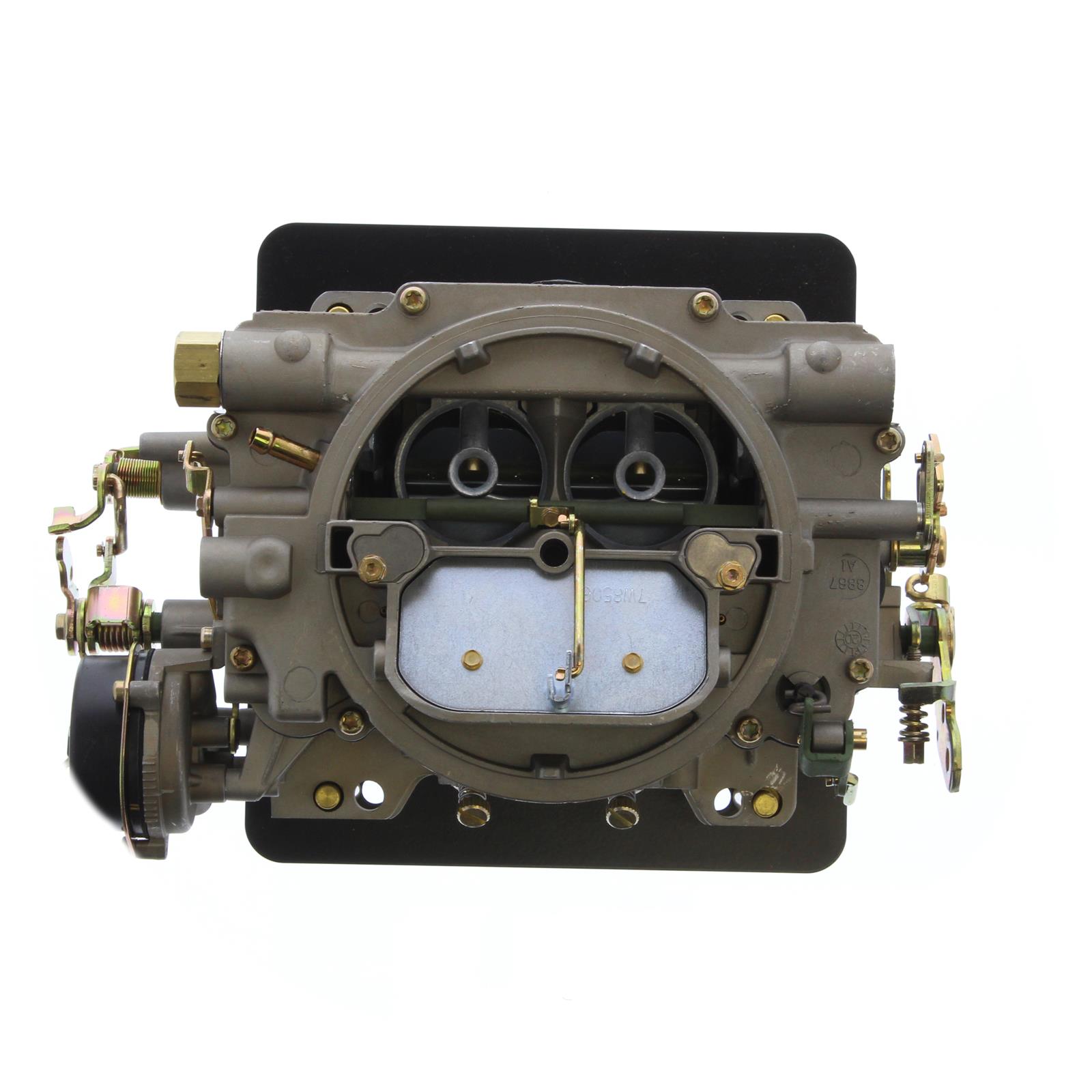

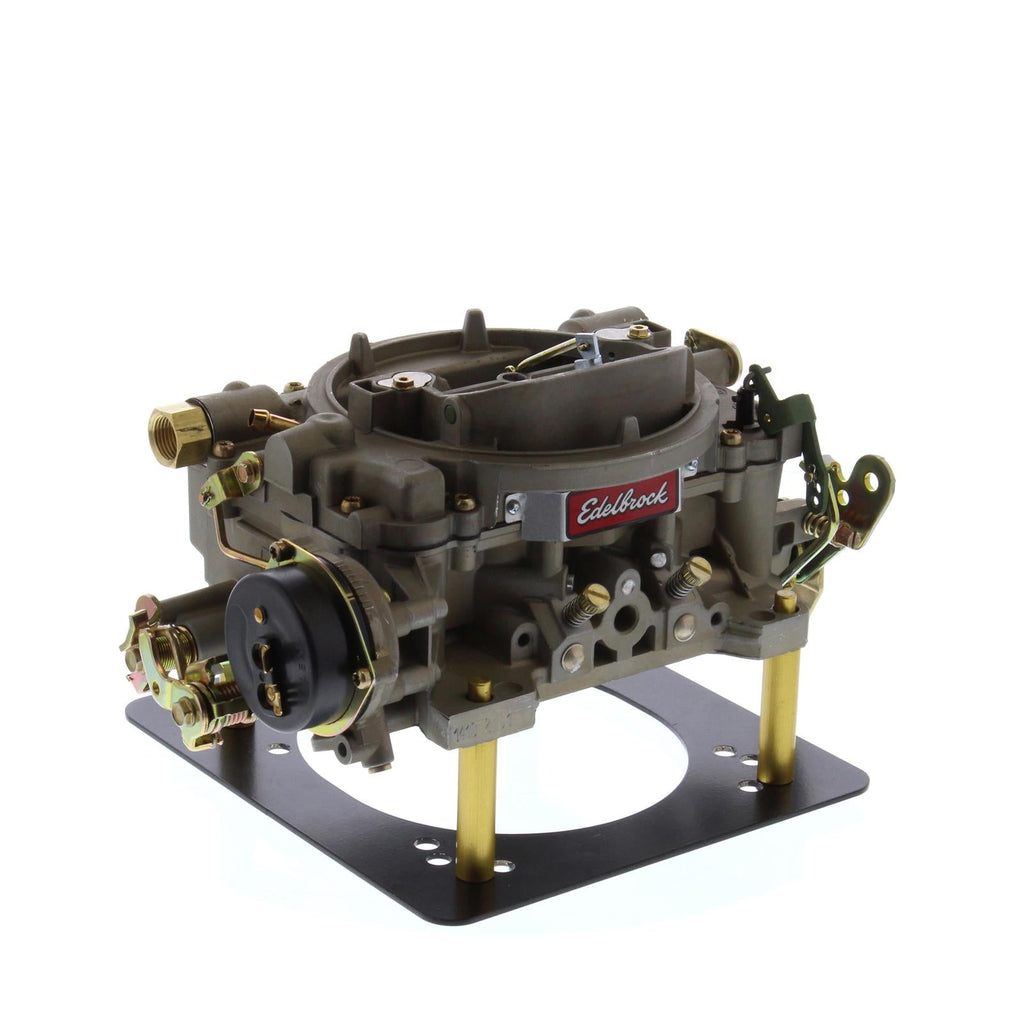

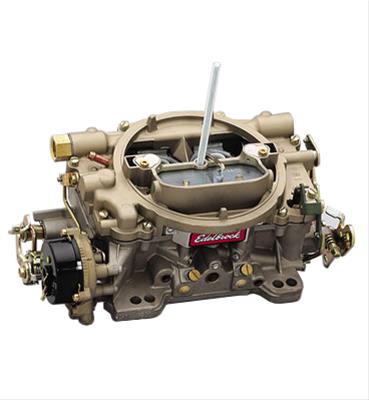

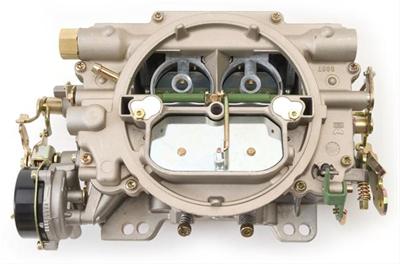

Edelbrock Marine Carburetors 1410

Designed and calibrated from Edelbrock for use in marine applications, these Edelbrock carbs comply with U.S. Coast Guard safety standards. Cast surfaces are protected by a Chromate conversion coating which is used as a corrosion inhibitor. Other features include modified bowl venting, specially designed throttle shafts, an accelerator pump seal, a 3/8 in. inverted flare fuel inlet fitting, tube in airhorn for fuel pump vent, a 5 1/8 in. flame arrestor flange, a universal throttle lever, and revised secondaries for improved transient performance. Also included with every Edelbrock carburetor are instructions for installation, set up, and basic tuning.Brand: Edelbrock
Manufacturer's Part Number: 1410
Part Type: Carburetors
Product Line: Edelbrock Marine Carburetors
HP Direct Part Number: EDL-1410
UPC: 085347014101
CFM: 750
Fuel Category: Gasoline
Remanufactured: No
Number of Barrels: 4
Carburetor Flange: Square bore
Choke: Electric
Secondary Type: Mechanical
Fuel Inlet: Single
Carburetor Color: Gold iridited
Ford Kickdown: No
Throttle Linkage Type: Universal
Carburetor Height (in.): 3.250 in.
Quantity: Sold individually.
Notes: Mid marine performance. By design, this does not have a fast idle adjustment screw. Please see the charts and guides tab for a comparison of square bore vs spread bore.
