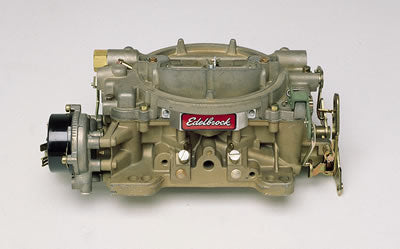

Edelbrock Marine Carburetors 1409

This 600 cfm, 4-barrel, square bore, electric choke Edelbrock Performer carburetor is calibrated specifically for marine applications, and complies with U.S. Coast Guard safety standards. This single-inlet, gold-iridited carb features a corrosion inhibiting finish. This Edelbrock marine carburetor also features modified bowl venting, specially designed throttle shafts, an accelerator pump seal, a 3/8 in. inverted flare fuel inlet fitting, tube-in airhorn for fuel pump vent, a 5 1/8 in. flame arrestor flange, a universal throttle lever, and revised secondaries for improved transient performance.Brand: Edelbrock
Manufacturer's Part Number: 1409
Part Type: Carburetors
Product Line: Edelbrock Marine Carburetors
HP Direct Part Number: EDL-1409
UPC: 085347014095
CFM: 600
Fuel Category: Gasoline
Remanufactured: No
Number of Barrels: 4
Carburetor Flange: Square bore
Choke: Electric
Secondary Type: Mechanical
Fuel Inlet: Single
Carburetor Color: Gold iridited
Ford Kickdown: No
Throttle Linkage Type: Universal
Carburetor Height (in.): 3.250 in.
Quantity: Sold individually.
Notes: Designed for marine performance in small-block V8 engines with a variety of manifolds including Edelbrock Performer, Performer RPM, RPM Air-Gap, Torker II and other brands of similar design. Also ideal for Chevy 4.3L V6 engines with a Performer manifold (see Manifold Section) and Calibration Kit #1485. By design, this does not have a fast idle adjustment screw. Please see the charts and guides tab for a comparison of square bore vs spread bore.
